Flame Retardant RG11 A/U Coaxial Cables
APPLICATION
RG11 A/U cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where continued functionality is required during a fire situation. Due to tde zero halogen low smoke construction, tdis cable is ideal for use in public, commercial and industrial environments.STANDARDS
Basic design adapted to MIL-C-17
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation(Vertically-mounted bundled wires& cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.

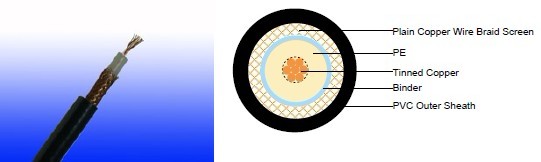

CABLE CONSTRUCTION
Conductors: Tinned copper wire, stranded according to IEC(EN) 60228 class 2.Insulation: Low density PE. Overall
Screen: Plain copper wire braid
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request.
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C - +70°C
Temperature Range During Installation (Mobile State): -5°C - +60°C
Minimum Bending Radius: 8 X Overall Diameter
Electrical Properties
| IMPEDANCE | 75±5Ω |
| CAPACITANCE | 67 NF/KM |
| Velocity ratio(%) | 66 |
| Insulation resistance | >2000 Mohm.Km |
| Shield coverage | 97% |
| DC resistance | |
| Inner conductor | 20.5 Ω/km |
| Outer conductor | 4.5 Ω/km |
Attenuation
| Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100ft) |
| 50 | 4.2 | 1.28 |
| 100 | 6.2 | 1.89 |
| 200 | 9.3 | 2.84 |
| 400 | 13.8 | 4.21 |
| 500 | 15.5 | 4.73 |
| 600 | 17.1 | 5.21 |
| 860 | 20.1 | 6.13 |
| 1000 | 23.4 | 7.13 |
Return Loss
| Frequency(MHz) | Return Loss (dB) |
| 30-300 MHz | >30dB |
| 300-600 MHz | >27dB |
| 600-900 MHz | >25dB |
CONSTRUCTION PARAMETERS
| Cable Code | Conductor Diameter | Nominal Insulation Diameter | Nominal Screen No.x Diameter | Nominal Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|
| mm | mm | No. x mm | mm | kg/km | |
| FGD RG11 A/U | 7 x 0.40 | 7.25 ± 0.18 | 192 x 0.18 | 10.3 ± 0.18 | 150 |
