FAA L-824 Type C Shielded 5kV
Applications
FAA L-824 Type C Shielded 5kV cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational
Standards
FAA AC 150 / 5345-7E
FAA L-824 Type C
ICEA S-93-639 / NEMA WC74

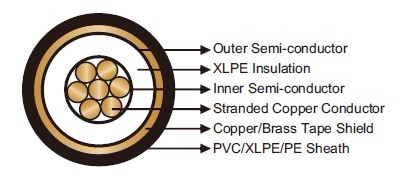

Construction
Conductor: Stranded bare or tinned copper.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Semi conducting tape or extruded.
Shield: Copper or brass tape(s). Tinned copper wire braid可选
Sheath: PVC. PE/XLPE可选
Technical Data
| Rated Voltage Uo/U (Um) | 5kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | static: 10×OD; dynamic: 20×OD |
| Impacted Resistant | Yes |
| Weather Resistant | Yes |
Dimensions and Weight
| Construction | No. of Strand | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight | |||
|---|---|---|---|---|---|---|---|
| No.× AWG | - | mm | inches | mm | inches | kg/km | lbs/kft |
| 1×6mm² | 7/19 | 2.3 | 0.09 | 11.0 | 0.43 | 180 | 121 |
| 1×8 | 7/19 | 2.3 | 0.09 | 14.3 | 0.565 | 298 | 200 |
| 1×6 | 7/19 | 2.3 | 0.09 | 15.4 | 0.605 | 366 | 246 |
| 1×4 | 7/19 | 2.3 | 0.09 | 17.0 | 0.668 | 513 | 345 |
