400Hz Airport Cables 7-core With Concentric Copper Wire Shield & Control Wire
Applications
400Hz Airport Cables 7-core With Concentric Copper Wire Shield & Control cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

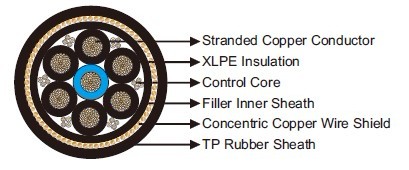

Construction
Conductor: Stranded bare copper conductor,
Class 6 to VDE 0295/IEC 60228.
Insulation: XLPE
Control Core: 1mm² stranded copper conductor with PVC insulation.
Inner Sheath: Filler
Shield: Concentric copper conductor (25mm²).
Outer Sheath: TP rubber
Technical Data
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -55℃~+85℃ |
| Minimum Bending Radius | static: 8×OD; dynamic: 12×OD |
| Flame Retardant | Yes |
Dimensions and Weight
| Construction | Nominal Diameter of Power Core | Nominal Diameter of Control Core | Nominal Diameter Under Shield | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | mm | kg/km |
| 7×35+6×(4×1) | 10.5 | 2.1 | 40.8 | 42.8 | 3000 |
