FL2XCY
Applications
FL2XCY cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
Standards
ENV 50213IEC 50602-2

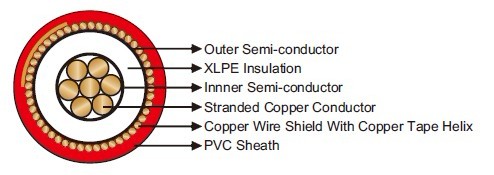

Construction
Conductor: Stranded bare copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Concentric layer of bare copper wires, counter helix of a copper tape.Sheath: PVC.
Technical Data
| Rated Voltage Uo/U (Um) | 6/10kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | 15×OD |
| Flame Retardant | Yes |
Impacted Resistant |
Yes |
| Weather Resistant | Yes |
| Oil Resistant | Yes |
Dimensions and Weight
| Construction | Nominal Insulation Thickness | Nominal Shield Cross Section | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm² | mm | mm | kg/km |
| 1×6 | 3.5 | 6 | 1.4 | 15.6 | 420 |
