H07RN-F
Applications
H07RN-F cables are used for connection between transformers and Airfield Lighting Equipment.
Standards
NF C 32-102-4
HD 22-4

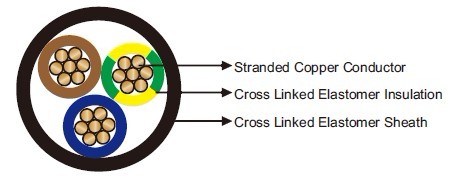

Construction
Conductor: Stranded bare copper.
Insulation: Special cross linked elastomer.
Technical Data
| Rated Voltage Uo/U (Um) | 450/750V |
| Maximum Conductor Temperature | 85℃ |
| Short Circuit Temperature | 200℃ |
| Operating Temperatures | -20℃~+85℃ |
| Minimum Bending Radius | static: 4×OD; dynamic: 8×OD |
| Impacted Resistant | Yes |
| Weather Resistant | Yes |
| Oil Resistant | Yes |
Dimensions and Weight
| Construction | Nominal Insulation Thickness | Nominal Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | mm | kg/km |
| 1×2.5 | 0.9 | 1.4 | 6.3 | 7.9 | 66 |
| 1×4 | 1.0 | 1.5 | 7.2 | 9.0 | 94 |
| 1×6 | 1.0 | 1.6 | 7.9 | 9.8 | 109 |
| 2×2.5 | 0.9 | 1.7 | 10.2 | 13.1 | 161 |
| 2×4 | 1.0 | 1.8 | 11.8 | 15.0 | 238 |
| 2×6 | 1.0 | 2.0 | 13.1 | 17.0 | 279 |
| 3×2.5 | 0.9 | 1.8 | 10.9 | 14.0 | 195 |
| 3×4 | 1.0 | 1.5 | 12.7 | 16.2 | 290 |
| 3×6 | 1.0 | 2.0 | 14.1 | 18.0 | 346 |
