RG7H1R for Airport Lighting cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
ENV 50213

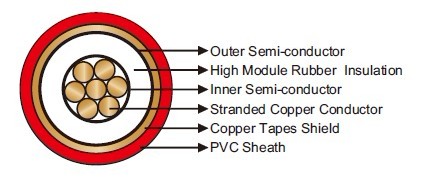

Conductor: Compact stranded bare copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: High module rubber compound, G7 type.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Bare copper tapes.
Sheath: PVC.
| Rated Voltage Uo/U (Um) | 3.6/6kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | 0℃~+90℃ |
| Minimum Bending Radius | 15×OD |
| Flame Retardant | Yes |
| Construction | Nominal Insulation | Minimum Shield | Nominal SheathThickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | mm | kg/km |
| 1×10 | 2.3 | 0.075 | 1.4 | 14.0 | 305 |
