Split Concentric Halogen Free 400Hz Airport Cable
Applications
Split Concentric Halogen Free 400Hz Airport cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

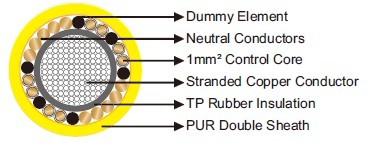

Construction
Conductor: Stranded copper conductor, Class 6 /Class 5 to VDE 0295/IEC 60228.
Insulation: TP rubber.
Control Core: 1mm² stranded copper conductor with XLPE insulation.
Cable Assembling: Helical concentric stranding of bare neutral conductors and control wire
separated by dummies.
Sheath: 2 layer PUR.
Technical Data
Rated Voltage Uo/U (Um) |
600/1000V |
Operating Temperatures |
-40℃~+85℃ |
Minimum Bending Radius |
static: 6×OD; dynamic: 8×OD |
Flame Retardant |
Yes |
Abrasion Resistant |
Yes |
UV Resistant |
Yes |
Oil Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Diameter |
Nominal Diameter |
Nominal Diameter |
Nominal Overall |
Nominal |
|---|---|---|---|---|---|
No. ×mm² |
mm |
mm |
mm |
mm |
kg/km |
1×70+10×2.5+8×1 |
13.8 |
2.1 |
17.8 |
22.2 |
1300 |
