400Hz Airport Cables 7-core With Aluminium Wire Armour
Applications
400Hz Airport Cables 7-core With Aluminium Wire Armour cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
BS 6724
BS 5467

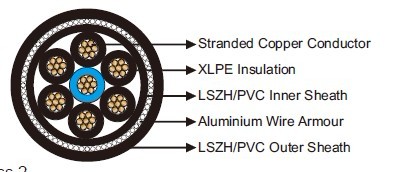

Construction
Conductor: Stranded bare copper conductor, Class 2.
Insulation: XLPE.
Inner Sheath: LSZH. PVC可选
Armour: Aluminium wire armour.
Outer Sheath: LSZH. PVC可选
Technical Data
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | static: 9×OD; dynamic: 12×OD |
| Halogen Free | Yes |
| No Corrosive & Toxic Gases | Yes |
| Low Smoke | Yes |
Dimensions and Weight
| Construction | Nominal Diameter of Single Core | Nominal Diameter Under Armour | Nominal Diameter Over Armour | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | mm | kg/km |
| 7×35 | 8.6 | 30.0 | 32.4 | 36.6 | 3355 |
