400Hz Airport Cables Single Core With Control Wires
400Hz Airport Cables Single Core With Control Wires are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
VDE 0295

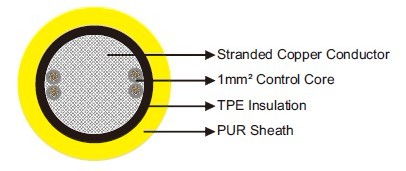

Conductor: Stranded copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation: TPE. XLEPR/PUR
Control Core: 1mm² stranded copper conductor with TPE insulation. XLPE/Polyolefin can be
offered upon request
Sheath: PUR.
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | static: 6×OD; dynamic: 7×OD |
| Halogen Free | Yes |
| No Corrosive & Toxic Gases | Yes |
| Flame Retardant | Yes |
| Abrasion Resistant | Yes |
| UV Resistant | Yes |
| Oil Resistant | Yes |
| Construction | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| No. ×mm² | mm | kg/km |
| 1×35+4×1 | 14.0 | 490 |
| 1×50+4×1 | 17.0 | 600 |
| 1×70+4×1 | 18.7 | 800 |
| 1×120+4×1 | 25.0 | 1400 |
