400Hz Airport Cables Single Core
Applications
400Hz Airport Cables Single Core cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

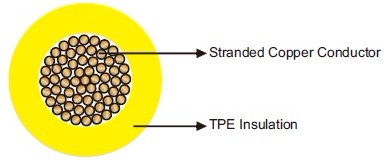

Construction
Conductor: Stranded copper conductor, Class 5
to VDE 0295/IEC 60228.
Insulation: TPE.
Technical Data
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | static: 6×OD; dynamic: 7×OD |
| Halogen Free | Yes |
| Abrasion Resistant | Yes |
| UV Resistant | Yes |
| Oil Resistant | Yes |
Dimensions and Weight
| Construction | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| No. ×mm² | mm | kg/km |
| 1×35 | 11.5 | 430 |
| 1×50 | 12.6 | 665 |
| 1×70 | 14.0 | 910 |
| 1×120 | 23.0 | 1545 |
