FAA L-824 Type C Sheathed 5kV
Applications
FAA L-824 Type C Sheathed 5kV cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational
Standards
FAA AC 150 / 5345-7E
FAA L-824 Type C
ICEA S-93-639 / NEMA WC74

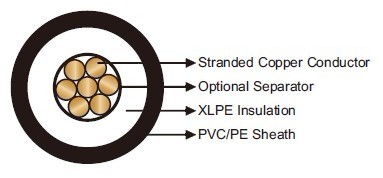

Construction
Conductor: Stranded bare or tinned copper.
Optional Separator: Optional separator or conductor shield be applied
Insulation: XLPE.
Sheath: PVC/PE
Technical Data
| Rated Voltage Uo/U (Um) | 5kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | static: 10×OD; dynamic: 20×OD |
| Impacted Resistant | Yes |
| Weather Resistant | Yes |
Dimensions and Weight
| Construction | No. of Strand | Nominal Insulation Thickness | Nominal InsulationThickness | Nominal Overall Diameter | Nominal Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| No.× AWG | - | mm | inches | mm | inches | mm | inches | kg/km | lbs/kft |
| 1×6mm² | 7 | 2.3 | 0.09 | 0.8 | 0.03 | 9.9 | 0.39 | 180 | 121 |
| 1×8 | 7 | 2.3 | 0.09 | 0.76 | 0.03 | 10.1 | 0.396 | 95 | 64 |
| 1×6 | 7 | 2.3 | 0.09 | 0.76 | 0.03 | 11.0 | 0.433 | 127 | 85 |
| 1×4 | 7 | 2.3 | 0.09 | 1.14 | 0.045 | 13.0 | 0.509 | 164 | 110 |
