Secondary Circuit Cable 450/750V to ADP Specification
Applications
Secondary Circuit Cable 450/750V to ADP Specification cables are used for connection between transformers and Airfield Lighting Equipment.
Standards
ADP (Aéroport de Paris) specification

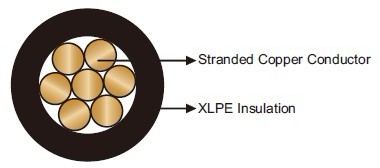

Construction
Conductor: Stranded bare copper.
Insulation: XLPE.
Technical Data
| Rated Voltage Uo/U (Um) | 450/750V |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -20℃~+70℃ |
| Minimum Bending Radius | 5×OD |
| Impacted Resistant> | Ye |
| Weather Resistant | Yes |
Dimensions and Weight
| Construction | Nominal Insulation Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | kg/km |
| 1×4 | 0.7 | 3.5 | 4.5 | 42 |
