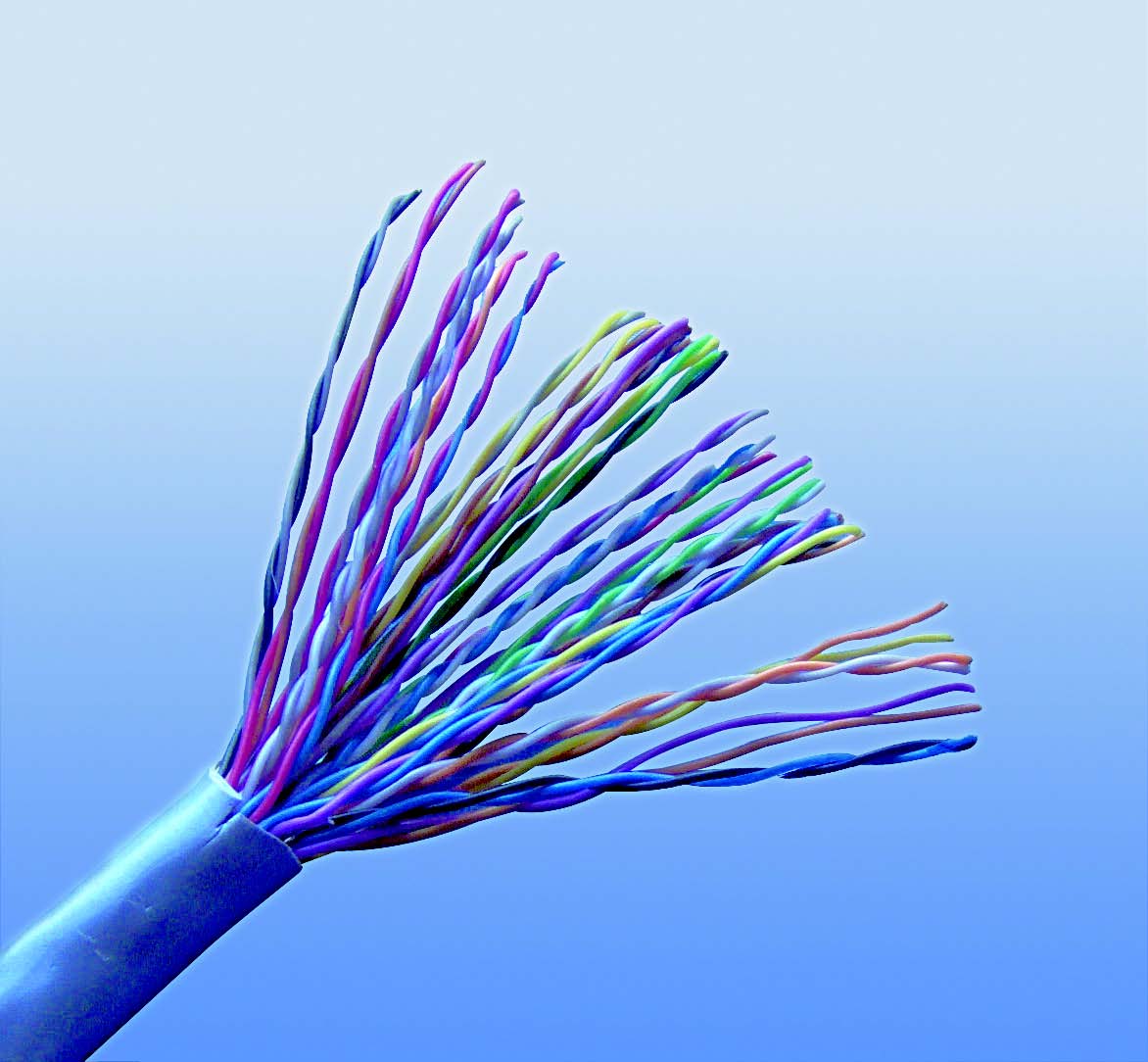

Category 3 Multipair Cable
  |
Applications
10Base-T, 100Base-T4
Standards
ISO/IEC11801, ANSI/TIA/EIA-568-B
Construction
| U/UTP | F/UTP | ||
| Conductor | Material | Solid Plain Copper | Solid Plain Copper |
| Stranding( No./mm ) | 1/0.5 | 1/0.5 | |
| Gauge | 24AWG | 24AWG | |
| Insulation | Material | PE | PE |
| Diameter | 0.86 mm | 0.86 mm | |
| Screen | Material | Nil | Aluminum /Polyester Tape |
| Drain Wire | Material | Nil | 1/0.5 mm |
| Assembly | No of Pairs | 25/50/100 | 25/50/100 |
| Jacket | Material | PE/PVC/LSF/LSZH | PE/PVC/LSF/LSZH |
Remark: PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP
Working Frequency
1-16MHz
Product Certification
E222756 UL
Technical Parameters
☆ Characteristic Impedance: 100±15Ω
☆ Nominal Velocity of Propagation (NVP): 69%
☆ Maximum DC Resistance: 9.38Ω/100m
☆ Maximum Resistance Unbalance: 5%
☆ Maximum Propagation Delay Skew: 30 ns/100m
☆ Maximum Propagation Delay: 536 ns/100m@100 MHz
☆ Minimum Bending radius: 10 x Overall Diameter
☆ Voltage Rating: 60V rms
☆ Maximum Pulling load: 80N
☆ Working Temperature: -20℃ ~ +60℃
☆ Storage Temperature: -5℃ ~ +50℃
☆ Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket); UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 and IEC 60332-3C (LSFROH Jacket)
Product Categories
| FREQ (MHz) | NEXT(dB/100m) Minmum Value/Typical Value/Standard Value | IL (dB/100m) | SRL(dB/100m) Minmum Value/Typical Value/Standard Value |
|---|---|---|---|
| 1 | 43.0/48.0/41.0 | 2.6 | 13.0/16.0/12.0 |
| 4 | 34.0/38.0/32.0 | 5.6 | 13.0/16.0/12.0 |
| 8 | 29.0/33.0/26.0 | 8.5 | 13.0/16.0/12.0 |
| 10 | 28.0/33.0/26.0 | 9.8 | 13.0/16.0/12.0 |
| 16 | 25.0/30.0/23.0 | 13.1 | 11.0/14.0/10.0 |
Product Highlights
☆ Provide excellent bandwidth beyond 600 MHz.
☆ Support 10 Gigabit Ethernet application.
☆ Meet the strict flame retardancy and environmental requirements in Europe and US.
☆ Different jacket materials available for choice.
Ordering Information
| Model | Product Description |
|---|---|
| AD-BC-CAT3UTP25PCM24 | U/UTP Cat3 25 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT3UTP50PCM24 | U/UTP Cat3 50 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT3UTP100PCM24 | U/UTP Cat3 100 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT3UTP25PLH24 | U/UTP Cat3 25 Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT3UTP50PLH24 | U/UTP Cat3 50 Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT3UTP100PLH24 | U/UTP Cat3 100 Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT3UTP25PPE24 | Outdoor U/UTP Cat3 25 Pairs (Water-blocking /UV Resistant) |
| AD-BC-CAT3UTP50PPE24 | Outdoor U/UTP Cat3 50 Pairs (Water-blocking /UV Resistant) |
| AD-BC-CAT3UTP100PPE24 | Outdoor U/UTP Cat3 100 Pairs (Water-blocking /UV Resistant) |
| AD-BC-CAT3FTP25PCM24 | F/UTP Cat3 25 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT3FTP50PCM24 | F/UTP Cat3 50 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT3FTP100PCM24 | F/UTP Cat3 100 Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT3FTP25PLH24 | F/UTP Cat3 25 Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT3FTP50PLH24 | F/UTP Cat3 50 Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT3FTP100PLH24 | F/UTP Cat3 100 Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT3FTP25PPE24 | Outdoor F/UTP Cat3 25 Pairs (Water-blocking /UV Resistant) |
| AD-BC-CAT3FTP50PPE24 | Outdoor F/UTP Cat3 50 Pairs (Water-blocking /UV Resistant) |
| AD-BC-CAT3FTP100PPE24 | Outdoor F/UTP Cat3 100 Pairs (Water-blocking /UV Resistant) |
