Cat6 Cable
 |
Applications
10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T
Standards
ISO / IEC 11801, EN50173, TIA / EIA 568-B

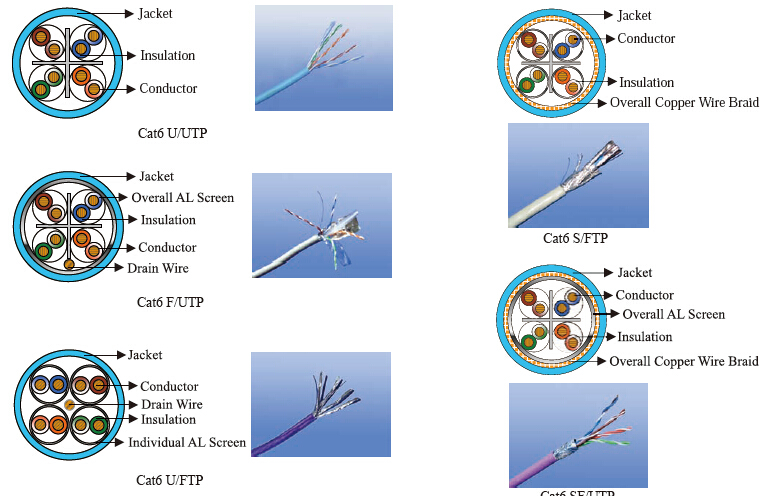

Construction
| U/UTP | F/UTP | U/FTP | SF/UTP | S/FTP | |
| Conductor | 23AWG Solid Plain Copper | 23AWG Solid Plain Copper | 23AWG Solid Plain Copper | 23AWG Solid Plain Copper | 23AWG Solid Plain Copper |
| Insulation | PE | PE | PE | PE | PE |
| Screen | Nil | Overall Aluminum Tape Screen | Individual Aluminum Tape Screen | Overall Aluminum Tape Screen & Copper Wire Braid | Individual Aluminum Tape Screen & Overall Copper Wire Braid |
| Drain Wire | Nil | 1/0.5 mm | 1/0.5 mm | Nil | Nil |
| Jacket | PE/PVC/LSF/LSZH/LSFROH | PE/PVC/LSF/LSZH | PE/PVC/LSF/LSZH/LSFROH |
Remark: PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP
Working Frequency
1-250MHz
Product Certification
E222756 UL
Technical Parameters
☆ Characteristic Impedance: 100±15Ω
☆ Nominal Velocity of Propagation (NVP): 69%
☆ Maximum DC Resistance: 7.5Ω/100m
☆ Maximum Resistance Unbalance: 5%
☆ Maximum Propagation Delay Skew: 30 ns/100m
☆ Maximum Propagation Delay: 536 ns/100m@100 MHz
☆ Minimum Bending radius: 10 x Overall Diameter
☆ Voltage Rating: 60V rms
☆ Maximum Pulling load: 80N
☆ Working Temperature: -20℃ ~ +60℃
☆ Storage Temperature: -5℃ ~ +50℃
☆ Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket); UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 and IEC 60332-3C (LSFROH Jacket)
Product Categories
| Construction | Conductor Diameter (mm) | Diameter Over Insulation (mm) | Pairs | Screen | Overall Diameter (mm) | Jacket |
|---|---|---|---|---|---|---|
| U/UTP | 0.57/0.58 | 1.02 | 4 | Nil | 6 | PVC/LSZH |
| U/UTP | 0.57/0.58 | 1.02 | 4 | Nil | 6.5 | LSFROH |
| U/UTP | 0.57/0.58 | 1.02 | 4 | Nil | 6.2 | PE |
| F/UTP | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen | 6.3 | PVC/LSZH |
| F/UTP | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen | 6.5 | PE |
| U/FTP | 0.57/0.58 | 1.02 | 4 | Individual Aluminum Tape Screen | 7.5 | PVC/LSZH |
| SF/UTP | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 6.6 | PVC/LSZH |
| SF/UTP | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 7.1 | LSFROH |
| S/FTP | 0.57/0.58 | 1.02 | 4 | IndividualAluminum Tape Screen & Overall Copper Wire Braid | 8 | PVC/LSZH |
| S/FTP | 0.57/0.58 | 1.02 | 4 | Individual Aluminum Tape Screen & Overall Copper Wire Braid | 8.4 | LSFROH |
Transmission Properties
| FREQ (MHz) | NEXT (dB/100m)Minimum Value/Typical Value/Standard Value | IL (dB/100m) | RL (dB/100m)Minimum Value/Typical Value/Standard Value | ACR (dB/100m)Minimum Value/Typical Value/Standard Value | ELFEXT (dB/100m)Minimum Value/Typical Value/Standard Value | PSNEXT (dB/100m)Minimum Value/Typical Value/Standard Value | PSACR (dB/100m)Minimum Value/Typical Value/Standard Value | PSELFEXT (dB/100m)Minimum Value/Typical Value/Standard Value |
|---|---|---|---|---|---|---|---|---|
| 1 | 77.3/87.0/74.3 | 2 | 20.0/21.5/20.0 | 75.2/85.0/72.2 | 68.8/80.0/67.8 | 75.3/85.0/72.3 | 73.2/83.0/70.2 | 65.8/70.0/64.8 |
| 4 | 68.3/77.0/65.3 | 3.8 | 23.0/24.7/23.0 | 64.4/73.0/61.4 | 56.8/66.0/55.8 | 66.3/74.0/63.3 | 62.5/71.0/59.5 | 53.8/63.0/52.8 |
| 8 | 63.8/72.0/60.8 | 5.3 | 24.5/25.5/24.5 | 58.4/67.0/55.4 | 50.7/61.0/49.7 | 61.8/70.0/58.8 | 56.5/65.0/53.5 | 47.7/58.0/46.7 |
| 10 | 62.3/70.0/59.3 | 6 | 25.0/28.0/25.0 | 56.3/64.0/53.3 | 48.8/57.0/47.8 | 60.3/68.0/57.3 | 54.3/62.0/51.3 | 45.8/54.0/44.8 |
| 16 | 59.2/66.0/56.2 | 7.6 | 25.0/28.0/25.0 | 51.6/59.0/48.6 | 44.7/52.0/43.7 | 57.2/64.0/54.2 | 49.6/57.0/46.6 | 41.7/49.0/40.7 |
| 20 | 57.8/65.0/54.8 | 8.5 | 25.0/28.0/25.0 | 49.3/57.0/46.3 | 42.8/50.0/41.8 | 55.8/63.0/52.8 | 47.3/55.0/44.3 | 39.8/47.0/38.8 |
| 25 | 56.3/63.0/53.3 | 9.5 | 24.3/27.0/24.3 | 46.8/5 4.0/43.8 | 40.8/47.0/39.8 | 54.3/61.0/51.3 | 44.8/52.0/41.8 | 37.8/44.0/36.8 |
| 31.25 | 54.9/61.0/51.9 | 10.7 | 23.6/26.5/23.6 | 44.1/51.0/41.1 | 38.9/45.0/37.9 | 52.9/59.0/49.9 | 42.1/49.0/39.1 | 35.9/42.0/34.9 |
| 62.5 | 50.4/57.0/47.4 | 15.4 | 21.5/24.6/21.5 | 34.9/42.0/31.9 | 32.9/38.0/31.9 | 48.4/55.0/45.4 | 32.9/40.0/29.9 | 29.9/35.0/28.9 |
| 100 | 47.3/53.0/44.3 | 19.8 | 20.1/23.7/20.1 | 27.4/33.0/24.4 | 28.8/34.0/27.8 | 45.3/51.0/42.3 | 25.4/31.0/22.4 | 25.8/31.0/24.8 |
| 200 | 42.8/48.0/39.8 | 29 | 18.0/22.2/18.0 | 13.6/21.0/10.6 | 22.8/27.0/21.8 | 40.8/46.0/37.8 | 11.6/19.0/8.6 | 19.8/24.0/18.8 |
| 250 | 41.3/46.0/38.3 | 32.8 | 17.3/21.6/17.3 | 8.3/14.0/5.3 | 20.8/24.0/19.8 | 39.3/44.0/36.3 | 6.3/12.0/3.3 | 17.8/21.0/16.8 |
| 300 | 37.1/45.0/37.1 | 36.4 | 16.8/20.7/16.8 | 0.5/11.0/0.5 | 18.3/23.0/18.3 | 35.1/43.0/35.1 | 0.111111 | 15.3/20.0/15.3 |
| 350 | 36.1/44.0/36.1 | 39.8 | 16.3/20.3/16.3 | 0.151515 | 16.9/21.0/16.9 | 34.1/42.0/34.1 | 0.217391 | 13.9/18.0/13.9 |
| 400 | 35.3/43.0/35.3 | 43 | 15.9/16.8/15.9 | 0.384615 | 15.8/20.0/15.8 | 33.3/41.0/33.3 | 1.666667 | 12.8/17.0/12.8 |
| 450 | 34.5/42.0/34.5 | 46.3 | 15.5/16.5/15.5 | -0.90909 | 14.7/18.0/14.7 | 32.5/40.0/32.5 | -0.32258 | 11.7/15.0/11.7 |
| 500 | 33.8/41.0/33.8 | 48.9 | 15.2/16.1/15.2 | -0.16129 | 13.8/18.0/13.8 | 31.8/39.0/31.8 | -0.12195 | 10.8/15.0/10.8 |
| 550 | 33.2/41.0/33.2 | 51.8 | 14.9/15.7/14.9 | -0.08333 | 12.9/17.0/12.9 | 31.2/39.0/31.2 | -0.07143 | 9.9/13.0/9.9 |
| 600 | 32.4/33.0/32.4 | 54.5 | 14.7/15.0/14.7 | -0.04762 | 12.2/14.0/12.2 | 30.6/31.0/30.6 | -0.04348 | 9.2/11.0/9.2 |
*Data for 250MHz above are for reference only
Product Highlights
☆ Provide excellent bandwidth beyond 250 MHz.
☆ Support 10 Gigabit Ethernet application.
☆ Meet the strict flame retardancy and environmental requirements in Europe and US.
☆ Different jacket materials available for choice.
☆ Guaranteed ACR Value > 0dB @ 250MHz.
☆ Special purpose cables can be offered according to customer request.
☆ Different jacket color options available for choice.
Ordering Information
| Model | Product Description |
|---|---|
| AD-BC-CAT6UTP4PCM23 | U/UTP Cat6 4Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6FTP4PCM23 | F/UTP Cat6 4Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6S-FTP4PCM23 | SF/UTP Cat6 4Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6STP4PCM23 | U/FTP Cat6 4Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6S-FTP4PCM23 | SF/UTP Cat6 4Pairs, CM Grade (Non-Plenum) |
| AD-BC-CAT6UTP4PLH23 | U/UTP Cat6 4Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT6FTP4PLH23 | F/UTP Cat6 4Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT6STP4PLH23 | U/FTP Cat6 4Pairs, LSZH Grade (IEC60332-1) |
| AD-BC-CAT6UTP4PFRLH23 | U/UTP Cat6 4Pairs, LSFROH Grade (IEC60332-1&IEC60332-3C) |
| AD-BC-CAT6S-FTP4PFRLH23 | SF/UTP Cat6 4Pairs, LSFROH Grade (IEC60332-1&IEC60332-3C) |
| AD-BC-CAT6SFTP4PFRLH23 | S/FTP Cat6 4Pairs, LSFROH Grade (IEC60332-1&IEC60332-3C ) |
| AD-BC-CAT6UTP4PPE23 | Outdoor U/UTP Cat6 4Pairs (Water Blocking /UV Resistant) |
| AD-BC-CAT6FTP4PPE23 | Outdoor F/UTP Cat6 4Pairs (Water Blocking /UV Resistant) |
| AD-BC-CAT6S-FTP4PPE23 | Outdoor SF/UTP Cat6 4Pairs (Water Blocking /UV Resistant) |
| AD-BC-CAT6STP4PPE23 | Outdoor STP Cat6 4 Pairs (Water Blocking /UV Resistant) |
| AD-BC-CAT6SFTP4PPE23 | Outdoor S/FTP Cat6 4 Pairs (Water Blocking /UV Resistant) |
