Category 6 Cable

Applications

10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T

Standards

ISO / IEC 11801, EN50173, TIA / EIA 568-B

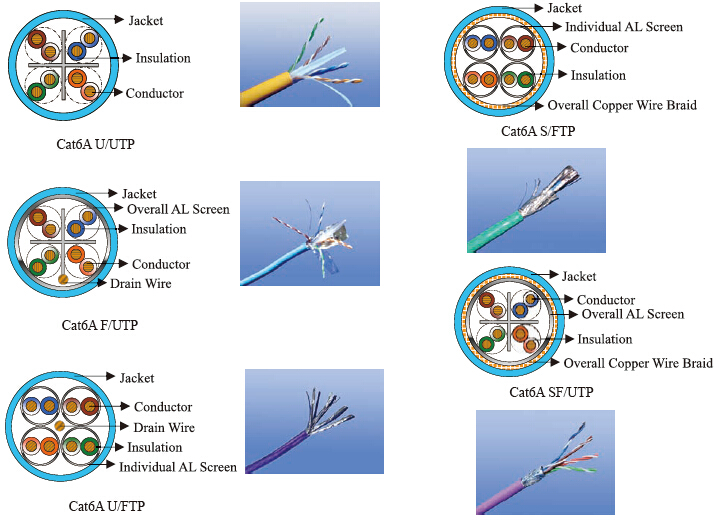

Construction

	U/UTP	F/UTP	U/FTP	SF/UTP	S/FTP
Conductor	23AWG Solid Plain Copper	23AWG Solid Plain Copper	23AWG Solid Plain Copper	23AWG Solid Plain Copper	23AWG Solid Plain Copper
Insulation	PE	PE	PE	PE	PE
Screen	Nil	Overall Aluminum Tape Screen	Individual Aluminum Tape Screen	Overall Aluminum Tape Screen & Copper Wire Braid	Individual Aluminum Tape Screen & Overall Copper Wire Braid
Drain Wire	Nil	1/0.5 mm	1/0.5 mm	Nil	Nil
Jacket	PE/PVC/LSF/LSZH/LSFROH	PE/PVC/LSF/LSZH	PE/PVC/LSF/LSZH/LSFROH

Remark: PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP

Working Frequency

1-500MHz

Product Certification

E222756 UL

Technical Parameters

☆ Characteristic Impedance: 100±15Ω (1-250MHz); 100±22Ω (100-500Mhz)
☆ Nominal Velocity of Propagation (NVP): CMX, CM, CMR, LSZH 69%; CMP 72%
☆ Maximum Mutual Capacitance: 5.6nF/100m
☆ Maximum Capacitance Unbalance: 330pF/100m
☆ Maximum DC Resistance: 7.5Ω/100m
☆ Maximum Resistance Unbalance: 3%
☆ Maximum Propagation Delay Skew: 30ns/100m (1-125MHz)
☆ Maximum Propagation Delay: 536 ns/100m @ 100MHz
☆ Minimum Bending radius: 10 x Overall Diameter
☆ Maximum Pulling load: 80N
☆ Working Temperature: -20℃ ~+ 60℃
☆ Storage Temperature: -5℃ ~ +50℃
☆ Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket ); UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)

Product Categories

Construction	Conductor Diameter (mm)	Diameter Over Insulation (mm)	Pairs	Screen	Overall Diameter (mm)	Jacket
U/UTP	0.57/0.58	1.02	4	Nil	8.5	PVC/LSZH
U/UTP	0.57/0.58	1.02	4	Nil	8.9	LSFROH
U/UTP	0.57/0.58	1.02	4	Nil	8.7	PE
F/UTP	0.57/0.58	1.02	4	Overall Aluminum Tape Screen	6.3	PVC/LSZH
F/UTP	0.57/0.58	1.02	4	Overall Aluminum Tape Screen	6.5	PE
U/FTP	0.57/0.58	1.02	4	Individual Aluminum Tape Screen	7.5	PVC/LSZH
SF/UTP	0.57/0.58	1.02	4	Overall Aluminum Tape Screen & Copper Wire Braid	6.6	PVC/LSZH
SF/UTP	0.57/0.58	1.02	4	Overall Aluminum Tape Screen & Copper Wire Braid	7.2	LSFROH
S/FTP	0.57/0.58	1.02	4	IndividualAluminum Tape Screen & Overall Copper Wire Braid	8	PVC/LSZH
S/FTP	0.57/0.58	1.02	4	IndividualAluminum Tape Screen & Overall Copper Wire Braid	8.4	LSFROH

Transmission Properties

UTP Cat 6A Transmission Properties

FREQ (MHz)	NEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value	IL (dB/100m)	RL (dB/100m) Minimum Value/ Typical Value/ Standard Value	ACR (dB/100m) Minimum Value/ Typical Value/ Standard Value	ELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value	PSNEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value	PSACR (dB/100m) Minimum Value/ Typical Value/ Standard Value	PSELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value
1	74.3/95.0/74.3	2	20.0/28.0/20.0	72.2/94.0/72.2	67.8/92.0/67.8	72.3/92.0/72.3	70.2/90.0/70.2	64.8/85.0/64.8
4	65.3/88.0/65.3	3.7	23.0/30.0/23.0	61.4/88.0/61.4	55.8/80.0/55.8	63.3/83.0/63.3	59.5/80.0/59.5	52.8/73.0/52.8
8	60.8/85.0/60.8	5.3	24.5/33.0/24.5	55.4/83.0/55.4	49.7/75.0/49.7	58.8/80.0/58.8	53.5/76.0/53.5	46.7/70.0/46.7
10	59.3/83.0/59.3	5.9	25.0/36.0/25.0	53.3/78.0/53.3	47.8/72.0/47.8	57.3/77.0/57.3	51.3/72.0/51.3	44.8/65.0/44.8
16	56.2/80.0/56.2	7.6	25.0/36.0/25.0	48.6/74.0/48.6	43.7/68.0/43.7	54.2/74.0/54.2	46.6/68.0/46.6	40.7/61.0/40.7
20	54.8/78.0/54.8	8.3	25.0/36.0/25.0	46.3/71.0/46.3	41.8/65.0/41.8	52.8/73.0/52.8	44.3/66.0/44.3	38.8/59.0/38.8
25	53.3/77.0/53.3	9.5	24.3/35.0/24.3	43.8/69.0/43.8	39.8/63.0/39.8	51.3/71.0/51.3	41.8/63.0/41.8	36.8/57.0/36.8
31.25	51.9/76.0/51.9	10.4	23.6/34.0/23.6	41.1/67.0/41.1	37.9/62.0/37.9	49.9/70.0/49.9	39.1/60.0/39.1	34.9/55.0/34.9
62.5	47.4/70.0/47.4	14.9	21.5/33.5/21.5	31.9/57.0/31.9	31.9/56.0/31.9	45.4/65.0/45.4	29.9/51.0/29.9	28.9/49.0/28.9
100	44.3/68.0/44.3	19	20.1/33.0/20.1	24.4/50.0/24.4	27.8/52.0/27.8	42.3/62.0/42.3	22.4/44.0/22.4	24.8/45.0/24.8
200	39.8/65.0/39.8	27.4	18.0/31.0/18.0	10.6/38.0/10.6	21.8/46.0/21.8	37.8/58.0/37.8	8.6/32.0/8.6	18.8/39.0/18.8
250	38.3/62.0/38.3	31	17.3/30.5/17.3	5.3/33.0/5.3	19.8/44.0/19.8	36.3/56.0/36.3	3.3/27.0/3.3	16.8/37.0/16.8
300	37.1/61.0/37.1	34.2	16.8/29.0/16.8	0.5/29.0/0.5	18.3/42.0/18.3	35.1/55.0/35.1	0.041667	15.3/35.0/15.3
350	36.1/60.0/36.1	37.1.	16.3/28.0/16.3	0.038462	16.9/41.0/16.9	34.1/54.0/34.1	0.05	13.9/34.0/13.9
400	35.3/59.0/35.3	40	15.9/27.0/15.9	0.047619	15.8/40.0/15.8	33.3/53.0/33.3	0.066667	12.8/33.0/12.8
450	34.5/58.0/34.5	46.3	15.5/26.5/15.5	0.055556	14.7/40.5.0/14.7	32.5/52.0/32.5	0.090909	11.7/32.5/11.7
500	33.8/57.0/33.8	45.3	15.2/26.0/15.2	0.066667	13.8/39.0/13.8	31.8/51.0/31.8	0.111111	10.8/32.0/10.8
625	32.4/53.0/32.4	51.1	14.5/25.0/14.5	0.032258	11.8/36.0/11.8	30.4/50.0/30.4	0.2	8.8/29.0/8.8

*Data for 250MHz above are for reference only

F/UTP & SF/UTP Cat 6A Transmission Properties

FREQ (MHz)	NEXT (dB/100m)Minimum Value/Typical Value/Standard Value	IL (dB/100m)	RL (dB/100m)Minimum Value/Typical Value/Standard Value	ACR (dB/100m)Minimum Value/Typical Value/Standard Value	ELFEXT (dB/100m)Minimum Value/Typical Value/Standard Value	PSNEXT (dB/100m)Minimum Value/Typical Value/Standard Value	PSACR (dB/100m)Minimum Value/Typical Value/Standard Value	PSELFEXT (dB/100m)Minimum Value/Typical Value/Standard Value
1	74.3/86.0/74.3	2	20.0/33.0/20.0	72.2/84.0/72.2	67.8/91.0/67.8	72.3/81.0/72.3	70.2/80.5/70.2	64.8/84.0/64.8
4	65.3/77.0/65.3	3.7	23.0/35.5/23.0	61.4/73.0/61.4	55.8/79.0/55.8	63.3/72.0/63.3	59.5/70.0/59.5	52.8/72.0/52.8
8	60.8/75.0/60.8	5.3	24.5/36.0/24.5	55.4/70.0/55.4	49.7/74.0/49.7	58.8/69.0/58.8	53.5/66.0/53.5	46.7/69.0/46.7
10	59.3/71.0/59.3	5.9	25.0/38.0/25.0	53.3/66.0/53.3	47.8/71.0/47.8	57.3/65.0/57.3	51.3/62.0/51.3	44.8/64.0/44.8
16	56.2/68.0/56.2	7.6	25.0/35.2/25.0	48.6/61.0/48.6	43.7/67.0/43.7	54.2/62.0/54.2	46.6/58.0/46.6	40.7/60.0/40.7
20	54.8/67.0/54.8	8.3	25.0/35.0/25.0	46.3/59.0/46.3	41.8/65.0/41.8	52.8/61.0/52.8	44.3/55.0/44.3	38.8/59.0/38.8
25	53.3/65.0/53.3	9.5	24.3/34.0/24.3	43.8/57.0/43.8	39.8/63.0/39.8	51.3/60.0/51.3	41.8/53.0/41.8	36.8/57.0/36.8
31.25	51.9/64.0/51.9	10.4	23.6/33.1/23.6	41.1/54.0/41.1	37.9/61.0/37.9	49.9/54.0/49.9	39.1/50.0/39.1	34.9/54.0/34.9
62.5	47.4/59.0/47.4	14.9	21.5/32.2/21.5	31.9/44.0/31.9	31.9/55.0/31.9	45.4/58.0/45.4	29.9/41.0/29.9	28.9/48.0/28.9
100	44.3/56.0/44.3	19	20.1/31.6/20.1	24.4/38.0/24.4	27.8/51.0/27.8	42.3/50.0/42.3	22.4/34.0/22.4	24.8/44.0/24.8
200	39.8/52.0/39.8	27.4	18.0/29.8/18.0	10.6/25.0/10.6	21.8/45.0/21.8	37.8/45.0/37.8	8.6/20.5/8.6	18.8/38.0/18.8
250	38.3/50.0/38.3	31	17.3/28.7/17.3	5.3/19.0/5.3	19.8/43.0/19.8	36.3/44.0/36.3	3.3/15.0/3.3	16.8/36.0/16.8
300	37.1/49.0/37.1	34.2	16.8/28.0/16.8	0.5/14.0/0.5	18.3/38.0/18.3	35.1/43.0/35.1	0.1	15.3/31.0/15.3
350	36.1/48.0/36.1	37.1	16.3/27.5/16.3	0.111111	16.9/37.0/16.9	34.1/41.0/34.1	0.142857	13.9/30.0/13.9
400	35.3/47.0/35.3	40	15.9/27.0/15.9	0.142857	15.8/36.0/15.8	33.3/40.0/33.3	0.333333	12.8/29.0/12.8
450	34.5/47.0/34.5	46.3	15.5/26.5/15.5	0.166667	14.7/35.0/14.7	32.5/39.0/32.5	0.5	11.7/27.5/11.7
500	33.8/47.0/33.8	45.3	15.2/26.0/15.2	0.2	13.8/34.0/13.8	31.8/38.0/31.8	#DIV/0!	10.8/27.0/10.8
625	32.4/45.0/32.4	51.1	14.5/25.0/14.5	1	11.8/33.0/11.8	30.4/37.0/30.4	-0.25641	8.8/26.0/8.8

U/FTP & S/FTP Cat 6A Transmission Properties

FREQ (MHz)	NEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value	IL (dB/100m)	RL (dB/100m) Minimum Value/ Typical Value/ Standard Value	ACR (dB/100m) Minimum Value/ Typical Value/ Standard Value	ELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value	PSNEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value	PSACR (dB/100m) Minimum Value/ Typical Value/ Standard Value	PSELFEXT (dB/100m) Minimum Value/ Typical Value/ Standard Value
1	87.0/90.0/74.3	2	20.0/28.0/20.0	85.0/88.0/72.2	73.8/75.0/67.8	85.0/88.0/72.3	83.0/86.0/70.2	70.8/72.0/64.8
4	80.0/90.0/65.3	3.7	23.0/30.0/23.0	76.0/86.0/61.4	61.8/75.0/55.8	78.0/88.0/63.3	74.0/84.0/59.5	58.0/72.0/52.8
8	80.0/90.0/60.8	5.3	24.5/33.0/24.5	74.7/84.0/55.4	55.7/75.0/49.7	78.0/88.0/58.8	72.7/82.0/53.5	52.7/72.0/46.7
10	80.0/90.0/59.3	5.9	25.0/36.0/25.0	74.0/84.0/53.3	53.8/74.0/47.8	78.0/88.0/57.3	72.0/82.0/51.3	50.8/71.0/44.8
16	80.0/90.0/56.2	7.6	25.0/36.0/25.0	72.4/82.0/48.6	49.7/70.0/43.7	78.0/88.0/54.2	70.4/80.0/46.6	46.7/67.0/40.7
20	80.0/90.0/54.8	8.3	25.0/36.0/25.0	71.5/81.0/46.3	47.8/68.0/41.8	78.0/88.0/52.8	69.5/79.0/44.3	44.8/65.0/38.8
25	80.0/90.0/53.3	9.5	24.3/35.0/24.3	70.5/80.0/43.8	45.8/68.0/39.8	78.0/88.0/51.3	68.5/78.0/41.8	42.8/65.0/36.8
31.25	80.0/90.0/51.9	10.4	23.6/34.0/23.6	69.3/79.0/41.1	43.9/64.0/37.9	78.0/88.0/49.9	67.3/77.0/39.1	40.9/61.0/34.9
62.5	75.3/90.0/47.4	14.9	21.5/33.5/21.5	59.9/74.0/31.9	37.9/58.0/31.9	69.1/83.0/45.4	57.9/72.0/29.9	34.9/55.0/28.9
100	71.1/85.0/44.3	19	20.1/33.0/20.1	51.3/65.0/24.4	33.8/54.0/27.8	69.1/83.0/42.3	49.3/63.0/22.4	30.8/51.0/24.8
200	71.1/85.0/39.8	27.4	18.0/31.0/18.0	42.1/56.0/10.6	27.8/51.0/21.8	69.1/83.0/37.8	40.1/54.0/8.6	24.8/48.0/18.8
250	71.1/85.0/38.3	31	17.3/30.5/17.3	38.2/52.0/5.3	25.8/48.0/19.8	61.7/78.0/36.3	36.2/50.0/3.3	22.8/45.0/16.8
300	63.7/80.0/37.1	34.2	16.8/29.0/16.8	27.3/43.0/0.5	24.3/45.0/18.3	61.7/78.0/35.1	25.3/41.0/-1.5	21.2/42.0/15.3
350	63.7/80.0/36.1	37.1	16.3/28.0/16.3	23.9/40.0/-3.8	23.9/45.0/16.9	61.7/78.0/34.1	21.9/38.0/-5.8	19.9/42.0/13.9
400	63.7/80.0/35.3	40	15.9/27.0/15.9	20.7/37.0/-7.9	21.8/45.0/15.8	61.7/78.0/33.3	18.7/35.0/-9.9	19.7/42.0/12.8
450	63.7/80.0/34.5	46.3	15.5/26.5/15.5	17.4/33.0/-10.5	20.5/42.0/14.7	61.7/78.0/32.5	15.4/31.0/-12.5	17.5/39.0/11.7
500	63.7/80.0/33.8	45.3	15.2/26.0/15.2	14.8/31.0/-15.3	19.8/42.0/13.8	61.7/78.0/31.8	12.8/29.0/-17.3	16.8/39.0/10.8
625	60.0/70.0/32.4	51.1	14.5/25.0/14.5	5.5/15.5/-23.1	18.8/42.0/11.8	58.0/68.0/30.4	9.9/26.0/-25.1	16.0/39.0/8.8

Product Highlights

☆ Provide excellent bandwidth beyond 500 MHz.
☆ Support 10 Gigabit Ethernet application.
☆ Meet the strict flame retardancy and environmental requirements in Europe and US.
☆ Different jacket materials available for choice.
☆ Guaranteed ACR Value > 0dB @ 250MHz.
☆ Special purpose cables can be offered according to customer request.
☆ Different jacket color options available for choice.

Ordering Information

Model	Product Description
AD-BC-CAT6AUTP4PCM23	U/UTP Cat6A 4 Pairs, CM Grade (Non-Plenum)
AD-BC-CAT6AFTP4PCM23	F/UTP Cat6A 4 Pairs, CM Grade (Non-Plenum)
AD-BC-CAT6AS-FTP4PCM23	SF/UTP Cat6A 4 Pairs, CM Grade (Non-Plenum)
AD-BC-CAT6ASTP4PCM23	U/FTP Cat6A 4 Pairs, CM Grade (Non-Plenum)
AD-BC-CAT6ASFTP4PCM23	S/FTP Cat6A 4 Pairs, CM Grade (Non-Plenum)
AD-BC-CAT6AUTP4PLH23	U/UTP Cat6A 4 Pairs, LSZH Grade (IEC 60332-1)
AD-BC-CAT6AFTP4PLH23	F/UTP Cat6A 4 Pairs, LSZH Grade (IEC60332-1)
AD-BC-CAT6ASTP4PLH23	U/FTP Cat6A 4 Pairs, LSZH Grade (IEC60332-1 )
AD-BC-CAT6AUTP4PFRLH23	U/UTP Cat6A 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C)
AD-BC-CAT6AS-FTP4PFRLH23	SF/UTP Cat6A 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C)
AD-BC-CAT6ASFTP4PFRLH23	S/FTP Cat6A 4 Pairs, LSFROH Grade (IEC60332-1 & IEC60332-3C)
AD-BC-CAT6AUTP4PPE23	Outdoor U/UTP Cat6A 4 Pairs (Water-blocking /UV Resistant)
AD-BC-CAT6AFTP4PPE23	Outdoor F/UTP Cat6A 4 Pairs (Water-blocking /UV Resistant)
AD-BC-CAT6AS-FTP4PPE23	Outdoor SF/UTP Cat6A 4 Pairs (Water-blocking /UV Resistant)
AD-BC-CAT6ASTP4PPE23	Outdoor U/FTP Cat6A 4 Pairs (Water-blocking /UV Resistant)
AD-BC-CAT6ASFTP4PPE23	Outdoor S/FTP Cat6A 4 Pairs (Water-blocking /UV Resistant)
