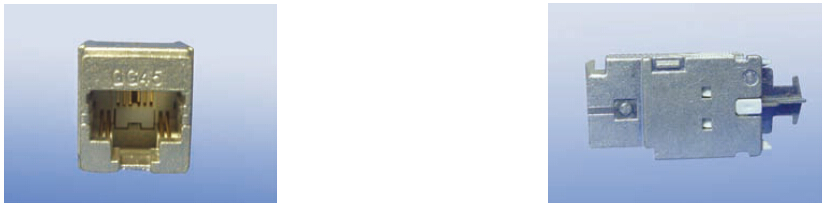

Cat7 Keystone Jacks
Basic Features
☆ Significant margin over ANSI/TIA 568-B, ISO/IEC 11801and EN 50173.
☆ Twists are maintained to within 1/2" (12.7mm).
☆ Work in standard keystone jack opening (0.58" x 0.78" or 14.7mm x 20.1mm).
☆ Unshielded and shielded versions available for choice.
☆ Accept 110 punch down tools or Krone punch down tools.
☆ Color coded for 568A and 568B wiring scheme.
☆ Swept frequency tested up to 150MHz for Cat5e jacks, 300 MHz for Cat 6 jacks and
500 MHz for Cat6A jacks.
Technical Parameters
☆ Made of UL-94V high impact and fire-retardant ABS material. ABS material is
characterized by good impact, chemical & fire resistance. UL94V-0 is the highest
standard on fire resistance.
☆ Beryllium copper contacts for superior connectivity, with 100μ" nickel baseboard
furnished with 50μ" gold plating.
☆ Support 22 -26AWG wire gauge.
☆ Plug Retention Force: 10kg (minimum)
☆ Plug & Keystone Jack Contact Force: 100 g.
☆ Insertion Life Cycle: 1,000 cycles (minimum) / I.D.C 250 cycles (minimum)
☆ Insulation Resistance: 500MΩ
☆ Contact Resistance: 20MΩ
☆ Current Rating: 1.5 Amps
☆ DC Resistance: Max.0.1Ω
☆ Dielectric Withstand Voltage: 1,000VAC RMS @ 60Hz/1 min
☆ Operating Temperature: - 10℃ ~ 60℃
☆ Storage Temperature: -40℃ ~ 70℃
Product Certification
E223921
Product Highlights
☆ Full seal design ensures reliable termination and stability.
☆ Supplied with a color coded dust cover for dust and dampness protection.
☆ IDC contact design eliminates need to strip individual conductors and ensures
reliable termination.
☆ With a patented technology, all twists are maintained to within 1/2", improving
the NEXT value to a great extent.
☆ Dust caps/retention caps offer termination with strain relief.
☆ Rear part of the jack printed with EIA 568B pin assignment to ensure fast
termination.
☆ Being component tested, the jacks can work in harmony with lower class products.
☆ Provide extra NEXT margin in support of future gigabit application.
☆ Provide fully shielded design to ensure the best screening performance.
☆ Toolless design can speed up the installation process and save installation costs.
☆ 100% full shield design can improve EMI/RFI performance. Shield at the jack rear
part can effectively protect IDC termination against EMI interference. They allow
flexible grounding for shielded cable for each IDC.
☆ Shielded panels incorporate 360℃ stainless steel for full EMI (Electro-magnetic
Immunity) shielding required by EN 50173.
☆ UL, ETL approved.
☆ Compact design can support high density installation.
Transmission Properties
Cat5e Jacks
FREQ (MHz) | IL (dB/100m) | NEXT(dB/100m) MinimumValue/Typical Value/ Standard Value | ELFEXT (dB/100m) MinimumValue/Typical Value/ Standard Value | RL (dB/100m) MinimumValue/Typical Value/ Standard Value |
---|---|---|---|---|
1 | 0.1 | 85.0/65.0 | 80.0/65.0 | 52.0/30.0 |
4 | 0.1 | 75.0/65.0 | 71.0/63.1 | 50.0/30.0 |
8 | 0.1 | 68.0/64.9 | 66.0/57.0 | 46.0/30.0 |
10 | 0.1 | 66.0/63.0 | 64.0/55.1 | 44.0/30.0 |
16 | 0.2 | 62.0/58.9 | 60.0/51.0 | 40.0/30.0 |
20 | 0.2 | 60.0/57.0 | 58.0/49.1 | 38.0/30.0 |
25 | 0.2 | 58.0/55.0 | 56.0/47.1 | 37.0/30.0 |
31.25 | 0.2 | 56.0/53.1 | 54.0/45.2 | 35.0/30.0 |
62.5 | 0.3 | 50.0/47.1 | 48.0/39.2 | 29.0/24.0 |
100 | 0.4 | 47.0/43.0 | 44.0/35.1 | 26.0/20.0 |
Cat6 Jacks
FREQ (MHz) | IL (dB/100m) | NEXT(dB/100m) MinimumValue/Typical Value/ Standard Value | ELFEXT(dB/100m) MinimumValue/Typical Value/ Standard Value | RL(dB/100m) MinimumValue/Typical Value/ Standard Value |
---|---|---|---|---|
1 | 0.1 | 85.0/75.0 | 83.0/75.0 | 52.0/30.0 |
4 | 0.1 | 80.0/75.0 | 74.0/71.1 | 53.0/30.0 |
8 | 0.1 | 77.0/75.0 | 69.0/65.0 | 55.0/30.0 |
10 | 0.1 | 76.0/74.0 | 67.0/63.1 | 56.0/30.0 |
16 | 0.1 | 72.0/69.9 | 62.0/59.0 | 57.0/30.0 |
20 | 0.1 | 72.0/68.0 | 61.0/57.0 | 59.0/30.0 |
25 | 0.1 | 69.0/66.0 | 59.0/55.1 | 59.0/30.0 |
31.25 | 0.11 | 67.0/64.1 | 58.0/53.2 | 56.0/30.0 |
62.5 | 0.16 | 61.0/58.1 | 52.0/47.2 | 42.0/28.0 |
100 | 0.2 | 57.0/54.0 | 48.0/43.1 | 33.0/24.0 |
200 | 0.28 | 52.0/48.0 | 42.0/37.1 | 21.0/18.0 |
250 | 0.32 | 47.0/46.0 | 40.0/35.1 | 17.0/16.0 |
Cat6A Jacks
FREQ (MHz) | IL (dB/100m) | NEXT(dB/100m) MinimumValue/Typical Value/ Standard Value | ELFEXT(dB/100m) MinimumValue/Typical Value/ Standard Value | RL(dB/100m) MinimumValue/Typical Value/ Standard Value |
---|---|---|---|---|
1 | 0.1 | 104.0/94.0 | 120.0/110 | 84.0/68.0 |
4 | 0.1 | 92.0/82.0 | 108.0/98.0 | 82.0/56.0 |
8 | 0.1 | 86.0/75.9 | 102.0/91.9 | 66.0/49.9 |
10 | 0.1 | 84.0/74.0 | 100.0/90.0 | 64.0/48.0 |
16 | 0.1 | 80.0/69.9 | 96.0/85.9 | 60.0/43.9 |
20 | 0.1 | 78.0/68.0 | 94.0/84.0 | 59.0/42.0 |
31.25 | 0.11 | 75.0/64.1 | 90.0/80.1 | 54.0/38.1 |
62.5 | 0.16 | 68.0/58.1 | 84.0/74.1 | 48.0/32.1 |
100 | 0.2 | 64.0/54.0 | 80.0/70.0 | 44.0/28.0 |
200 | 0.28 | 58.0/48.0 | 74.0/64.0 | 38.0/22.0 |
250 | 0.32 | 56.0/46.0 | 72.0/62.0 | 36.0/20.0 |
300 | 0.36 | 53/42.9 | 70.0/60.5 | 34.0/18.5 |
350 | 0.41 | 50/40.2 | 69.0/59.1 | 33.0/17.1 |
400 | 0.45 | 48/37.9 | 68.0/58.0 | 32.0/16.0 |
450 | 0.49 | 36.0/35.8 | 67.0/56.9 | 31.0/14.9 |
500 | 0.53 | 44.0/34.0 | 66.0/56.0 | 30.0/14.0 |
