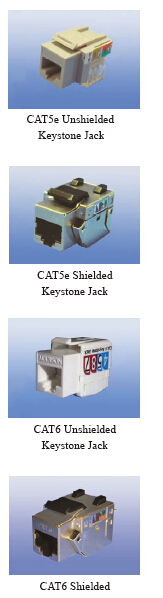

Cat5e & Cat6/6A Keystone Jacks
Product Highlights
☆ Full seal design ensures reliable termination and stability, with much better performance than Cat6 and Cat6A.
☆ Shielded jacks incorporate 360℃ stainless steel for full EMI (Electro-magnetic Immunity) shielding required by
EN 50173. It is fabricated entirely from heavy steel for good stability.
☆ With a patented technology, all twists are maintained to within 8mm, improving the NEXT value to a great extent.
☆ Suitable or digital, voice and image and data transmission according to EN50173 standard.
☆ Significant margin over DIN 44312-5 and ISO/IEC Cat 7 draft F channel.
☆ Being component tested, the jacks can work in harmony with Cat 6 or lower class products.
☆ Provide extra NEXT margin in support of future gigabit application.
Product Highlights
☆ Full seal design ensures reliable termination and stability.
☆ Supplied with a color coded dust cover for dust and dampness protection.
☆ IDC contact design eliminates need to strip individual conductors and ensures
reliable termination.
☆ With a patented technology, all twists are maintained to within 1/2", improving
the NEXT value to a great extent.
☆ Dust caps/retention caps offer termination with strain relief.
☆ Rear part of the jack printed with EIA 568B pin assignment to ensure fast
termination.
☆ Being component tested, the jacks can work in harmony with lower class products.
☆ Provide extra NEXT margin in support of future gigabit application.
☆ Provide fully shielded design to ensure the best screening performance.
☆ Toolless design can speed up the installation process and save installation costs.
☆ 100% full shield design can improve EMI/RFI performance. Shield at the jack rear
part can effectively protect IDC termination against EMI interference. They allow
flexible grounding for shielded cable for each IDC.
☆ Shielded panels incorporate 360℃ stainless steel for full EMI (Electro-magnetic
Immunity) shielding required by EN 50173.
☆ UL, ETL approved.
☆ Compact design can support high density installation.
Transmission Properties
Cat5e Jacks
| FREQ (MHz) |
IL (dB/100m) |
NEXT(dB/100m) MinimumValue/Typical Value/ Standard Value |
ELFEXT (dB/100m) MinimumValue/Typical Value/ Standard Value |
RL (dB/100m) MinimumValue/Typical Value/ Standard Value |
| 1 |
0.1 |
85.0/65.0 |
80.0/65.0 |
52.0/30.0 |
| 4 |
0.1 |
75.0/65.0 |
71.0/63.1 |
50.0/30.0 |
| 8 |
0.1 |
68.0/64.9 |
66.0/57.0 |
46.0/30.0 |
| 10 |
0.1 |
66.0/63.0 |
64.0/55.1 |
44.0/30.0 |
| 16 |
0.2 |
62.0/58.9 |
60.0/51.0 |
40.0/30.0 |
| 20 |
0.2 |
60.0/57.0 |
58.0/49.1 |
38.0/30.0 |
| 25 |
0.2 |
58.0/55.0 |
56.0/47.1 |
37.0/30.0 |
| 31.25 |
0.2 |
56.0/53.1 |
54.0/45.2 |
35.0/30.0 |
| 62.5 |
0.3 |
50.0/47.1 |
48.0/39.2 |
29.0/24.0 |
| 100 |
0.4 |
47.0/43.0 |
44.0/35.1 |
26.0/20.0 |
Cat6 Jacks
| FREQ (MHz) |
IL (dB/100m) |
NEXT(dB/100m) MinimumValue/Typical Value/ Standard Value |
ELFEXT(dB/100m) MinimumValue/Typical Value/ Standard Value |
RL(dB/100m) MinimumValue/Typical Value/ Standard Value |
| 1 |
0.1 |
85.0/75.0 |
83.0/75.0 |
52.0/30.0 |
| 4 |
0.1 |
80.0/75.0 |
74.0/71.1 |
53.0/30.0 |
| 8 |
0.1 |
77.0/75.0 |
69.0/65.0 |
55.0/30.0 |
| 10 |
0.1 |
76.0/74.0 |
67.0/63.1 |
56.0/30.0 |
| 16 |
0.1 |
72.0/69.9 |
62.0/59.0 |
57.0/30.0 |
| 20 |
0.1 |
72.0/68.0 |
61.0/57.0 |
59.0/30.0 |
| 25 |
0.1 |
69.0/66.0 |
59.0/55.1 |
59.0/30.0 |
| 31.25 |
0.11 |
67.0/64.1 |
58.0/53.2 |
56.0/30.0 |
| 62.5 |
0.16 |
61.0/58.1 |
52.0/47.2 |
42.0/28.0 |
| 100 |
0.2 |
57.0/54.0 |
48.0/43.1 |
33.0/24.0 |
| 200 |
0.28 |
52.0/48.0 |
42.0/37.1 |
21.0/18.0 |
| 250 |
0.32 |
47.0/46.0 |
40.0/35.1 |
17.0/16.0 |
Cat6A Jacks
| FREQ (MHz) |
IL (dB/100m) |
NEXT(dB/100m) MinimumValue/Typical Value/ Standard Value |
ELFEXT(dB/100m) MinimumValue/Typical Value/ Standard Value |
RL(dB/100m) MinimumValue/Typical Value/ Standard Value |
| 1 |
0.1 |
104.0/94.0 |
120.0/110 |
84.0/68.0 |
| 4 |
0.1 |
92.0/82.0 |
108.0/98.0 |
82.0/56.0 |
| 8 |
0.1 |
86.0/75.9 |
102.0/91.9 |
66.0/49.9 |
| 10 |
0.1 |
84.0/74.0 |
100.0/90.0 |
64.0/48.0 |
| 16 |
0.1 |
80.0/69.9 |
96.0/85.9 |
60.0/43.9 |
| 20 |
0.1 |
78.0/68.0 |
94.0/84.0 |
59.0/42.0 |
| 31.25 |
0.11 |
75.0/64.1 |
90.0/80.1 |
54.0/38.1 |
| 62.5 |
0.16 |
68.0/58.1 |
84.0/74.1 |
48.0/32.1 |
| 100 |
0.2 |
64.0/54.0 |
80.0/70.0 |
44.0/28.0 |
| 200 |
0.28 |
58.0/48.0 |
74.0/64.0 |
38.0/22.0 |
| 250 |
0.32 |
56.0/46.0 |
72.0/62.0 |
36.0/20.0 |
| 300 |
0.36 |
53/42.9 |
70.0/60.5 |
34.0/18.5 |
| 350 |
0.41 |
50/40.2 |
69.0/59.1 |
33.0/17.1 |
| 400 |
0.45 |
48/37.9 |
68.0/58.0 |
32.0/16.0 |
| 450 |
0.49 |
36.0/35.8 |
67.0/56.9 |
31.0/14.9 |
| 500 |
0.53 |
44.0/34.0 |
66.0/56.0 |
30.0/14.0 |
