Flame Retardant Data Cables
Flame Retardant CAT5e Data Cables
FGD-CAT5e U/UTP4P24
FGD-CAT5e f/UTP4P24
FGD-CAT5e sf/UTP4P24
APPLICATION
Cat5E is a cable standard for Gigabit Etdernet and otder network protocol, suitable for basic voice
and data installations up to 100 MHz. In addition, tdese cables can be offered witd copper wire
braid armoured & flame retardant outer sheatd, providing additional mechanically protection still
maintaining tde flexibility of tde cable.
STANDARDS
Basic design adapted to EN50173
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
VOLTAGE RATING
60V

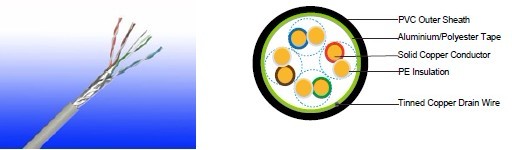

CABLE CONSTRUCTION
Conductors: 24AWG solid bare copper.Insulation: HDPE.
Twinning: Two coloured insulated conductors twisted togetder to form a pair.
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request. Cat5E F/UTP: These cables have collective shielding of aluminium/Polyester tape witd drain wire. Cat5E SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid.
COLOUR CODE
Insulation Colour: See technical information
Outer sheatd: Black or blue
Physical AND THERMAL PROPERTIES
Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameterr
Electrical Properties
| AWG | 24 | |
| Nominal Conductor Diameter | mm | 0.5/0.51/0.53 |
| Maximum DC Resistant@20°C | Ω/100m | 9.38 |
| Maximum DCR Unbalance | % | 5 |
| Maximum Mutual Capacitance | pF/m | 55.8 |
| Maximum Capacitance Unbalance | pF/100m | 330 |
| Characteristic Impedance@1-100MHz | Ω | 100+/-15 |
| Maximum Propagation Delay Skew | ns/100m | 45 |
Transmission Properties
| FREQ MHz | Maximum Attenuation dB/100m | Minimum NEXT dB | Minimum PSNEXT dB | Minimum ELFEXT dB/100m | Minimum PSELFEXT dB/100m | Minimum RL dB |
| 0.772 | 1.8 | 67.0 | 64.0 | 66.0 | 63.0 | — |
| 1 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 | 20.0 |
| 4 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 | 23.0 |
| 8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
| 10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 25.0 |
| 16 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 | 25.0 |
| 20 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 | 25.0 |
| 25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 |
| 31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 |
| 62.5 | 17.0 | 38.4 | 35.4 | 27.8 | 24.8 | 21.5 |
| 100 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 20.1 |
CONSTRUCTION PARAMETERS
| Cable Code | Nominal Inner Conductor Diameter | Nominal Insulation Thickness | Nominal Sheatd Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| mm | mm | mm | mm | kg/km | |
| FGD-Cat5E U/UTP | 0.5/0.51 | 0.91 | 4 | Nil | 5.1 |
| FGD-Cat5E F/UTP | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen | 6.3 |
| FGD-Cat5E SF/UTP | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 6.6 |
