Flame Retardant Data Cables

Flame Retardant CAT6 CWB/SWB/SWA Armoured Data Cables

FGD-CAT6 U/UTP4P23
FGD-CAT6 F/UTP4P23
FGD-CAT6 SF/FTP4P23

APPLICATION

Cat6 Cable is a cable standard for Gigabit Etdernet and otder network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Etdernet) application. In addition, tdese cables can be offered witd copper wire braid armoured & flame retardant outer sheatd, providing additional mechanically protection still maintaining tde flexibility of tde cable.

STANDARDS

Basic design adapted to EN50173

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)**	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)**	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.

VOLTAGE RATING

60V

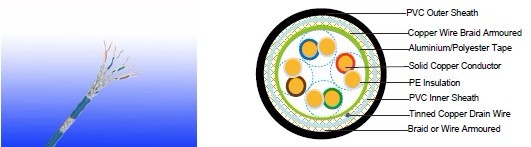

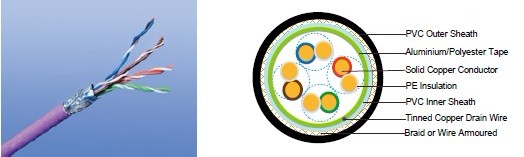

CABLE CONSTRUCTION

Conductors: 23AWG solid bare copper.
Insulation: HDPE .
Twinning: Two coloured insulated conductors twisted togetder to form a pair. Inner Sheatd: Flame retardant, low smoke and halogen-free polyolefin, coloured black.
Armouring: cwb: copper Wire Braid swb: Steel Wire Braid swa: Steel Wire Armour
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request. Cat6 F/UTP: These cables have collective shielding of aluminium/Polyester tape witd drain wire. Cat6 SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid witd drain wire.

Physical AND THERMAL PROPERTIES

Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter

Electrical Properties

AWG		23
Nominal Conductor Diameter	mm	0.56/0.57/0.58
Maximum DC Resistant@20°C	Ω/100m	9.38
Maximum DCR Unbalance	%	3
Maximum Mutual Capacitance	pF/m	5.8
Maximum Capacitance Unbalance	pF/100m	30
Characteristic Impedance@1-100MHz	Ω	100+/-15
Maximum Propagation Delay Skew	ns/100m	18

Transmission Properties

FREQ MHz	Maximum Attenuation dB/100m	Minimum NEXT dB	Minimum PSNEXT dB	Minimum ELFEXT dB/100m	Minimum PSELFEXT dB/100m	Minimum RL dB
0.772	1.8	76.0	74.	70.0	67.0	—
1	2.0	74.3	72.3	67.8	64.8	20.0
4	3.8	65.3	63.3	55.7	52.7	23.0
8	5.3	60.8	58.8	49.7	46.7	24.5
10	6.0	59.3	57.3	47.8	44.8	25.0
16	7.6	56.3	54.3	43.7	40.7	25.0
20	8.5	54.8	52.8	41.7	38.7	25.0
25	9.5	53.3	51.3	39.8	36.8	24.3
31.25	10.7	51.9	49.9	37.9	34.9	23.6
62.5	15.4	47.4	45.4	31.8	28.8	21.5
100	19.8	44.3	42.3	27.8	24.8	20.1
155	25.2	41.5	39.5	23.9	20.9	18.8
200	29.0	39.8	37.8	21.7	18.7	18.0
250	32.8	38.3	36.3	19.8	16.8	17.3

FGD Cat6 SF/UTP

CONSTRUCTION PARAMETERS

Cable Code	Construction No. of elements×No. of cores in element×Conductor diameter	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Nominal Weight
	mm	mm	mm	mm	mm	kg/km
FGD-CAT6 U/UTP CWB	4×2×0.56/0.57	0.2	0.6	1.0	7.88	115
FGD-CAT6 U/UTP SWB	4×2×0.56/0.57	0.2	0.6	1.0	7.88	109
FGD-CAT6 U/UTP SWA	4×2×0.56/0.57	0.2	0.6	1.0	8.88	189
FGD-CAT6 F/UTP CWB	4×2×0.57/0.58	0.2	0.6	1.0	8.48	126
FGD-CAT6 F/UTP SWB	4×2×0.57/0.58	0.2	0.6	1.0	8.48	132
FGD-CAT6 F/UTP SWA	4×2×0.57/0.58	0.2	0.6	1.0	9.48	213
FGD-CAT6 SF/UTP CWB	4×2×0.57/0.58	0.2	0.6	1.0	8.96	154
FGD-CAT6 SF/UTP SWB	4×2×0.57/0.58	0.2	0.6	1.0	8.96	148
FGD-CAT6 SF/UTP SWA	4×2×0.57/0.58	0.2	0.6	1.0	9.96	242
