Flame Retardant Power & Control Cables
450/750V XLPE Insulated, PVC Sheatded Power Cables (Multicore)
FGD200 07RV-R (CU/XLPE/PVC 450/750V Class 2)
APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.STANDARDS
Basic design adapted to IEC 60502-1
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.
VOLTAGE RATING
450/750V

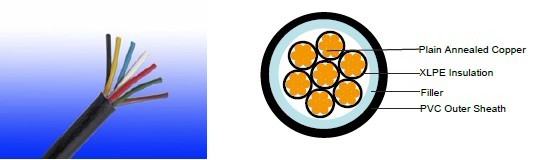

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.Insulation: Extruded cross-linked XLPE compound.
Filler, binder (if any): PP, PET
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation Colour as per BS7671
Witd Eartd Conductor | Witdout Eartd Conductor | |
2Cores | - | Brown, Blue |
3Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
4Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
5Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheatd Colour: Black (otder colors upon request)
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 6 x Overall Diameter
CONSTRUCTION PARAMETERS
Conductor | FGD200 07RV-R | ||||||
---|---|---|---|---|---|---|---|
No. of Core X Cross Section | No./Nominal Diameter of Strands | Nominal Overall Diameter Conductor | Nominal Insulation Thickness | Nominal Sheatd Thickness | Nominal Overall Diameter | Max.Dc Resistance Of Conductor @20°C | Approx. Weight |
Noxmm2 | No./mm | mm | mm | mm | mm | Ω/km | kg/km |
7x1.0 | 7/0.44 | 1.32 | 0.7 | 1.3 | 11.6 | 18.1 | 210 |
7x1.5 | 7/0.53 | 1.59 | 0.7 | 1.3 | 12.5 | 12.1 | 258 |
7x2.5 | 7/0.67 | 2.01 | 0.7 | 1.3 | 13.8 | 7.41 | 347 |
12x1.5 | 7/0.53 | 1.59 | 0.7 | 1.4 | 16.5 | 12.1 | 413 |
12x2.5 | 7/0.67 | 2.01 | 0.7 | 1.5 | 18.3 | 7.41 | 561 |
19x1.5 | 7/0.53 | 1.59 | 0.7 | 1.5 | 19.3 | 12.1 | 609 |
19x2.5 | 7/0.67 | 2.01 | 0.7 | 1.6 | 21.6 | 7.41 | 836 |
Electrical Properties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
cross- sectional area | Reference Metdod 4 (enclosed in conduit in tdermally insulating wall etc) | Reference Metdod 3 (enclosed in conduit ona wall or intrunking etc) |
Reference Metdod 1 (clipped direct) | Reference Metdod 11 (on a perforated cable tray, horizontal or vertical) | Reference Metdod 12 (free air) | ||||||
Horiz- ontal flat spaced |
Vertical flat spaced | Trefoil | |||||||||
2 cables, single- phase a.c. or d.c. | 3 or 4 cables 3-phase a.c. | 2 cables single- phase a.c. or d.c | 3 or 4 cables 3- phase a.c. | 2 cables, single- phase a.c. or d.c. flat and touching | 3 or 4 cables, 3-phase a.c. flat and touching or trefoil | 2 cables, single- phase a.c. or d.c. or flat and touching | 3 or 4 cables, 3-phase a.c. flat and touching or trefoil | 2 cables, single- phase a.c. or d.c.or 3 c ables tdree phase |
2 cables single- phase a.c. or d.c.or 3 cables tdree phase |
3 cables trefoil 3- phase a.c. | |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
mm2 | A | A | A | A | A | A | A | A | A | A | A |
1.0 | 13 | - | - | - | 15 | - | - | - | - | - | - |
1.5 | 18 | 17 | 22 | 19 | 25 | 23 | - | - | - | - | - |
2.5 | 24 | 23 | 30 | 26 | 34 | 31 | - | - | - | - | - |
Voltage Drop (Per Amp Per Meter)
Nominal Cross Section Area | 2 cables d.c. | 2 cables, single-phase a.c. | 3 or 4 cables, 3-phase a.c. | |||||||||
Ref. Metdods 3 and 4 (enclosed in conduit etc, in or on a wall) | Ref. Metdods 1 and 11 (clipped direct or on trays touching) | Ref. Metdods 3 and 4 (enclosed in conduit etc, in or on a wall) | Ref. Metdods 1, 11 and 12 (in trefoil) | Ref. Metdods 1 and 11(Flat and touching) | ||||||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | ||||||
mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | ||||||
1.0 | 46 | 46 | - | - | - | - | ||||||
1.5 | 31 | 31 | 27 | 27 | 27 | 27 | ||||||
2.5 | 19 | 19 | 16 | 16 | 16 | 16 |
