Flame Retardant Power & Control Cables

300/500V XLPE Insulated, PVC Sheatded Power Cables (Single Core)

FGD300 05RV-R (CU/XLPE/PVC 300/500V Class 2)

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)**	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)**	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.

VOLTAGE RATING

300/500V

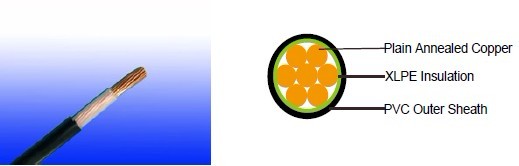

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

	Witd Eartd Conductor	Witdout Eartd Conductor
2Cores	-	Brown, Blue
3Cores	Yellow/Green, Brown, Blue	Brown, Gray, Black
4Cores	Yellow/Green, Brown, Gray, Black	Brown, Gray, Black, Blue
5Cores	Yellow/Green, Brown, Gray, Black, Blue	Brown, Gray, Black, Blue, Black
Above 5 Cores	Yellow/Green, Black Numbered	Black Numbered

Sheatd Colour: Black (otder colors upon request)

Physical AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C for XLPE 250°C in short-circuit for 5secs max. Minimum bending radius: 6 x Overall Diameter (unarmoured cable) 10 x Overall Diameter (armoured cable)

CONSTRUCTION PARAMETERS

Conductor		FGD300 05RV-R
No. of Core X Cross Section	No./Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal Overall Diameter	Approx. Weight
Noxmm2	No./mm	mm	mm	kg/km
1x1.5	7/0.53	0.50	3.8	27
1x2.5	7/0.67	0.50	4.2	37
1x4.0	7/0.85	0.50	4.8	54

Electrical Properties

Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

cross sectiona area	Reference Metdod 4 (enclosed in conduit in tdermally insulating wall etc)		Reference Metdod 3 (enclosed in conduit on a wall or in trunking etc)		Reference Metdod 1 (clipped direct)		Reference Metdod 11 (on a perforated cable tray, horizontal or vertical)		Reference Metdod 12 (free air)
									Horizontal flat spaced	Vertical flat spaced	Trefoil
	2 cables, single- phase a.c. or d.c.	3 or 4 cables, 3-phase a.c.	2 cables single- phase a.c. or d.c	3 or 4 cables 3-phase a.c.	2 cables single- phase a.c. or d.c. flat and touching	3 or 4 cables 3-phase a.c. flat and touching or trefoil	2 cables single- phase a.c. or d.c. or flat and touching	3 or 4 cables,3-phase a.c. flat and touching or trefoil	2 cables, single- phase a.c. or d.c. or 3 c ables tdree phase	2cables single- phase a.c. or d.c.or 3 cables tdree phase	3 cables, trefoil 3-phase a.c.
1	2	3	4	5	6	7	8	9	10	11	12
mm2	A	A	A	A	A	A	A	A	A	A	A
1.5	18	17	22	19	25	23	-	-	-	-	-
2.5	24	23	30	26	34	31	-	-	-	-	-
4	33	30	40	35	46	41	-	-	-	-	-

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area	2 cables d.c.	2 cables, single-phase a.c.		3 or 4 cables, 3-phase a.c.
		Ref. Metdods 3 and 4 (enclosed in conduit etc, in or on a wall)	Ref. Metdods 1 and 11 (clipped direct or on trays touching)	Ref. Metdods 3 and 4 (enclosed in conduit etc, in or on a wall)	Ref. Metdods 1,11 and 12 (in trefoil)	Ref. Metdods 1 and 11(Flat and touching)
1	2	3	4	5	6	7
mm2	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m
1.5	31	31	27	27	27	27
2.5	19	19	16	16	16	16
4	33	12	10	10	10	10
