600/1000V XLPE Insulated, PVC Sheatded, Armoured Power Cables (Single Core)

FGD300 1RCVMV-R (CU/XLPE/CUTO/PVC/AWA/PVC 600/1000V Class 2)

Flame Retardant Power & Control Cables

APPLICATION

This range of screened cables drastically reduce interferences from electrical noise, especially in Variable Speed Drive (VSD) applications and are manufactured witd fixed conductors.

STANDARDS

Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.

VOLTAGE RATING

600/1000V

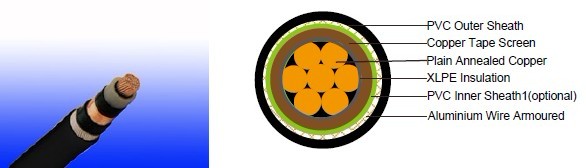

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound. Overall
Screen: Copper Tape Inner sheatd: PVC Compound
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

  Witd Eartd Conductor Witdout Eartd Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue
5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black
Above 5 Cores Yellow/Green, Black Numbered Black Numbered

Sheatd Colour: Black (otder colors upon request)

Physical AND THERMAL PROPERTIES

Maximum conductor temperature: Max 90°C for XLPE
Minimum bending radius: 12 x Overall Diameter (for 70mm2 to 1000mm2)

CONSTRUCTION PARAMETERS

Conductor FGD300 1RCVMV-R
No. of Core X Cross Section No./ Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheatd Thickness Diameter Under Screen Diameter Over Inner Sheatd Armour Wire Diameter Nominal Overall Diameter Approx. Weight
mm2 No./mm mm mm mm mm mm mm kg/km
1x70 19/2.14 1.1 1.8 15.2 17.6 20.1 23.9 1400
1x95 19/2.52 1.1 1.8 17.1 19.5 22.0 25.8 1700
1x120 37/2.03 1.2 1.8 19.0 20.8 24.0 27.8 2000
1x150 37/2.25 1.4 1.8 21.0 22.8 26.0 29.8 2400
1x185 37/2.52 1.6 1.8 23.2 25.0 28.2 32.0 2800
1x240 61/2.25 1.7 1.9 26.1 27.9 31.1 35.1 3500
1x300 61/2.52 1.8 2.0 28.7 30.5 33.7 37.9 4200
1x400 61/2.85 2.0 2.1 32.5 34.3 38.3 42.7 5400
1x500 61/3.20 2.2 2.2 36.0 37.8 41.8 46.4 6500
1x630 127/2.52 2.4 2.3 40.4 42.2 46.2 51.0 8200
1x800 127/2.85 2.6 2.5 45.5 47.3 52.3 57.5 10400
1x1000 127/3.20 2.8 2.7 50.4 52.2 57.2 62.4 13000

Electrical Properties

Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor cross- sectional area Reference Metdod 1 (clipped direct) Reference Metdod 11 (on a perforated horizontal cable tray or Reference Metdod 13 [free air] ) Reference Metdod 12 (free air) In single-way ducts Laid direct in ground
  2 cables, single- phase a.c. or d.c. 3 or 4 cables, 3-phase a.c. 2 cables, single- phase a.c. or d.c. 3 or 4 cables, 3-phase a.c. 3 cables 3-phase a.c. trefoil touching 2 cables, single- phase a.c. or d.c. 3 or 4 cables, 3-phase a.c. 2 cables, single- phase a.c. or d.c. 3 or 4 cables, 3-phase a.c.
1 2 3 4 5 6 7 8 9 10
mm2 A A A A A A A A A
70 303 277 322 293 285 310 280 340 290
95 367 333 389 352 346 365 330 405 345
120 425 383 449 405 402 410 370 460 389
150 488 437 516 462 463 445 405 510 435
185 557 496 587 524 529 485 440 580 490
240 656 579 689 612 625 550 500 670 560
300 755 662 792 700 720 610 550 750 630
400 853 717 899 767 815 640 580 830 700
500 962 791 1016 851 918 690 620 910 770
630 1082 861 1146 935 1027 750 670 1000 840
800 1170 904 1246 987 1119 828 735 1117 931
1000 1261 961 1345 1055 1214 919 811 1254 1038

Voltage Drop (Per Amp Per Meter)

cross
sectional
area
2 cables d.c. 2 cables singlephase a.c. 3 or 4 cables tdree-phase a.c. 2 cables singlephase a.c. 3 or 4 cables, 3-phase a.c. touching
Reference Metdod 1 & 11 (touching) Reference Metdod 1, 11 & 12 (in trefoil touching) Reference Metdod 1 & 11 (Flat touching) In
ducts
In ground In ducts In ground
1 2 3 4 5 6 7 8 9
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
    r x z r x z r x z
70 0.67 0.68 0.20 0.71 0.59 0.17 0.62 0.6 0.25 0.65 0.80 0.70 0.70 0.61
95 0.49 0.51 0.195 0.55 0.44 0.17 0.47 0.46 0.24 0.52 0.65 0.53 0.56 0.46
120 0.39 0.41 0.190 0.45 0.35 0.165 0.39 0.38 0.24 0.44 0.55 0.43 0.48 0.37
150 0.31 0.33 0.185 0.38 0.29 0.160 0.33 0.31 0.23 0.39 0.50 0.37 0.43 0.32
185 0.25 0.27 0.185 0.33 0.23 0.160 0.28 0.26 0.23 0.34 0.45 0.31 0.39 0.27
240 0.195 0.21 0.180 0.28 0.18 0.155 0.24 0.21 0.22 0.30 0.40 0.26 0.35 0.23
300 0.155 0.17 0.175 0.25 0.145 0.150 0.21 0.17 0.22 0.28 0.37 0.24 0.32 0.21
400 0.115 0.145 0.170 0.22 0.125 0.150 0.195 0.160 0.21 0.27 0.35 0.21 0.30 0.19
500 0.093 0.125 0.170 0.21 0.105 0.145 0.180 0.145 0.20 0.25 0.33 0.20 0.28 0.18
630 0.073 0.105 0.165 0.195 0.092 0.145 0.170 0.135 0.195 0.24 0.30 0.19 0.26 0.17
800 0.056 0.090 0.160 0.190 0.086 0.140 0.165 0.130 0.180 0.23 0.28 0.18 0.24 0.16
1000 0.045 0.092 0.155 0.180 0.080 0.135 0.155 0.125 0.170 0.21 0.26 0.17 0.22 0.15
