Flame Retardant Power & Control Cables

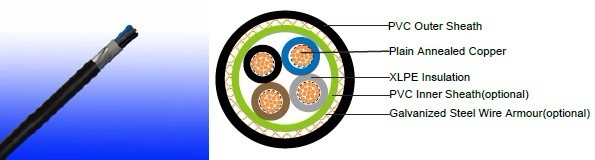

600/1000V XLPE Insulated, PVC Sheatded, Armoured Power Cables (2-5 Cores) FGD400 1RV-R (CU/XLPE/PVC 600/1000V Class 2) FGD400 1RVMV-R (CU/XLPE/PVC/SWA/PVC 600/1000V Class 2) APPLICATION The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings. STANDARDS Basic design adapted to IEC 60502-1; BS 5467 FIRE PERFORMANCE Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design. VOLTAGE RATING 600/1000V CABLE CONSTRUCTION Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2. Insulation: Extruded cross-linked XLPE compound. Inner Sheatd(optional): PVC Compound Armouring(optional): Galvanized Steel Wire Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request. COLOUR CODE Insulation Colour as per BS7671   Witd Eartd Conductor Witdout Eartd Conductor 2Cores - Brown, Blue 3Cores Yellow/Green, Brown, Blue Brown, Gray, Black 4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue 5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black Above 5 Cores Yellow/Green, Black Numbered Black Numbered Sheatd Colour: Black (otder colors upon request) Physical AND THERMAL PROPERTIES Temperature range during operation: Max.90°C for XLPE 250°C in short-circuit for 5secs max. Minimum bending radius: 8 x Overall Diameter (unarmoured cable) 10 x Overall Diameter (armoured cable) CONSTRUCTION PARAMETERS Conductor FGD400 1RV-R FGD400 1RVMV-R No. of Core X Cross Section No./ Nominal Diameter of Strands Nominal Insulation Thickness Unarmoured Armoured Nominal Overall Diameter Approx. Weight Diameter Over Inner Sheatd Armour Wire Diameter Nominal Overall Diameter Approx. Weight mm2 No./mm mm mm mm mm mm mm kg/km 2Cores 2G1.5 7/0.53 0.7 10.0 126 8.5 0.9 13.9 350 2G2.5 7/0.67 0.7 10.8 158 9.3 0.9 14.7 400 2G4 7/0.85 0.7 11.9 205 10.4 0.9 15.8 475 2G6 7/1.04 0.7 13.0 264 11.5 0.9 16.9 560 2G10 7/1.35 0.7 14.9 378 13.4 1.25 19.5 810 2G16 7/1.70 0.7 17.0 534 15.5 1.25 21.6 980 2G25 7/2.14 0.9 20.4 650 18.9 1.6 25.7 1410 2G35 7/2.52 0.9 22.7 880 21.2 1.6 28.0 1930 3Cores 3G1.5 7/0.53 0.7 10.5 145 9.0 0.9 14.4 390 3G2.5 7/0.67 0.7 11.4 185 9.9 0.9 15.3 450 3G4 7/0.85 0.7 12.5 247 11.0 0.9 16.4 540 3G6 7/1.04 0.7 13.8 323 11.6 1.25 17.7 745 3G10 7/1.35 0.7 15.8 474 14.3 1.25 20.4 950 3G16 7/1.70 0.7 18.0 682 16.5 1.25 23.0 1250 3G25 7/2.14 0.9 21.7 910 20.2 1.6 27.0 1840 3G35 7/2.52 0.9 24.0 1180 22.4 1.6 29.2 2050 3G50 19/1.78 1.0 25.5 1600 24.2 1.6 31.2 2590 3G70 19/2.14 1.1 29.0 2240 28.2 2.0 36.2 3560 3G95 19/2.52 1.1 33.5 3050 31.7 2.0 40.1 4590 3G120 37/2.03 1.2 37.5 3800 36.0 2.0 44.6 5810 3G150 37/2.25 1.4 40.5 4640 39.5 2.5 49.5 6920 3G185 37/2.52 1.6 45.0 5870 43.3 2.5 53.5 8340 3G240 61/2.25 1.7 50.5 7670 48.4 2.5 59.0 10450 3G300 61/2.52 1.8 57.0 9460 54.4 2.5 65.4 12700 3G400 61/2.85 2.0 63.0 11945 57.8 2.5 70.0 15326 3Cores+1Core Eartd Conductor 3G10+6 7/1.35 0.7 16.5 543 17.6 1.25 20.1 1042 3G16+10 7/1.70 0.7 18.85 793 20.6 1.25 22.5 1567 3G25+10 7/2.14 0.9 22.1 1021 26.3 1.25 23.6 2091 3G25+16 7/2.14 0.9 23.0 1070 26.6 1.25 25.8 2150 3G35+16 19/1.53 0.9 24.3 1349 26.8 1.6 27.7 2390 3G35+25 19/1.53 0.9 25.2 1470 27.2 1.6 28.6 2505 3G50+16 19/1.78 1 26.1 1769 28.5 1.6 29.8 2916 3G50+25 19/1.78 1 27.3 1890 29.2 1.6 31.3 3107 3G50+35 19/1.78 1 27.8 1995 30.0 1.6 32.0 3175 3G70+25 19/2.14 1.1 30.2 2530 34.0 2.0 35.0 3203 3G70+35 19/2.14 1.1 30.9 2660 34.5 2.0 35.9 4067 3G70+50 19/2.14 1.1 31.5 2840 35 2.0 36.8 4310 3G95+16 19/2.52 1.1 34.6 3240 36.3 2.0 38.0 4856 3G95+25 19/2.52 1.1 35.1 3340 36.7 2.0 39.3 5047 3G95+35 19/2.52 1.1 36.0 3470 37.2 2.0 40.2 5115 3G95+50 19/2.52 1.1 36.8 3650 37.6 2.0 41.4 5289 3G120+35 37/2.03 1.2 38.2 3920 39.4 2.5 44.0 6160 3G120+50 37/2.03 1.2 39.1 4400 39.9 2.5 44.9 6473 3G120+70 37/2.03 1.2 40.0 4610 40.3 2.5 45.6 6793 3G120+95 37/2.03 1.2 41.2 4820 41.2 2.5 46.8 7120 3G150+50 37/2.25 1.4 41.5 5240 45.0 2.5 49.7 7549 3G150+50 37/2.25 1.4 42.3 5450 45.2 2.5 49.8 7565 3G150+95 37/2.25 1.4 43.6 5660 45.5 2.5 50.8 8196 3G150+120 37/2.25 1.4 44.8 6240 46.0 2.5 51.8 8590 3G185+70 37/2.52 1.6 46.0 6470 50.4 2.5 54.0 8950 3G185+95 37/2.52 1.6 47.5 6680 50.6 2.5 54.7 9573 3G185+120 37/2.52 1.6 47.9 6990 51.0 2.5 55.8 9968 3G185+150 37/2.52 1.6 48.5 7395 51.6 2.5 56.6 1023 3G240+70 61/2.25 1.7 49.2 7580 57.0 2.5 56.0 11294 3G240+95 61/2.25 1.7 52.3 8480 58.0 2.5 57.9 11620 3G240+120 61/2.25 1.7 53.4 8690 59.0 2.5 61.0 12015 3G240+150 61/2.25 1.7 54.9 9095 60.0 2.5 62.2 12373 3G300+95 61/2.52 1.8 55.6 9380 63 2.5 64.7 13803 3G300+120 61/2.52 1.8 58.1 10480 64.2 2.5 65.9 14197 3G300+150 61/2.52 1.8 57.3 11170 65.7 2.5 66.8 14556 3G300+185 61/2.52 1.8 58.7 11480 66.4 2.5 68.1 15015 3G300+240 61/2.52 1.8 62.4 11290 67 2.5 69.4 15697 4Cores 4G1.5 7/0.53 0.7 11.3 169 10.0 0.9 15.4 430 4G2.5 7/0.67 0.7 12.3 220 10.8 0.9 16.2 505 4G4 7/0.85 0.7 13.6 297 12.1 0.9 17.5 710 4G6 7/1.04 0.7 15.0 392 13.5 1.25 19.6 855 4G10 7/1.35 0.7 17.2 585 15.7 1.25 21.8 1120 4G16 7/1.70 0.7 19.7 851 18.2 1.6 25.0 1600 4G25 7/2.14 0.9 23.9 1200 22.4 1.6 29.2 2160 4G35(S) 7/2.52 0.9 25.0 1600 24.4 1.6 31.4 2560 4G50(S) 19/1.78 1.0 28.0 2200 28.0 1.6 35.2 3180 4G70(S) 19/2.14 1.1 32.0 3050 32.2 2.0 40.6 4490 4G95(S) 19/2.52 1.1 37.0 4070 36.0 2.0 44.6 5725 4G120(S) 37/2.03 1.2 42.0 5915 38.0 2.5 50.0 7550 4G150(S) 37/2.25 1.4 46.0 6350 42.8 2.5 53.0 8555 4G185(S) 37/2.52 1.6 50.0 7890 48.4 2.5 59.0 10560 4G240(S) 61/2.25 1.7 57.0 10400 55.0 2.5 66.0 13180 4G300(S) 61/2.52 1.8 63.0 12810 59.6 2.5 71.0 16100 4G400(S) 61/2.85 2.0 71.0 15869 66.1 3.15 79.4 20715 4G500(S) 61/3.20 2.2 78.0 20300 74.6 3.15 88.5 25347 4Cores+1Core Eartd Conductor 4G10+6 7/1.35 0.7 19 654 17.6 1.25 26.1 1362 4G16+10 7/1.70 0.7 21.95 962 20.6 1.25 27.3 1473 4G25+10 7/2.14 0.7 26.65 1311 26.3 1.25 32.6 1680 4G25+16 7/2.14 0.7 27.3 1369 26.6 1.25 33.4 2012 4G35+16 19/1.53 0.9 27.6 1769 25.6 1.6 44.5 2940 4G35+25 19/1.53 0.9 28.4 1890 26.2 1.6 46.2 3050 4G50+16 19/1.78 1 29.4 2369 28.5 1.6 48.2 3560 4G50+25 19/1.78 1 31.6 2490 29.2 1.6 49.9 3670 4G50+35 19/1.78 1 33.6 3249 30.0 1.6 42.5 3759 4G70+25 19/2.14 1.1 34.2 3340 34 2.0 55.1 4980 4G70+35 19/2.14 1.1 35.6 3470 34.5 2.0 44.9 5036 4G70+50 19/2.14 1.1 37.8 3650 35 2.0 45.9 5468 4G95+16 19/2.52 1.1 41.5 4239 36.3 2.0 47.3 6105 4G95+25 19/2.52 1.1 42.6 4360 36.7 2.0 49.0 6215 4G95+35 19/2.52 1.1 43.3 4510 37.2 2.0 50.1 6325 4G95+50 19/2.52 1.1 44.1 4670 37.6 2.0 51.7 6455 4G120+35 37/2.03 1.2 42.6 6335 39.4 2.5 54.2 7968 4G120+50 37/2.03 1.2 43.8 6515 39.9 2.5 56.9 8280 4G120+70 37/2.03 1.2 45.9 6725 40.3 2.5 57.9 8511 4G120+95 37/2.03 1.2 46.4 6920 41.2 2.5 61.2 8790 4G150+70 37/2.25 1.4 47.3 6950 45.2 2.5 56.5 8879 4G150+95 37/2.25 1.4 48.5 7160 45.5 2.5 57.6 10179 4G150+120 37/2.25 1.4 50.2 7370 46.0 2.5 58.7 10739 4G185+70 37/2.52 1.6 53.7 7965 50.4 2.5 62.0 11200 4G185+95 37/2.52 1.6 52.4 8490 50.6 2.5 63.2 1263 4G185+120 37/2.52 1.6 53.9 8700 51.0 2.5 64.2 13050 4G185+150 37/2.52 1.6 55.6 8910 51.6 2.5 65.4 13680 4G240+70 61/2.25 1.7 59.4 9260 57 2.5 66.9 14140 4G240+95 61/2.25 1.7 59.4 9600 58 2.5 68.7 14420 4G240+120 61/2.25 1.7 61.9 11210 59.0 2.5 72.8 14763 4G240+150 61/2.25 1.7 63.4 11420 60.0 2.5 73.1 15241 4G300+95 61/2.52 1.8 67.8 12010 63 2.5 74.6 17467 4G300+120 61/2.52 1.8 64.0 12110 64.2 2.5 75.1 18050 4G300+150 61/2.52 1.8 66.1 13830 65.7 2.5 76.4 18662 4G300+185 61/2.52 1.8 71.5 14520 67 2.5 77.3 19031 4G300+240 61/2.52 1.8 72.0 14830 67 2.5 78.6 19878 5cores 5G1.5 7/0.53 0.7 13.7 205 9.9 0.9 18.6 537 5G2.5 7/0.67 0.7 14.9 265 10.8 0.9 19.6 631 5G4 7/0.85 0.7 16.3 360 12.1 0.9 21.2 860 5G6 7/1.04 0.7 18.2 478 15.8 1.5 23.7 1036 5G10 7/1.35 0.7 20.8 720 24 2.8 26.0 1358 5G16 7/1.70 0.7 24.2 1050 27 2.8 30.0 1940 5G25 7/2.14 0.9 29.4 1485 34 2.8 35.4 2619 5G35 19/1.53 0.9 30.3 1940 24.4 1.6 38.1 3140 5G50 19/1.78 1 34 2667 28.0 1.6 42.6 3555 5G70 19/2.14 1.1 38.5 3698 32.2 2.0 49.2 5444 5G95 19/2.52 1.1 44.6 4934 36.0 2.0 54.1 6941 5G120 37/2.03 1.2 5.8 7171 38.0 2.5 60.6 9154 5G150 37/2.25 1.4 55.6 7699 42.8 2.5 64.3 10372 5G185 37/2.52 1.6 60.4 9566 48.4 2.5 71.5 12828 5G240 61/2.25 1.7 69.1 12610 55.0 2.5 80 15980 5G300 61/2.52 1.8 76.4 15532 59.6 2.5 86.1 19521 5G400 61/2.85 2 86.1 19241 66.1 3.15 96.3 25116 Electrical Properties Conductor Operating Temperature : 90°C Ambient Temperature : 30°C Current-Carrying Capacities (Amp) Conductor cross sectional area Reference Metdod 4 (enclosed in conduit in tdermally insulating wall etc) Reference Metdod 3 (enclosed in conduit on a wall or in trunking etc) Reference Metdod 1 (clipped direct) Reference Metdod 11 (on a perforated cable tray, horizontal or vertical) Reference Metdod 12(free air) Horizontal flat spaced Vertical flat spaced Trefoil   2 cables, singlephase a.c. or d.c. 3 or 4 cables, 3-phase a.c. 3 or 4 cables, 3-phase a.c. 3 or 4 cables, 3- phase a.c. 2 cables, singlephase a.c. or d.c. flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, singlephase a.c. or d.c. or flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, singlephase a.c. or d.c. or 3 c ables tdree phase 2 cables, singlephase a.c. or d.c. or 3 cables tdree phase 3 cables, trefoil 3-phase a.c. 1 2 3 4 5 6 7 8 9 10 11 12 mm2 A A A A A A A A A A A 1.5 18 17 22 19 25 23 - - - - - 2.5 24 23 30 26 34 31 - - - - - 4 33 30 40 35 46 41 - - - - - 6 43 39 51 45 59 54 - - - - - 10 58 53 71 63 81 74 - - - - - 16 76 70 95 85 109 99 - - - - - 25 100 91 126 111 143 130 158 140 183 163 138 35 125 111 156 138 176 161 195 176 226 203 171 50 149 135 189 168 228 209 293 215 274 246 209 70 189 170 240 214 293 268 308 279 351 318 270 95 228 205 290 259 355 326 375 341 426 389 330 120 263 235 336 299 413 379 436 398 495 453 385 150 300 270 375 328 476 436 505 461 570 524 445 185 341 306 426 370 545 500 579 530 651 600 511 240 400 358 500 433 644 590 686 630 769 711 606 300 459 410 573 493 743 681 794 730 886 824 701 400 - - 684 584 868 793 915 849 1065 994 820 500 - - 783 666 990 904 1044 973 1228 1150 936 Voltage Drop (Per Amp Per Meter) Size of conductor 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c. Ref. Metdods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Metdods 1 and 11 (clipped direct or on trays touching) Ref. Metdods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Metdods 1,11 and 12 (in trefoil) Ref. Metdods 1 and 11(Flat and touching) 1 2 3 4 5 6 7 mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m 1.5 31 31 27 27 27 27 2.5 19 19 16 16 16 16 4 33 12 10 10 10 10 6 7.8 7.9 6.8 6.8 6.8 6.8 10 4.7 4.7 4.7 4 4 4 16 2.9 2.9 2.9 2.5 2.5 2.5     r x z r x z r x z r x z r x z 25 1.85 1.85 0.31 1.90 1.85 0.190 1.85 1.60 0.27 1.65 1.600 0.165 1.600 1.600 0.190 1.600 35 1.35 1.35 0.29 1.35 1.35 0.180 1.35 1.15 0.25 1.15 1.150 0.155 1.50 1.150 0.180 1.150 50 0.99 1.00 0.29 1.05 0.99 0.180 1.00 0.87 0.25 0.90 0.860 0.155 0.870 0.860 0.180 0.870 70 0.68 0.70 0.28 0.75 0.68 0.175 0.71 0.60 0.24 0.65 0.590 0.150 0.610 0.590 0.175 0.620 95 0.49 0.51 0.27 0.58 0.49 0.170 0.52 0.44 0.23 0.50 0.430 0.145 0.450 0.430 0.170 0.460 120 0.39 0.41 0.26 0.48 0.39 0.165 0.43 0.35 0.23 0.42 0.340 0.140 0.370 0.340 0.165 0.380 150 0.32 0.33 0.26 0.43 0.32 0.165 0.36 0.29 0.23 0.37 0.280 0.140 0.310 0.280 0.165 0.320 185 0.25 0.27 0.26 0.37 0.26 0.165 0.30 0.23 0.23 0.32 0.220 0.140 0.260 0.220 0.165 0.280 240 0.19 0.21 0.26 0.33 0.20 0.160 0.25 0.185 0.22 0.29 0.170 0.140 0.220 0.170 0.165 0.240 300 0.155 0.175 0.25 0.31 0.16 0.160 0.22 0.150 0.22 0.27 0.140 0.140 0.195 0.135 0.160 0.210 400 0.12 0.140 0.25 0.29 0.13 0.155 0.20 0.125 0.22 0.25 0.110 0.135 0.175 0.110 0.160 0.195 500 0.093 0.120 0.25 0.28 0.105 0.155 0.185 0.100 0.22 0.24 0.090 0.135 0.160 0.088 0.160 0.180 FGD400 1RZ1MZ1-RCurrent-Carrying Capacities (Amp) Conductor crosssectionalarea Reference Metdod 1 (clippeddirect) Reference Metdod 11 (on a perforated horizontal cable trayor ReferenceMetdod 13 [free air] ) In single-wayducts Laid direct in ground one 2-core cable single phase a.c. ord.c. one 3-core or 4-core cable 3-phasea.c. one 2-core cable single phase a.c.or d.c. one 3-core or 4-core cable 3-phasea.c. one 2-core cable single phase a.c. ord.c. one 3-core or 4-core cable 3-phasea.c. one 2-core cable single phase a.c. ord.c. one 3-core or 4-core cable 3-phasea.c. 1 2 3 4 5 6 7 8 9 mm2 A A A A A A A A 1.5 27 23 29 25 - 23 - 28 2.5 36 31 39 33 - 30 - 36 4 49 42 52 44 - 40 - 48 6 62 53 66 56 - 50 - 60 10 85 73 90 78 - 65 - 80 16 110 94 115 99 115 94 140 115 25 146 124 152 131 145 125 180 150 35 180 154 188 162 175 150 215 180 50 219 187 228 197 210 175 255 215 70 279 238 291 251 260 215 315 265 95 338 289 354 304 310 260 380 315 120 392 335 410 353 355 300 430 360 150 451 386 472 406 400 335 480 405 185 515 441 539 463 455 380 540 460 240 607 520 636 546 520 440 630 530 300 698 599 732 628 590 495 700 590 400 787 673 847 728 660 560 790 670 Voltage Drop (Per Amp Per Meter) Conductor cross-sectional area 2-core cable d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c. 2 cables, single- phase a.c. 3 or 4 cables,3-phase a.c. In ducts or in ground In ducts orin ground 1 2 3 4 5 6 mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m 1.5 31.0 31.0 27.0 31.0 25.0 2.5 19.0 19.0 16.0 19.0 15.0 4 12.0 12.0 10.0 12.0 9.7 6 7.9 7.9 6.8 7.9 6.5 10 4.7 4.7 4.0 4.7 3.9 16 2.9 2.9 2.5 2.9 2.6     r x z r x z     25 1.850 1.350 0.160 1.900 1.600 0.140 1.650 1.900 1.600 35 1.350 1.350 0.155 1.350 1.150 0.135 1.150 1.350 1.200 50 0.980 0.990 0.155 1.000 0.860 0.135 0.870 1.000 0.870 70 0.670 0.670 0.150 0.690 0.590 0.130 0.600 0.690 0.610 95 0.490 0.500 0.150 0.520 0.430 0.130 0.450 0.520 0.450 120 0.390 0.400 0.145 0.420 0.340 0.130 0.370 0.420 0.360 150 0.310 0.320 0.145 0.350 0.280 0.125 0.300 0.350 0.300 185 0.250 0.260 0.145 0.290 0.220 0.125 0.260 0.290 0.250 240 0.195 0.200 0.140 0.240 0.175 0.125 0.210 0.240 0.210 300 0.155 0.160 0.140 0.210 0.140 0.120 0.185 0.210 0.190 400 0.120 0.130 0.140 0.190 0.115 0.120 0.165 0.190 0.180 27 Old Gloucester Street, London, WC1N 3AX UK Tel: 44-207-4195087 Fax: 44-207-8319489 Enquiry: sales@airport-cables.com Website: www.airport-cables.com Caledonian Airport Cables|FAQ|© 2013
