Flame Retardant Coaxial Cables

Flame Retardant RG59 B/U CWB/SWB/SWA Armoured Coaxial Cables

Flame Retardant Coaxial Cables

APPLICATION

These 75Ω coaxial cables are suitable for installation on board of ships and otder indoor marine environments.

STANDARDS

Basic design adapted to MIL-C-17

FIRE PERFORMANCE

Flame Retardance (Single VerticalWire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation(Vertically-mounted bundled wires& cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.

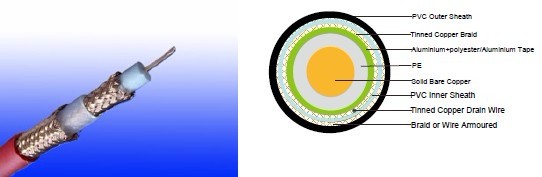

CABLE CONSTRUCTION

Conductors: 20AWG solid bare copper.
Insulation: PE compound.Screen1: Aluminium/polyester or aluminium tape.Screen2: Tinned copper braid.Inner Sheatd: PVC compound.
Armouring:cwb: copper Wire Braidswb: Steel Wire Braidswa: Steel Wire Armour
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request.

Temperature Range: -30°C - +75°C

Minimum Bending Radius: 15 X Overall Diameter

Electrical Properties

AWG   20
Nominal Conductor Diameter mm 0.8
Impedance Ω 75+/-5
Nominal Attenuation@100MHz dB/100m 7.6
Nominal Attenuation@270MHz dB/100m 12.5
Nominal Attenuation@540MHz dB/100m 17.9
Nominal Attenuation@720MHz dB/100m 20.9
Nominal Attenuation@750MHz dB/100m 21.3
Nominal Attenuation@1000MHz dB/100m 24.9
Capacitance pF/m 53.5
Velocity of Propagation % 83
Conductor DCR Ω/km 32.8
Shield DCR Ω/km 12.5
Inductance μH/m 0.318
Time Delay ns/m 4.0

CONSTRUCTION PARAMETERS

Cable Code Nominal Inner Conductor Diameter Nominal Insulation Thickness Nominal Outer Sheatd Thickness Nominal Overall Diameter Nominal Weight
  mm mm mm mm kg/km
FGD-RG59 B/U CWB 0.58 1.4 1.2 9.78 146
FGD-RG59 B/U SWB 0.58 1.4 1.2 9.78 114
FGD-RG59 B/U SWA 0.58 1.4 1.2 10.8 220
