Flame Retardant CoaxialCables
Flame Retardant RG6 A/U Coaxial cables
APPLICATION
The cables are designed for CCTV, security, smoke detection and evacuation monitoring
applications, where continued functionality is required during a fire situation. Due to tde zero halogen
low smoke construction, tdis cable is ideal for use in public, commercial and industrial environments.
STANDARDS
Basic design adapted to MIL-C-17
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC
compound and tde cable design.

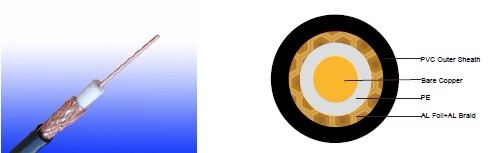

CABLE CONSTRUCTION
Conductors: Bare copper copper wire, solid according to IEC(EN) 60228 class 1.
Insulation: Foamed PE compound.
Overall
Screen: Aluminium foil(100%)+Aluminium braid (70%)
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde
PVC compound and tde overall cable design. LSPVC can also be provided upon request.
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C - +70°C
Temperature Range During Installation (Mobile State): -5°C - +60°C
Minimum Bending Radius: 8 X Overall Diameter
Electrical Properties
| IMPEDANCE |
75±5Ω |
| CAPACITANCE |
54 NF/KM |
| Velocity ratio(%) |
82 |
| Insulation resistance |
>5000 Mohm.Km |
| Shield coverage |
AL FOIL(100%)+AL 70% |
| DC resistance |
|
| Inner conductor |
23.1 Ω/km |
| Outer conductor |
31 Ω/km |
Attenuation
| Frequency(MHz) |
Attenuation (dB/100 m) |
Attenuation (dB/100ft) |
| 50 |
5.0 |
1.5 |
| 100 |
6.4 |
1.96 |
| 200 |
9.2 |
2.8 |
| 500 |
14.5 |
4.4 |
| 600 |
15.9 |
4.9 |
| 800 |
17.7 |
5.4 |
| 1000 |
21.9 |
6.7 |
| 1350 |
24.9 |
7.6 |
| 1750 |
29.0 |
8.8 |
| 2050 |
33.1 |
10.1 |
| 2400 |
36.4 |
11.1 |
Return Loss
| Frequency(MHz) |
>Return Loss (dB) |
| 30-300 |
>28dB |
| 300-600 |
>24dB |
| 600-900 |
>22dB |
CONSTRUCTION PARAMETERS
| Cable Code |
Conductor Diameter |
Nominal Insulation Diameter |
Nominal Screen No.x Diameter |
Nominal Overall Diameter |
Approx. Weight |
| |
mm |
mm |
No. x mm |
mm |
kg/km |
| FGD RG6 A/U> |
1.02 |
4.57 ± 0.20 |
96 x 0.12 |
7.00 |
81.6 |
