Sounder Cable FFX200 05SZ1-R/F 2G1.5

FFX200 05SZ1-R 2G1.5 (CU/SR/LSZH 2×1.5mmsq 300/500V class 2)

FFX200 05SZ1-F 2G1.5 (CU/SR/LSZH 2×1.5mmsq 300/500V class 5)

sounder cables BS 7629 cable

APPLICATIONS

The cables are multicore stranded flexible cables sheathed with thermoplastic LSZH compound. The cables have the ability to restrict the propagation of the flame in the event of a fire. This is especially important to slow down the spreading of the fire as the cables may pass from one area to another within a building. Applications can be found in control and power circuits, power stations, underground tunnels, lifts, escalators, and high-rise buildings.

STANDARDS

Basic design	BS 7629-1
Halogen Free	IEC 60754-1
No corrosive gas emission	IEC 60754-2
Minimum Smoke Emission	IEC 61034/1/2
Reduced Fire Propagation	IEC 60332-3C / NF C 32070-2.2 (C1)
Flame Retardance	IEC 60332-1 / NF C 32-070-2.1 (C2)
Fire Resistance	IEC 60331 / BS 5839-1 Clause 26 2d / NF C 32070-2.3(CR1)

VOLTAGE RATING

300/500V

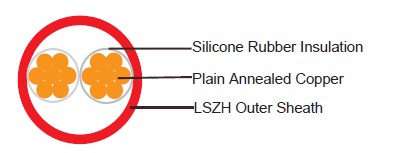

CAbLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 or class 5.

Insulation: Fire resistant silicone rubber compound type EI2 as per BS 7655-1.1

Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1.

ELECTRICAL PROPERTIES

Dielectric test	2000 V r.m.s. x 5’ (core/core)
Insulation resistance	300 MΩ x km (at 20°C)
Short circuit temperature	350°C

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -30°C – +90°C

Temperature range during installation (mobile state): -20°C – +50°C

Minimum bending radius: 8 × Overall Diameter

CONSTRUCTION PARAMETERS

FFX200 05SZ1-R 2G1.5

FFX200 05SZ1-F 2G1.5

No.of core	Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Approx.Weight
	mm²	No/mm	mm	mm	mm	kg/km
2	1.5	7/0.53	0.5	0.5	7.0	70
2	1.5	30/0.25	0.5	0.5	7.0	70
