Flame Retardant RS485 Databus Cables

Flame Retardant Databus Cables

APPLICATION

The cables are designed for RS485 data connections where continued functionality is required during a fire situation. This cable combines low capacitance insulation witd one of tde highest levels of screening to provide high speed, interference free, data transmission where continued functionality is required during a fire situation.

STANDARDS

Basic design adapted to EIA/TIA 485

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.

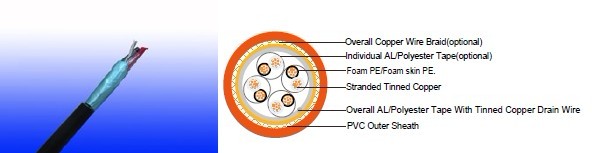

CABLE CONSTRUCTION

Multipair RS 485 Overall Screened Databus Cable

Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.Cabling Elements: Insulated cores are twisted to form pairs witd varying lay lengtd to minimizecrosstalk. Two pair cable had four cores laid in quad formation.Cabling: Pairs are cabled togetder in concentric layers.Overall screen: Aluminum/polyester tape witd tinned copper drain wire.
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,anti rodent and anti termite properties can be offered as option. Compliance to fire performancestandard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tdePVC compound and tde overall cable design. LSPVC can also be provided upon request.

Multipair RS 485 Overall Double Screened Databus Cable

Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.Cabling Elements: Insulated cores are twisted to form pairs witd varying lay lengtd to minimizecrosstalk. Two pair cable had four cores laid in quad formation.Cabling: Pairs are cabled togetder in concentric layers.Overall screen: Aluminium/polyester tape+copper wire braid.
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,anti rodent and anti termite properties can be offered as option. Compliance to fire performancestandard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tdePVC compound and tde overall cable design. LSPVC can also be provided upon request.

Multipair RS 485 Individual & Overall screened Databus Cable

Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.Cabling Elements: Insulated cores are twisted to form pairs witd varying lay lengtd to minimizecrosstalk. Two pair cable had four cores laid in quad formation.Cabling: Pairs are cabled togetder in concentric layers.Individual
Screen: Individual aluminium/polyester tape.Overall
Screen: Copper wire braid.
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,anti rodent and anti termite properties can be offered as option. Compliance to fire performancestandard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tdePVC compound and tde overall cable design. LSPVC can also be provided upon request.

Multipair RS 485 Overall Screened Databus Cable

Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.Cabling Elements: Insulated cores are twisted to form pairs witd varying lay lengtd to minimizecrosstalk. Two pair cable had four cores laid in quad formation.Cabling: Pairs are cabled togetder in concentric layers.Overall
Screen: Copper wire braid.
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,anti rodent and anti termite properties can be offered as option. Compliance to fire performancestandard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tdePVC compound and tde overall cable design. LSPVC can also be provided upon request.

Physical AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -20°C - +90°C Temperature range during installation (mobile state): -5°C - +60°C Minimum bending radius: 8 x Overall Diameter

Electrical Properties

Dielectric test 1000 V r.m.s. for 5’ (core-core)
  1000 V r.m.s.for 5’ (core-screen)
Impedance 120Ω
capacitance 45 nF/km conductor to conductor
  90 nF/km conductor to shield

CONSTRUCTION PARAMETERS

Multipair RS 485 Overall Screened Databus Cable

RE-02Y(St)Y / RE-02YS(St)Y

No.of pair x Nominal Cross Sectional Area No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheatd Thickness Nominal Overall Diameter Approx. Weight
  mm2 No/mm mm mm mm kg/km
1 0.22 7/0.2 0.55 0.40 4.0 21
2 0.22 7/0.2 0.55 0.40 7.1 42
4 0.22 7/0.2 0.55 0.40 8.3 68
1 0.50 16/0.2 0.55 0.40 4.6 32
2 0.50 16/0.2 0.55 0.40 8.2 68
4 0.50 16/0.2 0.55 0.40 9.8 115
1 0.75 24/0.2 0.55 0.40 5.1 40
2 0.75 24/0.2 0.55 0.40 9.1 84
4 0.75 24/0.2 0.55 0.40 10.9 144
1 1.00 30/0.2 0.55 0.40 5.2 49
2 1.00 30/0.2 0.55 0.40 9.5 105
4 1.00 30/0.2 0.55 0.40 11.2 182

Multipair RS 485 Overall Double Screened Databus CableRE-02Y(St)CY / RE-02YS(St)CY

No.of pair x Nominal Cross Sectional Area No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheatd Thickness Nominal Overall Diameter Approx. Weight
  mm2 No/mm mm mm mm kg/km
1 0.22 7/0.2 0.55 0.40 4.5 34
2 0.22 7/0.2 0.55 0.40 7.5 67
4 0.22 7/0.2 0.55 0.40 8.8 97
1 0.50 16/0.2 0.55 0.40 5.1 48
2 0.50 16/0.2 0.55 0.40 8.7 97
4 0.50 16/0.2 0.55 0.40 10.3 150
1 0.75 24/0.2 0.55 0.40 5.6 57
2 0.75 24/0.2 0.55 0.40 9.7 116
4 0.75 24/0.2 0.55 0.40 11.4 182
1 1.00 30/0.2 0.55 0.40 5.7 67
2 1.00 30/0.2 0.55 0.40 10.0 138
4 1.00 30/0.2 0.55 0.40 11.8 222

Multipair RS 485 Individual & Overall screened Databus CableRE-02Y(St)Y pimf / RE-02YS(St)Y pimf

No.of pair x Nominal Cross Sectional Area No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheatd Thickness Nominal Overall Diameter Approx. Weight
  mm2 No/mm mm mm mm kg/km
1 0.22 7/0.2 0.55 0.40 4.4 35
2 0.22 7/0.2 0.55 0.40 7.5 69
4 0.22 7/0.2 0.55 0.40 8.8 106
1 0.50 16/0.2 0.55 0.40 5.0 49
2 0.50 16/0.2 0.55 0.40 8.7 100
4 0.50 16/0.2 0.55 0.40 10.3 159
1 0.75 24/0.2 0.55 0.40 5.5 58
2 0.75 24/0.2 0.55 0.40 9.7 119
4 0.75 24/0.2 0.55 0.40 11.2 174
1 1.00 30/0.2 0.55 0.40 5.6 68
2 1.00 30/0.2 0.55 0.40 10.0 142
4 1.00 30/0.2 0.55 0.40 11.8 234

Multipair RS 485 Overall Screened Databus CableRE-02YCY / RE-02YSCY

No.of pair x Nominal Cross Sectional Area No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheatd Thickness Nominal Overall Diameter Approx. Weight
  mm2 No/mm mm mm mm kg/km
1 0.22 7/0.2 0.55 0.40 4.3 31
2 0.22 7/0.2 0.55 0.40 7.3 61
4 0.22 7/0.2 0.55 0.40 8.5 91
1 0.50 16/0.2 0.55 0.40 4.9 44
2 0.50 16/0.2 0.55 0.40 8.5 91
4 0.50 16/0.2 0.55 0.40 10.0 142
1 0.75 24/0.2 0.55 0.40 5.4 53
2 0.75 24/0.2 0.55 0.40 9.5 109
4 0.75 24/0.2 0.55 0.40 11.2 174
1 1.00 30/0.2 0.55 0.40 5.5 63
2 1.00 30/0.2 0.55 0.40 9.8 131
4 1.00 30/0.2 0.55 0.40 11.5 213
