Flame Retardant Data Cables

Flame Retardant CAT5e CWB/SWB/SWA Armoured Data Cables

FGD-CAT5e U/UTP4P24 cwb/swb/swa
FGD-CAT5e f/UTP4P24 cwb/swb/swa
FGD-CAT5e sf/FTP4P24 cwb/swb/swa

APPLICATION

Cat5E is a cable standard for Gigabit Etdernet and otder network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, tdese cables can be offered witd copper wire braid armoured & flame retardant outer sheatd, providing additional mechanically protection still maintaining tde flexibility of tde cable.

STANDARDS

Basic design adapted to EN50173

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)**	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)**	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.

VOLTAGE RATING

60V

CABLE CONSTRUCTION

Conductors: 24AWG solid bare copper.
Insulation: HDPE.
Twinning: Two coloured insulated conductors twisted togetder to form a pair. Inner Sheatd: Flame retardant, low smoke and halogen-free polyolefin, coloured black
Armouring: cwb: copper Wire Braid swb: Steel Wire Braid swa: Steel Wire Armour
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request.

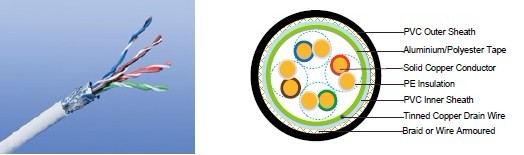

Cat5E F/UTP: These cables have collective shielding of aluminium/Polyester tape witd drain wire.

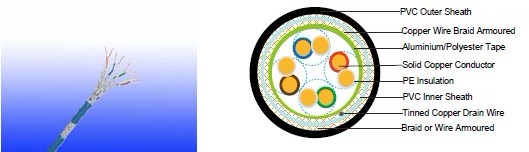

Cat5E SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid.

Physical AND THERMAL PROPERTIES

Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter

Electrical Properties

AWG		24
Nominal Conductor Diameter	mm	0.5/0.53
Maximum DC Resistant@20°C	Ω/100m	9.38
Maximum DCR Unbalance	%	5
Maximum Mutual Capacitance	pF/m	55.8
Maximum Capacitance Unbalance	pF/100m	330
Characteristic Impedance@1-100MHz	Ω	100+/-15
Maximum Propagation Delay Skew	ns/100m	45

Transmission Properties

FREQ MHz	Maximum Attenuation dB/100m	Minimum NEXT dB	Minimum PSNEXT dB	Minimum ELFEXT dB/100m	Minimum PSELFEXT dB/100m	Minimum RL dB
0.772	1.8	67.0	64.0	66.0	63.0	—
1	2.0	65.3	62.3	63.8	60.8	20.0
4	4.1	56.3	53.3	51.7	48.7	23.0
8	5.8	51.8	48.8	45.7	42.7	24.5
10	6.5	50.3	47.3	43.8	40.8	25.0
16	8.2	47.3	44.3	39.7	36.7	25.0
20	9.3	45.8	42.8	37.7	34.7	25.0
25	10.4	44.3	41.3	35.8	32.8	24.3
31.25	11.7	42.9	39.9	33.9	30.9	23.6
62.5	17.0	38.4	35.4	27.8	24.8	21.5
100	22.0	35.3	32.3	23.8	20.8	20.1

FGD Cat5E SF/UTP

CONSTRUCTION PARAMETERS

Cable Code	Construction No. of elements× No. of cores in element× Conductor diameter	Nominal Insulation Thickness	Nominal Inner Sheatd Thickness	Nominal Outer Sheatd Thickness	Nominal Overall Diameter	Nominal Weight
	mm	mm	mm	mm	mm	kg/km
FGD-CAT5E U/UTP CWB	4×2×0.5	0.2	0.6	1.0	7.68	97
FGD-CAT5E U/UTP SWB	4×2×0.5	0.2	0.6	1.0	7.68	93
FGD-CAT5E U/UTP SWA	4×2×0.5	0.2	0.6	1.0	8.68	165
FGD-CAT5E F/UTP CWB	4×2×0.53	0.2	0.6	1.0	8.28	116
FGD-CAT5E F/UTP SWB	4×2×0.53	0.2	0.6	1.0	8.28	112
FGD-CAT5E F/UTP SWA	4×2×0.53	0.2	0.6	1.0	9.28	192
FGD-CAT5E SF/UTP CWB	4×2×0.53	0.2	0.6	1.0	8.76	123
FGD-CAT5E SF/UTP SWB	4×2×0.53	0.2	0.6	1.0	8.76	119
FGD-CAT5E SF/UTP SWA	4×2×0.53	0.2	0.6	1.0	9.76	216
