BS 7629-1 450/750V SR Insulated & Overall Screened Control Cables (1-4 Cores & Multicore)
FFX200 07SZ1-R
Applications
BS 7629 standard 450/750V fire resistant overall screen control cables are designed, manufactured and tested for general application in power and signal wiring, for emergency circuit and fire circuit control where high rejection to electrostatic noise is needed.
Standards
BS 7629-1
FIRE PERFORMANCE
| Circuit Integrity |
IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180);
CEI 20-36/2-1; SS299-1; NBN C 30-004 (cat. F3);
NF C32-070-2.3(CR1) |
| System circuit integrity |
DIN 4102-12, E30 depending on lay system |
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);
CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;
CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;
CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;
CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |

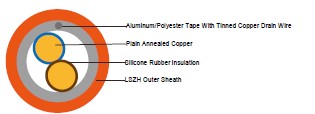

Construction
| Conductor |
Plain annealed copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
Mica glass fire resistant tape covered by fire resistant silicone rubber compound type EI2 as per BS 7655-1.1. |
| Cabling |
The cores are cabled together in concentric layers with suitable non-hygroscopic fillers. |
| Overall screen |
Aluminum/polyester tape with tinned copper drain wire. |
| Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. |
Colour Code
Insulation Colour as per BS7671
| |
With Earth Conductor |
Without Earth Conductor |
| 2Cores |
Brown, Blue |
|
| 3Cores |
Yellow/Green, Brown, Blue |
Brown, Gray, Black |
| 4Cores |
Yellow/Green, Brown, Gray, Black |
Brown, Gray, Black, Blue |
| 5Cores |
Yellow/Green, Brown, Gray, Black, Blue |
Brown, Gray, Black, Blue, Black |
| above 5 Cores |
Yellow/Green, Black Numbered |
Black Numbered |
Sheath Colour: Black (other colors upon request)
Physical and thermal properties
| Temperature range during operation (fixed state) |
-30°C – +90°C |
| Temperature range during installation (mobile state) |
-20°C – +50°C |
| Minimum bending radius |
8 x Overall Diameter |
Electrical properties
| Rated Voltage Uo/U (Um) |
450/750V |
| Dielectric test |
2000 V r.m.s. x 5' (core/core) |
| Insulation resistance |
300 MΩ x km (at 20°C) |
| Short circuit temperature |
350°C |
Dimensions and Weight
| Cable Code |
No. of Core X Cross Section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
mm2 |
mm |
mm |
mm |
kg/km |
| 2 core |
| FFX200 07SOZ1-F(PH30/60) |
2x0.75 |
0.7 |
0.9 |
7,6 |
69 |
| FFX200 07SOZ1-F(PH30/60) |
2x1.0 |
0.7 |
1.0 |
8,0 |
78 |
| FFX200 07SOZ1-F(PH30/60) |
2x1.5 |
0.8 |
1.0 |
8,3 |
88 |
| FFX200 07SOZ1-F(PH30/60) |
2x2.5 |
0.9 |
1.1 |
9,8 |
123 |
| 3 core |
| FFX200 07SOZ1-F(PH30/60) |
3x0.75 |
0.7 |
0.9 |
8,0 |
84 |
| FFX200 07SOZ1-F(PH30/60) |
3x1.0 |
0.7 |
1.0 |
8,2 |
86 |
| FFX200 07SOZ1-F(PH30/60) |
3x1.5 |
0.8 |
1.0 |
8,8 |
112 |
| FFX200 07SOZ1-F(PH30/60) |
3x2.5 |
0.9 |
1.1 |
10,4 |
159 |
| 4 core |
| FFX200 07SOZ1-F(PH30/60) |
4x0.75 |
0.7 |
1.0 |
8,7 |
103 |
| FFX200 07SOZ1-F(PH30/60) |
4x1.0 |
0.7 |
1.1 |
8,9 |
110 |
| FFX200 07SOZ1-F(PH30/60) |
4x1.5 |
0.8 |
1.1 |
9,8 |
141 |
| FFX200 07SOZ1-F(PH30/60) |
4x2.5 |
0.9 |
1.2 |
11,4 |
196 |
| 7 core |
| FFX200 07SOZ1-F(PH30/60) |
7x1.0 |
0.7 |
1.1 |
10,8 |
176 |
| FFX200 07SOZ1-F(PH30/60) |
7x1.5 |
0.8 |
1.2 |
11,7 |
218 |
| FFX200 07SOZ1-F(PH30/60) |
7x2.5 |
0.9 |
1.3 |
13,4 |
305 |
| 12 core |
| FFX200 07SOZ1-F(PH30/60) |
12x1.0 |
0.7 |
1.2 |
13,9 |
275 |
| FFX200 07SOZ1-F(PH30/60) |
12x1.5 |
0.8 |
1.3 |
15,3 |
352 |
| FFX200 07SOZ1-F(PH30/60) |
12x2.5 |
0.9 |
1.5 |
17,9 |
505 |
| 19 core |
| FFX200 07SOZ1-F(PH30/60) |
19x1.0 |
0.7 |
1.4 |
16,4 |
408 |
| FFX200 07SOZ1-F(PH30/60) |
19x1.5 |
0.8 |
1.5 |
18,2 |
535 |
| FFX200 07SOZ1-F(PH30/60) |
19x2.5 |
0.9 |
1.6 |
21,1 |
760 |
