IEC 60502-1/BS 7846 600/1000V Mica+XLPE insulated, Armoured LSZH sheathed Power cables

Applications

IEC 60502-1 / BS 7846 standard 600/1000V armoured fire resistant power cables is used in fire extinguishing systems, sprinklers, control panels, and exit lights in high-rise buildings, hotels, hospitals, sub-ways, and public facilities.

Standards

IEC 60502-1 / BS 7846

FIRE PERFORMANCE

Circuit Integrity	IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS299-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
System circuit integrity	DIN 4102-12, E30 depending on lay system
Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

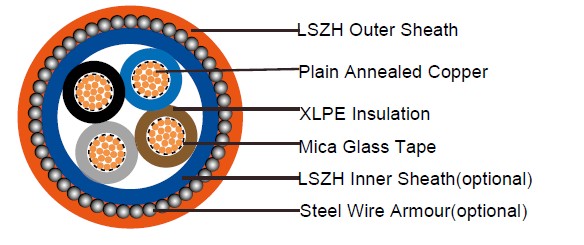

Construction

Conductor	Plain annealed copper wire, stranded according to IEC 60228 class 2
Insulation	Mica glass tape covered by extruded cross-linked XLPE compound
Earth Conductor(optional)	Uninsulated solid or stranded tinned copper conductor.
Cabling	The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.
Inner Sheath	Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1
Armouring	Galvanized steel wire armour
Outer Sheath	Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation Colour as per BS7671

	With Earth Conductor	Without Earth Conductor
2Cores	Brown, Blue
3Cores	Yellow/Green, Brown, Blue	Brown, Gray, Black
4Cores	Yellow/Green, Brown, Gray, Black	Brown, Gray, Black, Blue
5Cores	Yellow/Green, Brown, Gray, Black, Blue	Brown, Gray, Black, Blue, Black
above 5 Cores	Yellow/Green, Black Numbered	Black Numbered

Sheath Colour: Black (other colors upon request)

Physical and thermal properties

Temperature range during operation (fixed state)	-30°C – +90°C
Temperature range during installation (mobile state)	-20°C – +50°C
Minimum bending radius	8 x Overall Diameter

Electrical properties

Rated Voltage Uo/U (Um)	600/1000V
Dielectric test	3500 V r.m.s. x 5' (core/core)
Insulation resistance	20 MΩ x km (at 20°C)
Short circuit temperature	250°C

Dimensions and Weight

	Conductor	FFX400 1mRZ1MZ1-R
Cable Code	No./ Nominal Diameter of Strands	Nominal Insulation Thickness
Cable Code	No./ Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal Overall Diameter	Approx. Weight
	No./mm	mm	mm	kg/km
2 Cores
FFX400 1mRZ1MZ1-R 2G1.5	7/0.53	0.7	15.3	390
FFX400 1mRZ1MZ1-R 2G2.5	7/0.67	0.7	16.5	450
FFX400 1mRZ1MZ1-R 2G4	7/0.85	0.7	17.6	525
FFX400 1mRZ1MZ1-R 2G6	7/1.04	0.7	18.8	620
FFX400 1mRZ1MZ1-R 2G10	7/1.35	0.7	21	800
FFX400 1mRZ1MZ1-R 2G16	7/1.70	0.7	23	1100
FFX400 1mRZ1MZ1-R 2G25	7/2.14	0.9	27	1480
FFX400 1mRZ1MZ1-R 2G35	19/1.53	0.9	30	2000
FFX400 1mRZ1MZ1-R 2G50	19/1.78	1	33	2450
FFX400 1mRZ1MZ1-R 2G70	19/2.14	1.1	37	3200
FFX400 1mRZ1MZ1-R 2G95	19/2.52	1.1	42	4350
FFX400 1mRZ1MZ1-R 2G120	37/2.03	1.2	48	6500
3cores
FFX400 1mRZ1MZ1-R 3G1.5	7/0.53	0.7	16.5	420
FFX400 1mRZ1MZ1-R 3G2.5	7/0.67	0.7	17	500
FFX400 1mRZ1MZ1-R 3G4	7/0.85	0.7	18.5	600
FFX400 1mRZ1MZ1-R 3G6	7/1.04	0.7	19.8	785
FFX400 1mRZ1MZ1-R 3G10	7/1.35	0.7	22.6	1030
FFX400 1mRZ1MZ1-R 3G16	1/1.70	0.7	25	1370
FFX400 1mRZ1MZ1-R 3G25	7/2.14	0.9	29	1900
FFX400 1mRZ1MZ1-R 3G35	19/1.53	0.9	32	2300
FFX400 1mRZ1MZ1-R 3G50	19/1.78	1	35	2900
FFX400 1mRZ1MZ1-R 3G70	19/2.14	1.1	40	4000
FFX400 1mRZ1MZ1-R 3G95	19/2.52	1.1	45	5400
FFX400 1mRZ1MZ1-R 3G120	37/2.03	1.2	49	6450
FFX400 1mRZ1MZ1-R 3G150	37/2.25	1.4	55	8200
FFX400 1mRZ1MZ1-R 3G185	37/2.52	1.6	60	9800
FFX400 1mRZ1MZ1-R 3G240	61/2.25	1.7	68	12300
FFX400 1mRZ1MZ1-R 3G300	61/2.52	1.8	74	14800
FFX400 1mRZ1MZ1-R 3G400	61/2.85	2	83	17600
3cores+1core earth conductor
FFX400 1mRZ1MZ1-R 3G10+6	7/1.35	0.7	22.9	1100
FFX400 1mRZ1MZ1-R 3G16+10	7/1.70	0.7	25.7	1385
FFX400 1mRZ1MZ1-R 3G25+10	7/2.14	0.9	27.3	1980
FFX400 1mRZ1MZ1-R 3G25+16	7/2.14	0.9	29.8	2070
FFX400 1mRZ1MZ1-R 3G35+16	19/1.53	0.9	30.5	2190
FFX400 1mRZ1MZ1-R 3G35+25	19/1.53	0.9	32.8	2400
FFX400 1mRZ1MZ1-R 3G50+16	19/1.78	1	36	3100
FFX400 1mRZ1MZ1-R 3G50+25	19/1.78	1	36.6	3250
FFX400 1mRZ1MZ1-R 3G50+35	19/1.78	1	37.3	3360
FFX400 1mRZ1MZ1-R 3G70+16	19/2.14	1.1	38	3600
FFX400 1mRZ1MZ1-R 3G70+25	19/2.14	1.1	41	3990
FFX400 1mRZ1MZ1-R 3G70+35	19/2.14	1.1	42	4760
FFX400 1mRZ1MZ1-R 3G70+50	19/2.14	1.1	44	5120
FFX400 1mRZ1MZ1-R 3G95+16	19/2.52	1.1	45.8	5600
FFX400 1mRZ1MZ1-R 3G95+25	19/2.52	1.1	46.7	6150
FFX400 1mRZ1MZ1-R 3G95+35	19/2.52	1.1	47.2	6340
FFX400 1mRZ1MZ1-R 3G95+50	19/2.52	1.1	47.8	6500
FFX400 1mRZ1MZ1-R 3G120+35	37/2.03	1.2	49	6600
FFX400 1mRZ1MZ1-R 3G120+50	37/2.03	1.2	50.5	6990
FFX400 1mRZ1MZ1-R 3G120+70	37/2.03	1.2	51	7200
FFX400 1mRZ1MZ1-R 3G120+95	37/2.03	1.2	52.3	7600
FFX400 1mRZ1MZ1-R 3G150+50	37/2.25	1.4	57	9000
FFX400 1mRZ1MZ1-R 3G150+70	37/2.25	1.4	59	10600
FFX400 1mRZ1MZ1-R 3G150+95	37/2.25	1.4	60	10900
FFX400 1mRZ1MZ1-R 3G150+120	37/2.25	1.4	61	11100
FFX400 1mRZ1MZ1-R 3G185+70	37/2.52	1.6	63	11650
FFX400 1mRZ1MZ1-R 3G185+95	37/2.52	1.6	64	12000
FFX400 1mRZ1MZ1-R 3G185+120	37/2.52	1.6	65	12300
FFX400 1mRZ1MZ1-R 3G185+150	37/2.52	1.6	67	12700
FFX400 1mRZ1MZ1-R 3G240+70	61/2.25	1.7	70	12900
FFX400 1mRZ1MZ1-R 3G240+95	61/2.25	1.7	71	13500
FFX400 1mRZ1MZ1-R 3G240+120	61/2.25	1.7	73	14000
FFX400 1mRZ1MZ1-R 3G240+150	61/2.25	1.7	74	14700
FFX400 1mRZ1MZ1-R 3G300+95	61/2.52	1.8	75	15600
FFX400 1mRZ1MZ1-R 3G300+120	61/2.52	1.8	76	15720
FFX400 1mRZ1MZ1-R 3G300+150	61/2.52	1.8	77	16000
FFX400 1mRZ1MZ1-R 3G300+185	61/2.52	1.8	79	17560
FFX400 1mRZ1MZ1-R 3G300+240	61/2.52	1.8	86	18900
4cores
FFX400 1mRZ1MZ1-R 4G1.5	7/0.53	0.7	16	475
FFX400 1mRZ1MZ1-R 4G2.5	7/0.67	0.7	17.8	570
FFX400 1mRZ1MZ1-R 4G4	7/0.85	0.7	19.8	690
FFX400 1mRZ1MZ1-R 4G6	7/1.04	0.7	21	940
FFX400 1mRZ1MZ1-R 4G10	7/1.35	0.7	23.3	1200
FFX400 1mRZ1MZ1-R 4G16	1/1.70	0.7	26.5	1400
FFX400 1mRZ1MZ1-R 4G25	7/2.14	0.9	30.5	2400
FFX400 1mRZ1MZ1-R 4G35	19/1.53	0.9	34	2800
FFX400 1mRZ1MZ1-R 4G50	19/1.78	1	38	3500
FFX400 1mRZ1MZ1-R 4G70	19/2.14	1.1	44	5300
FFX400 1mRZ1MZ1-R 4G95	19/2.52	1.1	48.5	6700
FFX400 1mRZ1MZ1-R 4G120	37/2.03	1.2	54	8500
FFX400 1mRZ1MZ1-R 4G150	37/2.25	1.4	59	10000
FFX400 1mRZ1MZ1-R 4G185	37/2.52	1.6	64.5	12200
FFX400 1mRZ1MZ1-R 4G240	61/2.25	1.7	74	15400
FFX400 1mRZ1MZ1-R 4G300	61/2.52	1.8	82	19500
FFX400 1mRZ1MZ1-R 4G400	61/2.85	2	92	25500
4 cores+1core earth conductor
FFX400 1mRZ1MZ1-R 4G10+6	7/1.35	0.7	24	1300
FFX400 1mRZ1MZ1-R 4G16+10	7/1.70	0.7	26	1600
FFX400 1mRZ1MZ1-R 4G25+10	7/2.14	0.7	29	2015
FFX400 1mRZ1MZ1-R 4G25+16	7/2.14	0.7	32	2540
FFX400 1mRZ1MZ1-R 4G35+16	19/1.53	0.9	35	3000
FFX400 1mRZ1MZ1-R 4G35+25	19/1.53	0.9	35.6	3170
FFX400 1mRZ1MZ1-R 4G50+16	19/1.78	1	40	3800
FFX400 1mRZ1MZ1-R 4G50+25	19/1.78	1	41.4	4100
FFX400 1mRZ1MZ1-R 4G50+35	19/1.78	1	42.9	4350
FFX400 1mRZ1MZ1-R 4G70+16	19/2.14	1.1	45	6270
FFX400 1mRZ1MZ1-R 4G70+25	19/2.14	1.1	47	6900
FFX400 1mRZ1MZ1-R 4G70+35	19/2.14	1.1	48	7200
FFX400 1mRZ1MZ1-R 4G70+50	19/2.14	1.1	50	7600
FFX400 1mRZ1MZ1-R 4G95+16	19/2.52	1.1	51	8000
FFX400 1mRZ1MZ1-R 4G95+25	19/2.52	1.1	52	8100
FFX400 1mRZ1MZ1-R 4G95+35	19/2.52	1.1	53	8250
FFX400 1mRZ1MZ1-R 4G95+50	19/2.52	1.1	54	8390
FFX400 1mRZ1MZ1-R 4G120+35	37/2.03	1.2	54	8600
FFX400 1mRZ1MZ1-R 4G120+50	37/2.03	1.2	55	8800
FFX400 1mRZ1MZ1-R 4G120+70	37/2.03	1.2	56	9100
FFX400 1mRZ1MZ1-R 4G120+95	37/2.03	1.2	57	9400
FFX400 1mRZ1MZ1-R 4G150+50	37/2.25	1.4	61	10800
FFX400 1mRZ1MZ1-R 4G150+70	37/2.25	1.4	62	11100
FFX400 1mRZ1MZ1-R 4G150+95	37/2.25	1.4	64	11500
FFX400 1mRZ1MZ1-R 4G150+120	37/2.25	1.4	65	11900
FFX400 1mRZ1MZ1-R 4G185+70	37/2.52	1.6	66	12900
FFX400 1mRZ1MZ1-R 4G185+95	37/2.52	1.6	68	13600
FFX400 1mRZ1MZ1-R 4G185+120	37/2.52	1.6	70	14700
FFX400 1mRZ1MZ1-R 4G185+150	37/2.52	1.6	73	15500
FFX400 1mRZ1MZ1-R 4G240+70	61/2.25	1.7	76	16000
FFX400 1mRZ1MZ1-R 4G240+95	61/2.25	1.7	77	16900
FFX400 1mRZ1MZ1-R 4G240+120	61/2.25	1.7	78	17600
FFX400 1mRZ1MZ1-R 4G240+150	61/2.25	1.7	79	18200
FFX400 1mRZ1MZ1-R 4G300+95	61/2.52	1.8	81	19700
FFX400 1mRZ1MZ1-R 4G300+120	61/2.52	1.8	82	20700
FFX400 1mRZ1MZ1-R 4G300+150	61/2.52	1.8	84	21060
FFX400 1mRZ1MZ1-R 4G300+185	61/2.52	1.8	85	22170
FFX400 1mRZ1MZ1-R 4G300+240	61/2.52	1.8	87	24500
5 cores
FFX400 1mRZ1MZ1-R 5G1.5	7/0.53	0.7	18.8	558
FFX400 1mRZ1MZ1-R 5G2.5	7/0.67	0.7	20.9	670
FFX400 1mRZ1MZ1-R 5G4	7/0.85	0.7	23.3	811
FFX400 1mRZ1MZ1-R 5G6	7/1.04	0.7	24.7	1105
FFX400 1mRZ1MZ1-R 5G10	7/1.35	0.7	27.4	1410
FFX400 1mRZ1MZ1-R 5G16	1/1.70	0.7	31.1	1645
FFX400 1mRZ1MZ1-R 5G25	7/2.14	0.9	35.8	2820
FFX400 1mRZ1MZ1-R 5G35	19/1.53	0.9	40.0	3290
FFX400 1mRZ1MZ1-R 5G50	19/1.78	1	44.7	4113
FFX400 1mRZ1MZ1-R 5G70	19/2.14	1.1	51.7	6228
FFX400 1mRZ1MZ1-R 5G95	19/2.52	1.1	57.0	7873
FFX400 1mRZ1MZ1-R 5G120	37/2.03	1.2	63.5	9988
FFX400 1mRZ1MZ1-R 5G150	37/2.25	1.4	69.3	11750
FFX400 1mRZ1MZ1-R 5G185	37/2.52	1.6	75.8	14335
FFX400 1mRZ1MZ1-R 5G240	61/2.25	1.7	87.0	18095
FFX400 1mRZ1MZ1-R 5G300	61/2.52	1.8	96.4	22913
FFX400 1mRZ1MZ1-R 5G400	61/2.85	2	108.1	29963

If you have any questions please contact us.
