600/1000V XLPE Insulated, LSZH Sheathed, CUTO Screened, Armoured Cables to IEC 60502-1 (Single Core)
FTX300 1RCZ1MZ1-R (CU/XLPE/CUTO /LSZH/AWA/LSZH 600/1000V Class 2)
APPLICATION
600/1000V XLPE Insulated, LSZH Sheathed, CUTO Screened, Armoured Cables to IEC 60502-1 (Single Core) Power Cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.STANDARDS
Basic design adapted to IEC 60502-1
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

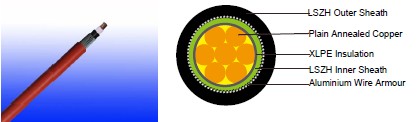

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner sheath: LSZH Compound
Armouring: Aluminium Wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting
LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
COLOUR CODE
Insulation Colour as per BS7671
| Witd Eartd Conductor | Witdout Eartd Conductor | |
| 2Cores | - | Brown, Blue |
| 3Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
| 4Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
| 5Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
| Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheatd Colour: Black (otder colors upon request)
PHYSICAL AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C - +90°C
Temperature Range During Installation (Mobile State): -5°C - +50°C
Minimum Bending Radius: 10 X Overall Diameter
ELECTRICAL PROPERTIES
| Dielectric test | 3500 V r.m.s. x 5' (core/core) |
| Insulation resistance | ≥1000 MΩ x km (at 20°C) |
| Short circuit temperature | 250°C |
CONSTRUCTION PARAMETERS
| No. of Core X Cross Section |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal bedding Thickness |
Diameter Under Screen |
Diameter Over Inner Sheath |
Armour Wire Diameter |
Nominal Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|---|---|---|
| No./mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 1x70 | 19/2.14 | 1.1 | 1.8 | 15.2 | 17.6 | 20.1 | 23.9 | 1400 |
| 1x95 | 19/2.52 | 1.1 | 1.8 | 17.1 | 19.5 | 22 | 25.8 | 1700 |
| 1x120 | 37/2.03 | 1.2 | 1.8 | 19 | 20.8 | 24 | 27.8 | 2000 |
| 1x150 | 37/2.25 | 1.4 | 1.8 | 21 | 22.8 | 26 | 29.8 | 2400 |
| 1x185 | 37/2.52 | 1.6 | 1.8 | 23.2 | 25 | 28.2 | 32 | 2800 |
| 1x240 | 61/2.25 | 1.7 | 1.9 | 26.1 | 27.9 | 31.1 | 35.1 | 3500 |
| 1x300 | 61/2.52 | 1.8 | 2 | 28.7 | 30.5 | 33.7 | 37.9 | 4200 |
| 1x400 | 61/2.85 | 2 | 2.1 | 32.5 | 34.3 | 38.3 | 42.7 | 5400 |
| 1x500 | 61/3.20 | 2.2 | 2.2 | 36 | 37.8 | 41.8 | 46.4 | 6500 |
| 1x630 | 127/2.52 | 2.4 | 2.3 | 40.4 | 42.2 | 46.2 | 51 | 8200 |
| 1x800 | 127/2.85 | 2.6 | 2.5 | 45.5 | 47.3 | 52.3 | 57.5 | 10400 |
| 1x1000 | 127/3.20 | 2.8 | 2.7 | 50.4 | 52.2 | 57.2 | 62.4 | 13000 |
