600/1000V XLPE Insulated, LSZH Sheathed, Unarmoured Cables to IEC 60502-1 (2-5 Cores & Multicore)
FTX400 1RZ1-R (CU/XLPE/LSZH 600/1000V Class 2)
APPLICATION
600/1000V XLPE Insulated, LSZH Sheathed, Unarmoured Cables to IE C 60502-1 (2-5 Cores & Multicore) are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.STANDARDS
Basic design adapted to IEC 60502-1
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

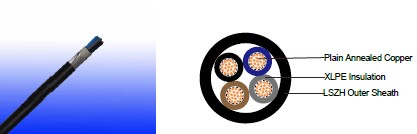

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting
LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
COLOUR CODE
Insulation Colour as per BS7671
| Witd Eartd Conductor | Witdout Eartd Conductor | |
| 2Cores | - | Brown, Blue |
| 3Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
| 4Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
| 5Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
| Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheatd Colour: Black (otder colors upon request)
PHYSICAL AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C - +90°C
Temperature Range During Installation (Mobile State): -5°C - +50°C
Minimum Bending Radius: 10 X Overall Diameter
ELECTRICAL PROPERTIES
| Dielectric test | 3500 V r.m.s. x 5' (core/core) |
| Insulation resistance | ≥1000 MΩ x km (at 20°C) |
| Short circuit temperature | 250°C |
CONSTRUCTION PARAMETERS
| No. of Core X Cross Section |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Overall Diameter | Approx. Weight |
|---|---|---|---|---|
| mm | mm | kg/km | ||
| 2x1.5 | 7/0.53 | 0.7 | 10 | 126 |
| 2x2.5 | 7/0.67 | 0.7 | 10.8 | 158 |
| 2x4 | 7/0.85 | 0.7 | 11.9 | 205 |
| 2x6 | 7/1.04 | 0.7 | 13 | 264 |
| 2x10 | 7/1.35 | 0.7 | 14.9 | 378 |
| 2x16 | 7/1.70 | 0.7 | 17 | 534 |
| 2x25 | 7/2.14 | 0.9 | 20.4 | 650 |
| 2x35 | 7/2.52 | 0.9 | 22.7 | 880 |
| 3x1.5 | 7/0.53 | 0.7 | 10.5 | 145 |
| 3x2.5 | 7/0.67 | 0.7 | 11.4 | 185 |
| 3x4 | 7/0.85 | 0.7 | 12.5 | 247 |
| 3x6 | 7/1.04 | 0.7 | 13.8 | 323 |
| 3x10 | 7/1.35 | 0.7 | 15.8 | 474 |
| 3x16 | 7/1.70 | 0.7 | 18 | 682 |
| 3x25 | 7/2.14 | 0.9 | 21.7 | 910 |
| 3x35 | 7/2.52 | 0.9 | 24 | 1180 |
| 3x50 | 19/1.78 | 1 | 25.5 | 1600 |
| 3x70 | 19/2.14 | 1.1 | 29 | 2240 |
| 3x95 | 19/2.52 | 1.1 | 33.5 | 3050 |
| 3x120 | 37/2.03 | 1.2 | 37.5 | 3800 |
| 3x150 | 37/2.25 | 1.4 | 40.5 | 4640 |
| 3x185 | 37/2.52 | 1.6 | 45 | 5870 |
| 3x240 | 61/2.25 | 1.7 | 50.5 | 7670 |
| 3x300 | 61/2.52 | 1.8 | 57 | 9460 |
| 3x400 | 61/2.85 | 2 | 63 | 11945 |
| 3x10/6 | 7/1.35 | 0.7 | 16.5 | 543 |
| 3x16/10 | 7/1.70 | 0.7 | 18.85 | 793 |
| 3x25/10 | 7/2.14 | 0.9 | 22.1 | 1021 |
| 3x25/16 | 7/2.14 | 0.9 | 23 | 1070 |
| 3x35/16 | 19/1.53 | 0.9 | 24.3 | 1349 |
| 3x35/25 | 19/1.53 | 0.9 | 25.2 | 1470 |
| 3x50/16 | 19/1.78 | 1 | 26.1 | 1769 |
| 3x50/25 | 19/1.78 | 1 | 27.3 | 1890 |
| 3x50/35 | 19/1.78 | 1 | 27.8 | 1995 |
| 3x70/25 | 19/2.14 | 1.1 | 30.2 | 2530 |
| 3x70/35 | 19/2.14 | 1.1 | 30.9 | 2660 |
| 3x70/50 | 19/2.14 | 1.1 | 31.5 | 2840 |
| 3x95/16 | 19/2.52 | 1.1 | 34.6 | 3240 |
| 3x95/25 | 19/2.52 | 1.1 | 35.1 | 3340 |
| 3x95/35 | 19/2.52 | 1.1 | 36 | 3470 |
| 3x95/50 | 19/2.52 | 1.1 | 36.8 | 3650 |
| 3x120/35 | 37/2.03 | 1.2 | 38.2 | 3920 |
| 3x120/50 | 37/2.03 | 1.2 | 39.1 | 4400 |
| 3x120/70 | 37/2.03 | 1.2 | 40 | 4610 |
| 3x120/95 | 37/2.03 | 1.2 | 41.2 | 4820 |
| 3x150/50 | 37/2.25 | 1.4 | 41.5 | 5240 |
| 3x150/50 | 37/2.25 | 1.4 | 42.3 | 5450 |
| 3x150/95 | 37/2.25 | 1.4 | 43.6 | 5660 |
| 3x150/120 | 37/2.25 | 1.4 | 44.8 | 6240 |
| 3x185/70 | 37/2.52 | 1.6 | 46 | 6470 |
| 3x185/95 | 37/2.52 | 1.6 | 47.5 | 6680 |
| 3x185/120 | 37/2.52 | 1.6 | 47.9 | 6990 |
| 3x185/150 | 37/2.52 | 1.6 | 48.5 | 7395 |
| 3x240/70 | 61/2.25 | 1.7 | 49.2 | 7580 |
| 3x240/95 | 61/2.25 | 1.7 | 52.3 | 8480 |
| 3x240/120 | 61/2.25 | 1.7 | 53.4 | 8690 |
| 3x240/150 | 61/2.25 | 1.7 | 54.9 | 9095 |
| 3x300/95 | 61/2.52 | 1.8 | 55.6 | 9380 |
| 3x300/120 | 61/2.52 | 1.8 | 58.1 | 10480 |
| 3x300/150 | 61/2.52 | 1.8 | 57.3 | 11170 |
| 3x300/185 | 61/2.52 | 1.8 | 58.7 | 11480 |
| 3x300/240 | 61/2.52 | 1.8 | 62.4 | 11290 |
| 4x1.5 | 7/0.53 | 0.7 | 11.3 | 169 |
| 4x2.5 | 7/0.67 | 0.7 | 12.3 | 220 |
| 4x4 | 7/0.85 | 0.7 | 13.6 | 297 |
| 4x6 | 7/1.04 | 0.7 | 15 | 392 |
| 4x10 | 7/1.35 | 0.7 | 17.2 | 585 |
| 4x16 | 7/1.70 | 0.7 | 19.7 | 851 |
| 4x25 | 7/2.14 | 0.9 | 23.9 | 1200 |
| 4x35(S) | 7/2.52 | 0.9 | 25 | 1600 |
| 4x50(S) | 19/1.78 | 1 | 28 | 2200 |
| 4x70(S) | 19/2.14 | 1.1 | 32 | 3050 |
| 4x95(S) | 19/2.52 | 1.1 | 37 | 4070 |
| 4x120(S) | 37/2.03 | 1.2 | 42 | 5915 |
| 4x150(S) | 37/2.25 | 1.4 | 46 | 6350 |
| 4x185(S) | 37/2.52 | 1.6 | 50 | 7890 |
| 4x240(S) | 61/2.25 | 1.7 | 57 | 10400 |
| 4x300(S) | 61/2.52 | 1.8 | 63 | 12810 |
| 4x400(S) | 61/2.85 | 2 | 71 | 15869 |
| 4x500(S) | 61/3.20 | 2.2 | 78 | 20300 |
| 4x10/6 | 7/1.35 | 0.7 | 19 | 654 |
| 4x16/10 | 7/1.70 | 0.7 | 21.95 | 962 |
| 4x25/10 | 7/2.14 | 0.7 | 26.65 | 1311 |
| 4x25/16 | 7/2.14 | 0.7 | 27.3 | 1369 |
| 4x35/16 | 19/1.53 | 0.9 | 27.6 | 1769 |
| 4x35/25 | 19/1.53 | 0.9 | 28.4 | 1890 |
| 4x50/16 | 19/1.78 | 1 | 29.4 | 2369 |
| 4x50/25 | 19/1.78 | 1 | 31.6 | 2490 |
| 4x50/35 | 19/1.78 | 1 | 33.6 | 3249 |
| 4x70/25 | 19/2.14 | 1.1 | 34.2 | 3340 |
| 4x70/35 | 19/2.14 | 1.1 | 35.6 | 3470 |
| 4x70/50 | 19/2.14 | 1.1 | 37.8 | 3650 |
| 4x95/16 | 19/2.52 | 1.1 | 41.5 | 4239 |
| 4x95/25 | 19/2.52 | 1.1 | 42.6 | 4360 |
| 4x95/35 | 19/2.52 | 1.1 | 43.3 | 4510 |
| 4x95/50 | 19/2.52 | 1.1 | 44.1 | 4670 |
| 4x120/35 | 37/2.03 | 1.2 | 42.6 | 6335 |
| 4x120/50 | 37/2.03 | 1.2 | 43.8 | 6515 |
| 4x120/70 | 37/2.03 | 1.2 | 45.9 | 6725 |
| 4x120/95 | 37/2.03 | 1.2 | 46.4 | 6920 |
| 4x150/70 | 37/2.25 | 1.4 | 47.3 | 6950 |
| 4x150/95 | 37/2.25 | 1.4 | 48.5 | 7160 |
| 4x150/120 | 37/2.25 | 1.4 | 50.2 | 7370 |
| 4x185/70 | 37/2.52 | 1.6 | 53.7 | 7965 |
| 4x185/95 | 37/2.52 | 1.6 | 52.4 | 8490 |
| 4x185/120 | 37/2.52 | 1.6 | 53.9 | 8700 |
| 4x185/150 | 37/2.52 | 1.6 | 55.6 | 8910 |
| 4x240/70 | 61/2.25 | 1.7 | 59.4 | 9260 |
| 4x240/95 | 61/2.25 | 1.7 | 59.4 | 9600 |
| 4x240/120 | 61/2.25 | 1.7 | 61.9 | 11210 |
| 4x240/150 | 61/2.25 | 1.7 | 63.4 | 11420 |
| 4x300/95 | 61/2.52 | 1.8 | 67.8 | 12010 |
| 4x300/120 | 61/2.52 | 1.8 | 64 | 12110 |
| 4x300/150 | 61/2.52 | 1.8 | 66.1 | 13830 |
| 4x300/185 | 61/2.52 | 1.8 | 71.5 | 14520 |
| 4x300/240 | 61/2.52 | 1.8 | 72 | 14830 |
| 5x1.5 | 7/0.53 | 0.7 | 13.7 | 205 |
| 5x2.5 | 7/0.67 | 0.7 | 14.9 | 265 |
| 5x4 | 7/0.85 | 0.7 | 16.3 | 360 |
| 5x6 | 7/1.04 | 0.7 | 18.2 | 478 |
| 5x10 | 7/1.35 | 0.7 | 20.8 | 720 |
| 5x16 | 7/1.70 | 0.7 | 24.2 | 1050 |
| 5x25 | 7/2.14 | 0.9 | 29.4 | 1485 |
| 5x35 | 19/1.53 | 0.9 | 30.3 | 1940 |
| 5x50 | 19/1.78 | 1 | 34 | 2667 |
| 5x70 | 19/2.14 | 1.1 | 38.5 | 3698 |
| 5x95 | 19/2.52 | 1.1 | 44.6 | 4934 |
| 5x120 | 37/2.03 | 1.2 | 5.8 | 7171 |
| 5x150 | 37/2.25 | 1.4 | 55.6 | 7699 |
| 5x185 | 37/2.52 | 1.6 | 60.4 | 9566 |
| 5x240 | 61/2.25 | 1.7 | 69.1 | 12610 |
| 5x300 | 61/2.52 | 1.8 | 76.4 | 15532 |
| 5x400 | 61/2.85 | 2 | 86.1 | 19241 |
| (S) - Sectoral Stranded Conductors | ||||
| 7x1.5 | 7/0.53 | 0.7 | 12.4 | 225 |
| 7x2.5 | 7/0.67 | 0.7 | 13.8 | 303 |
| 7x4 | 7/0.85 | 0.7 | 15.5 | 422 |
| 10x1.5 | 7/0.53 | 0.7 | 15.6 | 325 |
| 10x2.5 | 7/0.67 | 0.7 | 17.5 | 426 |
| 10x4 | 7/0.85 | 0.7 | 19.7 | 597 |
| 12x1.5 | 7/0.53 | 0.7 | 16.2 | 370 |
| 12x2.5 | 7/0.67 | 0.7 | 18.1 | 489 |
| 12x4 | 7/0.85 | 0.7 | 20.3 | 690 |
| 19x1.5 | 7/0.53 | 0.7 | 19 | 516 |
| 19x2.5 | 7/0.67 | 0.7 | 21.3 | 725 |
| 19x4 | 7/0.85 | 0.7 | 24 | 1037 |
| 27x1.5 | 7/0.53 | 0.7 | 22.7 | 712 |
| 27x2.5 | 7/0.67 | 0.7 | 25.5 | 1004 |
| 27x4 | 7/0.85 | 0.7 | 28.8 | 1445 |
| 37x1.5 | 7/0.53 | 0.7 | 25.5 | 941 |
| 37x2.5 | 7/0.67 | 0.7 | 28.7 | 1334 |
| 37x4 | 7/0.85 | 0.7 | 32.5 | 1932 |
| 48x1.5 | 7/0.53 | 0.7 | 29 | 1186 |
| 48x2.5 | 7/0.67 | 0.7 | 32.9 | 1706 |
| 48x4 | 7/0.85 | 0.7 | 37.3 | 2479 |
