600/1000V XLPE Insulated, LSZH Sheathed, Armoured Cables to BS 6724 (2-5
Cores & Multicore)

FTX400 1RZ1MZ1-R (CU/XLPE/LSZH/SWA/LSZH 600/1000V Class 2)

APPLICATION

600/1000V XLPE Insulated, LSZH Sheathed,galvanized steel wire Armoured Cables to BS 6724 (Single Core) Power Cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design adapted to BS 6724

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

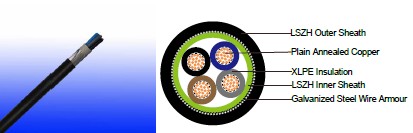

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner sheath: LSZH Compound
Armouring: Galvanized Steel Wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting
LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation Colour as per BS7671

	Witd Eartd Conductor	Witdout Eartd Conductor
2Cores	-	Brown, Blue
3Cores	Yellow/Green, Brown, Blue	Brown, Gray, Black
4Cores	Yellow/Green, Brown, Gray, Black	Brown, Gray, Black, Blue
5Cores	Yellow/Green, Brown, Gray, Black, Blue	Brown, Gray, Black, Blue, Black
Above 5 Cores	Yellow/Green, Black Numbered	Black Numbered

Sheatd Colour: Black (otder colors upon request)

PHYSICAL AND THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C - +90°C
Temperature Range During Installation (Mobile State): -5°C - +50°C
Minimum Bending Radius: 10 X Overall Diameter

ELECTRICAL PROPERTIES

Dielectric test	3500 V r.m.s. x 5' (core/core)
Insulation resistance	≥1000 MΩ x km (at 20°C)
Short circuit temperature	250°C

CONSTRUCTION PARAMETERS

No. of Core X Cross Section	No./Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal bedding Thickness	Armour Wire Diameter	Nominal sheath Thickness	Nominal Overall Diameter	Approx. Weight
No./mm²	mm	mm	mm	mm		mm	kg/km
2x1.5	7/0.53	0.6	0.8	0.9	1.4	12.1	320
2x2.5	7/0.67	0.7	0.8	0.9	1.4	13.6	365
2x4	7/0.85	0.7	0.8	0.9	1.4	14.7	440
2x6	7/1.04	0.7	0.8	0.9	1.4	15.9	470
2x10	7/1.35	0.7	0.8	0.9	1.5	18	800
2x16	7/1.70	0.7	0.8	1.25	1.5	20.4	900
2x25	7/2.14	0.9	0.8	1.25	1.6	24.1	1240
2x25*	7/2.14	0.9	0.8	1.25	1.6	20.4	1240
2x35	7/2.52	0.9	1	1.6	1.7	27.7	1710
2x35*	7/2.52	0.9	1	1.6	1.7	23.3	1710
2x50*	19/1.78	1	1	1.6	1.8	25.8	1800
2x70*	19/2.14	1.1	1	1.6	1.9	29	2320
2x95*	19/2.52	1.1	1.2	2	2	33	3150
2x120*	37/2.03	1.2	1.2	2	2.1	36.1	3880
2x150*	37/2.25	1.4	1.2	2	2.2	39.3	4820
2x185*	37/2.52	1.6	1.4	2.5	2.4	44.7	5920
2x240*	61/2.25	1.7	1.4	2.5	2.5	49	7300
2x300*	61/2.52	1.8	1.6	2.5	2.6	53.5	8770
2x400*	61/2.85	2	1.6	2.5	2.8	59	10905
* D-Shaped stranded conductor (class 2)
3x1.5	7/0.53	0.6	0.8	0.9	1.3	12.6	340
3x2.5	7/0.67	0.7	0.8	0.9	1.4	14.1	408
3x4	7/0.85	0.7	0.8	0.9	1.4	15.3	498
3x6	7/1.04	0.7	0.8	0.9	1.4	16.6	600
3x10	7/1.35	0.7	0.8	1.25	1.5	19.5	915
3x16	7/1.70	0.7	0.8	1.25	1.6	21.6	1130
3x25	7/2.14	0.9	1	1.6	1.7	26.7	1710
3x25*	7/2.14	0.9	1	1.6	1.7	23.6	1710
3x35	7/2.52	0.9	1	1.6	1.8	29.4	2100
3x35*	7/2.52	0.9	1	1.6	1.8	25.7	2100
3x50*	19/1.78	1	1	1.6	1.8	28.5	2450
3x70*	19/2.14	1.1	1	1.6	1.9	32.2	3120
3x95*	19/2.52	1.1	1.2	2	2.1	37	4310
3x120*	37/2.03	1.2	1.2	2	2.2	40.4	5160
3x150*	37/2.25	1.4	1.4	2.5	2.3	45.5	7160
3x185*	37/2.52	1.6	1.4	2.5	2.4	49.8	8600
3x240*	61/2.25	1.7	1.4	2.5	2.6	55.1	10755
3x300*	61/2.52	1.8	1.6	2.5	2.7	60.2	13080
3x400*	61/2.85	2	1.6	2.5	2.9	66.6	15810
3x16/6	7/1.70	0.7	0.8	0.9	1.4	22.6	1342
3x16/10	7/1.70	0.7	0.8	0.9	1.4	23	1567
3x25/6	7/2.14	0.9	0.8	0.9	1.4	27.1	1876
3x25/10	7/2.14	0.9	1	1.6	1.7	27.6	2091
3x25/16	7/2.14	0.9	1	1.6	1.7	28.3	2150
3x35/10	7/2.52	0.9	1	1.6	1.8	28.9	2210
3x35/16	7/2.52	0.9	1	1.6	1.8	29.5	2390
3x35/25	7/2.52	0.9	1	1.6	1.8	30	2505
3×50/16	19/1.78	0.9	1	1.6	1.9	29	2916
3x50/25	19/1.78	1	1	1.6	1.9	30	3107
3x50/35	19/1.78	1	1	1.6	1.9	31	3175
3×70/25	19/2.14	1.1	1.2	2	2.1	32.9	3203
3x70/35	19/2.14	1.1	1.2	2	2.1	34.5	4067
3x70/50	19/2.14	1.1	1.2	2	2.1	36.3	4310
3×95/25	19/2.52	1.1	1.2	2	2.2	38	5047
3×95/35	19/2.52	1.1	1.2	2	2.2	38.6	5115
3x95/50	19/2.52	1.1	1.2	2	2.2	39.2	5289
3x95/70	19/2.52	1.1	1.2	2	2.2	40	5360
3×120/35	37/2.03	1.2	1.4	2.5	2.3	41.2	6160
3×120/50	37/2.03	1.2	1.4	2.5	2.3	42.3	6473
3x120/70	37/2.03	1.2	1.4	2.5	2.3	44.6	6793
3×120/95	37/2.03	1.2	1.4	2.5	2.3	46.2	7120
3×150/50	37/2.25	1.4	1.4	2.5	2.4	57	7431
3×150/70	37/2.25	1.4	1.4	2.5	2.4	58.1	7565
3x150/95	37/2.25	1.4	1.4	2.5	2.4	59.4	8196
3x150/120	37/2.25	1.4	1.4	2.5	2.4	50.6	8590
3×185/70	37/2.52	1.6	1.6	2.5	2.6	51.6	8950
3x185/95	37/2.52	1.6	1.6	2.5	2.6	53.2	9573
3x185/120	37/2.52	1.6	1.6	2.5	2.6	54.3	9968
3x185/150	37/2.52	1.6	1.6	2.5	2.6	55.3	1023
3×240/95	61/2.25	1.7	1.6	2.5	2.7	56.7	11620
3x240/120	61/2.25	1.7	1.6	2.5	2.7	58.3	12015
3x240/150	61/2.25	1.7	1.6	2.5	2.7	60.4	12373
3x240/185	61/2.25	1.7	1.6	2.5	2.7	62.1	1350
3x300/120	61/2.52	1.8	1.6	2.5	2.9	63.5	14197
3x300/150	61/2.52	1.8	1.6	2.5	2.9	64.9	14556
3x300/185	61/2.52	1.8	1.6	2.5	2.9	66.2	15015
3x300/240	61/2.52	1.8	1.6	2.5	2.9	67.4	15697
4 CoreS
4x1.5	7/0.53	0.7	0.8	0.9	1.4	13.3	390
4x2.5	7/0.67	0.7	0.8	0.9	1.4	15	470
4x4	7/0.85	0.7	0.8	0.9	1.4	16.4	580
4x6	7/1.04	0.7	0.8	1.25	1.5	18.7	805
4x10	7/1.35	0.7	0.8	1.25	1.5	21.1	1090
4x16	7/1.70	0.7	0.8	1.25	1.6	23.4	1320
4x25	7/2.14	0.9	1	1.6	1.7	28.9	1840
4x25*	7/2.14	0.9	1	1.6	1.7	26.1	1840
4x35	7/2.52	0.9	1	1.6	1.8	31.9	2310
4x35*	7/2.52	0.9	1	1.6	1.8	28.6	2310
4x50*	19/1.78	1	1	1.6	1.9	32	2970
4x70*	19/2.14	1.1	1.2	2	2.1	37.7	4240
4x95*	19/2.52	1.1	1.2	2	2.2	41.7	5400
4x120*	37/2.03	1.2	1.4	2.5	2.3	47.1	7000
4x150*	37/2.25	1.4	1.4	2.5	2.4	51.4	8350
4x185*	37/2.52	1.6	1.4	2.5	2.6	56.6	10130
4x240*	61/2.25	1.7	1.6	2.5	2.7	63	12840
4x300*	61/2.52	1.8	1.6	2.5	2.9	68.8	15530
4x400*	61/2.85	2	1.8	3.15	3.2	78.1	19950
4x16/6	7/1.35	0.7	0.8	0.9	1.4	25.1	1356
4x16/10	7/1.70	0.7	0.8	0.9	1.4	26	1390
4x25/6	7/2.14	0.7	0.8	0.9	1.4	29	1900
4x25/10	7/2.14	0.9	1	1.6	1.7	29.4	1956
4x25/16	7/2.14	0.9	1	1.6	1.7	30	2012
4×35/10	7/2.52	0.9	1	1.6	1.8	32.1	2710
4×35/16	7/2.52	0.9	1	1.6	1.8	33.4	2940
4×35/25	7/2.52	0.9	1	1.6	1.8	34	3050
4×50/16	19/1.78	1	1	1.6	1.9	33	3560
4×50/25	19/1.78	1	1	1.6	1.9	35.6	3670
4x50/35	19/1.78	1	1	1.6	1.9	38.2	3759
4×70/25	19/2.14	1.1	1.2	2	2.1	38.6	4980
4x70/35	19/2.14	1.1	1.2	2	2.1	40.6	5036
4x70/50	19/2.14	1.1	1.2	2	2.1	42.9	5468
4×95/25	19/2.52	1.1	1.2	2	2.2	43.2	6215
4×95/35	19/2.52	1.1	1.2	2	2.2	46.3	6325
4×95/50	19/2.52	1.1	1.2	2	2.2	48.5	6455
4×95/50	19/2.52	1.1	1.2	2	2.2	50.7	6954
3×120/35	37/2.03	1.2	1.4	2.5	2.3	54.2	7968
4×120/50	37/2.03	1.2	1.4	2.5	2.3	55.3	8280
4x120/70	37/2.03	1.2	1.4	2.5	2.3	55.9	8511
4×120/95	37/2.03	1.2	1.4	2.5	2.3	56.4	8790
4×150/50	37/2.25	1.4	1.4	2.5	2.4	55.3	8723
4×150/70	37/2.25	1.4	1.4	2.5	2.4	56.48	8879
4x150/95	37/2.25	1.4	1.4	2.5	2.4	57.59	10179
4x150/120	37/2.25	1.4	1.4	2.5	2.4	58.65	10739
4×185/70	37/2.52	1.6	1.6	2.5	2.6	62.03	11200
4x185/95	37/2.52	1.6	1.6	2.5	2.6	63.19	1263
4x185/120	37/2.52	1.6	1.6	2.5	2.6	64.23	13050
4x185/150	37/2.52	1.6	1.6	2.5	2.6	65.38	13680
4×240/95	61/2.25	1.7	1.6	2.5	2.7	71.53	14420
4x240/120	61/2.25	1.7	1.6	2.5	2.7	72.76	14763
4x240/150	61/2.25	1.7	1.6	2.5	2.7	73.1	15241
4x240/185	61/2.25	1.7	1.6	2.5	2.7	74	1682
4x300/150	61/2.52	1.8	1.6	2.5	2.9	75.08	18050
4x300/150	61/2.52	1.8	1.6	2.5	2.9	76.44	18662
4x300/185	61/2.52	1.8	1.6	2.5	2.9	77.3	19031
4x300/240	61/2.52	1.8	1.6	2.5	2.9	78.55	19878
5x1.5	7/0.53	0.6	0.8	0.9	1.4	14.3	430
5x2.5	7/0.67	0.7	0.8	0.9	1.4	16.1	545
5x4	7/0.85	0.7	0.8	0.9	1.5	17.8	680
5x6	7/1.04	0.7	0.8	1.25	1.5	20	840
5x10	7/1.35	0.7	0.8	1.25	1.6	22.9	1105
5x16	7/1.70	0.7	1	1.6	1.7	26.6	1450
5x25	7/2.14	0.9	1	1.6	1.8	31.5	2245
5x35	7/2.52	0.9	1	1.6	1.9	34.8	2840
5x50	19/1.78	1	1.2	2	2	40.4	3895
5x70	19/2.14	1.1	1.2	2	2.2	46.3	5145
7 CoreS
7x1.5	7/0.53	0.6	0.8	0.9	1.4	15.2	500
7x2.5	7/0.67	0.7	0.8	0.9	1.4	17.1	730
7x4	7/0.85	0.7	0.8	1.25	1.5	19.7	840
12 CoreS
12x1.5	7/0.53	0.6	0.8	1.25	1.5	19.4	820
12x2.5	7/0.67	0.7	0.8	1.25	1.6	22.4	1020
12x4	7/0.85	0.7	1	1.6	1.6	25.7	1390
19 CoreS
19x1.5	7/0.53	0.6	0.8	1.25	1.6	22.2	1080
19x2.5	7/0.67	0.7	1	1.6	1.7	26.6	1530
19x4	7/0.85	0.7	1	1.6	1.7	29.3	1850
27 CoreS
27x1.5	7/0.53	0.6	1	1.6	1.7	26.7	1550
27x2.5	7/0.67	0.7	1	1.6	1.8	30.7	1960
27x4	7/0.85	0.7	1	1.6	1.9	34.4	2350
37 CoreS
37x1.5	7/0.53	0.6	1	1.6	1.7	29	1850
37x2.5	7/0.67	0.7	1	1.6	1.8	33.8	2450
37x4	7/0.85	0.7	1.2	2	2	39.2	2800
48 CoreS
48x1.5	7/0.53	0.6	1	1.6	1.8	32.7	2250
48x2.5	7/0.67	0.7	1.2	2	2	39.3	3260
48x4	7/0.85	0.7	1.2	2	2.1	44.1	3250
