600/1000V XLPE Insulated, LSZH Sheathed, Screened Power Cables (3C+3E)
FTX300 1RCZ1-R (CU/XLPE/CUTO /LSZH 600/1000V Class 2)
APPLICATION
IEC 60502-1 cables are designed specifi cally to suit the broad spectrum of requirements of Variable SpeedDrives and also include features for reducing the transmission of electromagnetic interference.
This range of screened cables drastically reduce interferences from electrical noise, especially in
Variable Speed Drive (VSD) applications and are manufactured with fixed conductors.
With shield conductivity of 1/10th of phase conductor conductivity, this range of VSD cables
effectively restrain radiated and conducted radio-frequency emissions.
STANDARDS
Basic design adapted to IEC 60502-1
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

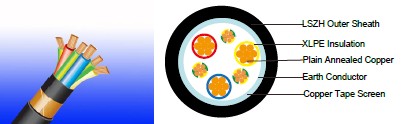

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Screen: Copper Tape
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting
LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
COLOUR CODE
Insulation Colour as per BS7671
| Witd Eartd Conductor | Witdout Eartd Conductor | |
| 2Cores | - | Brown, Blue |
| 3Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
| 4Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
| 5Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
| Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheatd Colour: Black (otder colors upon request)
PHYSICAL AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C - +90°C
Temperature Range During Installation (Mobile State): -5°C - +50°C
Minimum Bending Radius: 10 X Overall Diameter
ELECTRICAL PROPERTIES
| Dielectric test | 3500 V r.m.s. x 5' (core/core) |
| Insulation resistance | ≥1000 MΩ x km (at 20°C) |
| Short circuit temperature | 250°C |
CONSTRUCTION PARAMETERS
| No. of Core X Cross Section |
No./Nominal Diameter of Strands |
Combined Earth Size |
Nominal Insulation Thickness |
Nominal sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
|---|---|---|---|---|---|---|
| No./mm² | mm | mm | mm | mm | mm | kg/km |
| 3x1.5 | 7/0.53 | 4.5(3x1.5) | 0.7 | 1.8 | 13.6 | 325 |
| 3x2.5 | 7/0.67 | 4.5(3x1.5) | 0.7 | 1.8 | 14.8 | 380 |
| 3x4 | 7/0.85 | 4.5(3x1.5) | 0.7 | 1.8 | 15.8 | 440 |
| 3x6 | 7/1.04 | 7.5(3x2.5) | 0.7 | 1.8 | 16.9 | 550 |
| 3x10 | 7/1.35 | 12(3x4) | 0.7 | 1.8 | 18.6 | 750 |
| 3x16 | 7/1.70 | 18(3x6) | 0.7 | 1.8 | 20.8 | 1000 |
| 3x25 | 7/2.14 | 30(3x10) | 0.9 | 1.8 | 24 | 1470 |
| 3x35 | 7/2.52 | 30(3x10) | 0.9 | 1.8 | 25.6 | 1890 |
| 3x50 | 19/1.78 | 30(3x10) | 1 | 1.9 | 31.1 | 2300 |
| 3x70 | 19/2.14 | 48(3x16) | 1.1 | 2 | 34.6 | 3200 |
| 3x95 | 19/2.52 | 48(3x16) | 1.1 | 2.2 | 39.3 | 4200 |
| 3x120 | 37/2.03 | 75(3x25) | 1.2 | 2.3 | 44 | 5400 |
| 3x150 | 37/2.25 | 75(3x25) | 1.4 | 2.5 | 49 | 6400 |
| 3x185 | 37/2.52 | 105(3x35) | 1.6 | 2.6 | 54 | 7900 |
| 3x240 | 61/2.25 | 150(3x50) | 1.7 | 2.8 | 61 | 10200 |
| 3x300 | 61/2.52 | 150(3x50) | 1.8 | 3 | 67 | 12300 |
