600/1000V XLPE Insulated, LSZH Sheathed, Double steel tape Armoured Power
Cables (3C+E)

FTX400 1RZ1MZ1-R (CU/XLPE/LSZH/DSTA /LSZH 600/1000V Class 2)

APPLICATION

IEC 60502-1 3C+E cores 600/1000V XLPE Insulated, LSZH Sheathed, Double steel tape armoured Power
Cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

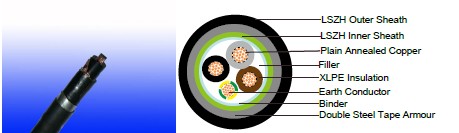

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner Sheath: LSZH compound.
Armouring: Double steel tape
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting
LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation Colour as per BS7671

	Witd Eartd Conductor	Witdout Eartd Conductor
2Cores	-	Brown, Blue
3Cores	Yellow/Green, Brown, Blue	Brown, Gray, Black
4Cores	Yellow/Green, Brown, Gray, Black	Brown, Gray, Black, Blue
5Cores	Yellow/Green, Brown, Gray, Black, Blue	Brown, Gray, Black, Blue, Black
Above 5 Cores	Yellow/Green, Black Numbered	Black Numbered

Sheatd Colour: Black (otder colors upon request)

PHYSICAL AND THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C - +90°C
Temperature Range During Installation (Mobile State): -5°C - +50°C
Minimum Bending Radius: 10 X Overall Diameter

ELECTRICAL PROPERTIES

Dielectric test	3500 V r.m.s. x 5' (core/core)
Insulation resistance	≥1000 MΩ x km (at 20°C)
Short circuit temperature	250°C

CONSTRUCTION PARAMETERS

	No./ Diameter of Strands		Nominal Diameter Conducrtor		Nominal Insulation Thickness
No. of Core X Cross Section	Phases	Neutral	Phases	Neutral	Phases	Neutral	Nominal Steel Tape Thickness	Nominal sheath Thickness	Nominal Overall Diameter	Approx. Weight
No./mm²	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km
3x10/6	7/1.35	7/1.04	3.75	2.9	0.7	0.7	0.2	1.8	20.1	740
3x16/10	7/1.70	7/1.35	4.75	3.75	0.7	0.7	0.2	1.8	22.5	1,004
3x25/16	7/2.14	7/1.70	5.85	4.75	0.9	0.7	0.2	1.8	25.8	1,421
3x35/16	7/2.52	7/1.70	6.9	4.75	0.9	0.7	0.2	1.8	27.7	1,745
3x35/25	7/2.52	7/2.14	6.9	5.85	0.9	0.9	0.2	1.8	28.6	1,864
3x50/25	19/1.78	7/2.14	8.15	5.85	1	0.9	0.2	1.8	31.3	2,358
3x50/35	19/1.78	7/2.52	8.15	6.9	1	0.9	0.2	1.9	32	2.72
3x70/35	19/2.14	7/2.52	9.75	6.9	1.1	0.9	0.2	2	35.9	3166
3x70/50	19/2.14	19/1.78	9.75	8.15	1.1	1	0.2	2	36.8	3.341
3x95/50	19/2.52	19/1.78	11.4	8.15	1.1	1	0.5	2.1	41.4	4,611
3x120/70	37/2.03	19/2.14	12.8	9.75	1.2	1.1	0.5	2.3	45.6	5682
3x150/95	37/2.25	19/2.52	14.3	11.4	1.4	1.1	0.5	2.4	50.8	7,072
3x150/120	37/2.25	37/2.03	14.3	12.8	1.4	1.2	0.5	2.5	51.8	7,357
3x185/95	37/2.52	19/2.52	15.9	11.4	1.6	1.1	0.5	2.6	54.7	8,348
3x185/120	37/2.52	37/2.03	15.9	12.8	1.6	1.2	0.5	2.6	55.8	8638
3x240/120	61/2.25	37/2.03	18.2	12.8	1.7	1.2	0.5	2.7	61	10,660
3x240/150	61/2.25	37/2.25	18.2	14.3	1.7	1.4	0.5	2.8	62.2	11024
3x300/150	61/2.52	37/2.25	20.4	14.3	1.8	1.4	0.5	2.9	66.8	12,809
3x300/185	61/2.52	37/2.52	20.4	15.9	1.8	1.6	0.5	3	68.1	13,256
