XL PE Insulated, LS ZH Sheathed & Overall Screened Instrumentation Cables
(Multipair)

RE-2X(St)H

APPLICATION

The unarmoured LSZH sheathed (Part 1 Type 1) cables RE-2X(St)H are generally use for indoor installation
and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

BS 5308 Part 1 Type 1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

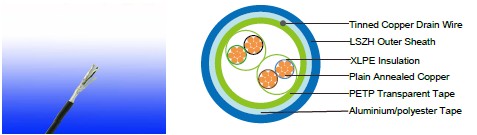

CABLE CONSTRUCTION

Conductor: Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5),
1.5mm², multistranded(Class 2) to BS6360.
Insulation: Extruded cross-linked XLPE compound.
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting
LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation Colour: See technical information
Outer Sheath: Black or blue

PHYSICAL AND THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -20°C – +50°C
Minimum Bending Radius: 5 X Overall Diameter

ELECTRICAL PROPERTIES

Conductor Area Size	mm 2	0.5	0.5	0.75	1	1.5
Conductor Stranding	No. x mm	1 x 0.8	16 x 0.2	24 x 0.2	1 x 1.13	7 x 0.53
Conductor Resistance Max.	ohm/km	36.8	39.7	26.5	18.2	12.3
Insulation Resistance Min.	Gohm/ km	5	5	5	5	5
Capacitance Unbalance @ 1 Khz(Pair To Pair Screen)	pF/250m	250
Max. Mutual Capacitance @ 1 Khz for non OS or OSCables (Except 1 Pair and 2 Pairs)	pF/m	75	75	75	75	85
Max. Mutual Capacitance @ 1 Khz for IS/OS Cables (Include 1 Pair and 2 Pairs)	pF/m	115	115	115	115	115
Max. L/R Ratio For Adjacent Cores(Inductance/Resistance)	μH/ohm	25	25	25	25	40
Test Voltage Core to Core	V	1000	1000	1000	1000	1000
Core to Screen	V	1000	1000	1000	1000	1000

CONSTRUCTION PARAMETERS

Cable Code	No. of Pairs	No./Nominal Diameter of Strands	Nominal Conductor Cross- Section Area	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Approx. Weight
RE-2X(St)H 1×2×0.5 1/0.8	1	1/0.80	0.5	0.5	0.8	5.5	35
RE-2X(St)H 2×2×0.5 1/0.8	2	1/0.80	0.5	0.5	0.8	6.8	55
RE-2X(St)H 5×2×0.5 1/0.8	5	1/0.80	0.5	0.5	1.1	10.9	125
RE-2X(St)H 10×2×0.5 1/0.8	10	1/0.80	0.5	0.5	1.2	14.4	215
RE-2X(St)H 15×2×0.5 1/0.8	15	1/0.80	0.5	0.5	1.2	16.5	300
RE-2X(St)H 20×2×0.5 1/0.8	20	1/0.80	0.5	0.5	1.3	18.8	385
RE-2X(St)H 30×2×0.5 1/0.8	30	1/0.80	0.5	0.5	1.3	22.3	545
RE-2X(St)H 50×2×0.5 1/0.8	50	1/0.80	0.5	0.5	1.5	28.5	875
RE-2X(St)H 1×2×0.5 16/0.2	1	16/0.20	0.5	0.6	0.8	6.2	60
RE-2X(St)H 2×2×0.5 16/0.2	2	16/0.20	0.5	0.6	0.8	7.6	80
RE-2X(St)H 5×2×0.5 16/0.2	5	16/0.20	0.5	0.6	1.1	12.4	210
RE-2X(St)H 10×2×0.5 16/0.2	10	16/0.20	0.5	0.6	1.2	16.5	340
RE-2X(St)H 15×2×0.5 16/0.2	15	16/0.20	0.5	0.6	1.3	19.2	440
RE-2X(St)H 20×2×0.5 16/0.2	20	16/0.20	0.5	0.6	1.3	21.7	570
RE-2X(St)H 30×2×0.5 16/0.2	30	16/0.20	0.5	0.6	1.5	26.4	780
RE-2X(St)H 50×2×0.5 16/0.2	50	16/0.20	0.5	0.6	1.7	33.4	1130
RE-2X(St)H 1×2×0.75 24/0.2	1	24/0.2	0.75	0.6	0.8	6.7	75
RE-2X(St)H 2×2×0.75 24/0.2	2	24/0.2	0.75	0.6	0.9	8.4	100
RE-2X(St)H 5×2×0.75 24/0.2	5	24/0.2	0.75	0.6	1.2	13.8	250
RE-2X(St)H 10×2×0.75 24/0.2	10	24/0.2	0.75	0.6	1.3	18.4	450
RE-2X(St)H 15×2×0.75 24/0.2	15	24/0.2	0.75	0.6	1.5	21.1	600
RE-2X(St)H 20×2×0.75 24/0.2	20	24/0.2	0.75	0.6	1.5	24.4	920
RE-2X(St)H 30×2×0.75 24/0.2	30	24/0.2	0.75	0.6	1.7	29.5	980
RE-2X(St)H 50×2×0.75 24/0.2	50	24/0.2	0.75	0.6	2	37.6	1690
RE-2X(St)H 1×2×1 1/1.13	1	1/1.13	1	0.6	0.8	6.6	85
RE-2X(St)H 2×2×1 1/1.13	2	1/1.13	1	0.6	0.8	8	115
RE-2X(St)H 5×2×1 1/1.13	5	1/1.13	1	0.6	1.2	13.5	290
RE-2X(St)H 10×2×1 1/1.13	10	1/1.13	1	0.6	1.2	17.7	500
RE-2X(St)H 15×2×1 1/1.13	15	1/1.13	1	0.6	1.3	20.6	670
RE-2X(St)H 20×2×1 1/1.13	20	1/1.13	1	0.6	1.5	23.8	950
RE-2X(St)H 30×2×1 1/1.13	30	1/1.13	1	0.6	1.5	28.4	1030
RE-2X(St)H 50×2×1 1/1.13	50	1/1.13	1	0.6	2	36.6	1750
RE-2X(St)H 1×2×1.5 7/0.53	1	7/0.53	1.5	0.6	0.8	7.5	100
RE-2X(St)H 2×2×1.5 7/0.53	2	7/0.53	1.5	0.6	0.9	9.3	150
RE-2X(St)H 5×2×1.5 7/0.53	5	7/0.53	1.5	0.6	1.2	15.6	360
RE-2X(St)H 10×2×1.5 7/0.53	10	7/0.53	1.5	0.6	1.3	20.9	690
RE-2X(St)H 15×2×1.5 7/0.53	15	7/0.53	1.5	0.6	1.5	24.6	880
RE-2X(St)H 20×2×1.5 7/0.53	20	7/0.53	1.5	0.6	1.5	27.8	1230
RE-2X(St)H 30×2×1.5 7/0.53	30	7/0.53	1.5	0.6	1.7	33.7	1560
RE-2X(St)H 50×2×1.5 7/0.53	50	7/0.53	1.5	0.6	2	43	2400
