PE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multicore)
RE-2Y(st)H
APPLICATION
The LSZH sheathed (Part 1 Type 1) cables are generally use for indoor installation and suitablefor wet and damp areas. Generally, the cables are used within industrial process manufacturing
plants for communication, data and voice transmission signals and services. Also used for the
interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke
and fume emission.
STANDARDS
BS 5308 Part 1 Type 1
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

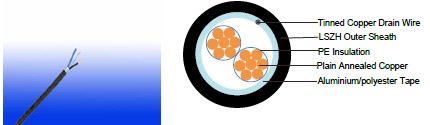

CABLE CONSTRUCTION
Conductor: Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5
mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360.
Insulation: PE compound.
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in
contact with tinned copper drain wire, 0.5mm²
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting
LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon
COLOUR CODE
Insulation Colour: See technical information
Outer Sheath: Black or blue
PHYSICAL AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -20°C – +50°C
Minimum Bending Radius: 6 X Overall Diameter
ELECTRICAL PROPERTIES
| Conductor Area Size | mm 2 | 0.5 | 0.5 | 0.75 | 1 | 1.5 |
| Conductor Stranding | No. x mm | 1 x 0.8 | 16 x 0.2 | 24 x 0.2 | 1 x 1.13 | 7 x 0.53 |
| Conductor Resistance Max. | ohm/km | 36.8 | 39.7 | 26.5 | 18.2 | 12.3 |
| Insulation Resistance Min. | Gohm/ km | 5 | 5 | 5 | 5 | 5 |
| Capacitance Unbalance @ 1 Khz(Pair To Pair Screen) | pF/250m | 250 | ||||
| Max. Mutual Capacitance @ 1 Khz for non OS or OSCables (Except 1 Pair and 2 Pairs) | pF/m | 75 | 75 | 75 | 75 | 85 |
| Max. Mutual Capacitance @ 1 Khz for IS/OS Cables (Include 1 Pair and 2 Pairs) | pF/m | 115 | 115 | 115 | 115 | 115 |
| Max. L/R Ratio For Adjacent Cores(Inductance/Resistance) | μH/ohm | 25 | 25 | 25 | 25 | 40 |
| Test Voltage Core to Core | V | 1000 | 1000 | 1000 | 1000 | 1000 |
| Core to Screen | V | 1000 | 1000 | 1000 | 1000 | 1000 |
CONSTRUCTION PARAMETERS
| Cable Code | No. of Core X Cross Section |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Overall Diameter |
Nominal Sheath Thickness |
Approx. Weight |
|---|---|---|---|---|---|---|
| RE-2Y(St)H 2×1×0.5 | 2x0.5 | 16/0.20 | 0.6 | 0.8 | 7 | 50 |
| RE-2Y(St)H 3×1×0.5 | 3x0.5 | 16/0.20 | 0.6 | 0.8 | 7.3 | 59 |
| RE-2Y(St)H 4×1×0.5 | 4x0.5 | 16/0.20 | 0.6 | 0.8 | 7.9 | 69 |
| RE-2Y(St)H 6×1×0.5 | 6x0.5 | 16/0.20 | 0.6 | 0.9 | 9.3 | 94 |
| RE-2Y(St)H 10×1×0.5 | 10x0.5 | 16/0.20 | 0.6 | 1.1 | 11.9 | 147 |
| RE-2Y(St)H 20×1×0.5 | 20x0.5 | 16/0.20 | 0.6 | 1.2 | 14.9 | 253 |
| RE-2Y(St)H 40×1×0.5 | 40x0.5 | 16/0.20 | 0.6 | 1.3 | 20.1 | 444 |
| RE-2Y(St)H 2×1×0.75 | 2x0.75 | 24/0.20 | 0.6 | 0.8 | 7.3 | 57 |
| RE-2Y(St)H 3×1×0.75 | 3x0.75 | 24/0.20 | 0.6 | 0.8 | 7.7 | 68 |
| RE-2Y(St)H 4×1×0.75 | 4x0.75 | 24/0.20 | 0.6 | 0.8 | 8.3 | 81 |
| RE-2Y(St)H 6×1×0.75 | 6x0.75 | 24/0.20 | 0.6 | 0.9 | 9.9 | 114 |
| RE-2Y(St)H 10×1×0.75 | 10x0.75 | 24/0.20 | 0.6 | 1.1 | 12.7 | 179 |
| RE-2Y(St)H 20×1×0.75 | 20x0.75 | 24/0.20 | 0.6 | 1.2 | 16 | 311 |
| RE-2Y(St)H 40×1×0.75 | 40x0.75 | 24/0.20 | 0.6 | 1.3 | 21.7 | 555 |
| RE-2Y(St)H 2×1×1.5 | 2x1.5 | 7/0.53 | 0.6 | 0.8 | 8.3 | 78 |
| RE-2Y(St)H 3×1×1.5 | 3x1.5 | 7/0.53 | 0.6 | 0.9 | 8.9 | 103 |
| RE-2Y(St)H 4×1×1.5 | 4x1.5 | 7/0.53 | 0.6 | 0.9 | 9.7 | 125 |
| RE-2Y(St)H 6×1×1.5 | 6x1.5 | 7/0.53 | 0.6 | 1.1 | 11.7 | 163 |
| RE-2Y(St)H 10×1×1.5 | 10x1.5 | 7/0.53 | 0.6 | 1.2 | 14.7 | 285 |
| RE-2Y(St)H 20×1×1.5 | 20x1.5 | 7/0.53 | 0.6 | 1.3 | 18.7 | 504 |
| RE-2Y(St)H 40×1×1.5 | 40x1.5 | 7/0.53 | 0.6 | 1.5 | 24.6 | 935 |
