300/500V XLPE Insulated, LSZH Sheathed Power Cables (2-4 Cores)

FTX200 05RZ1MZ1-R (CU/XLPE/LSZH/SWA/LSZH 300/500V Class 2)

APPLICATION

300/500V XLPE Insulated, Galvanized Steel Wire Armoured LSZH Sheathed Power Cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design adapted to IEC 60502-1

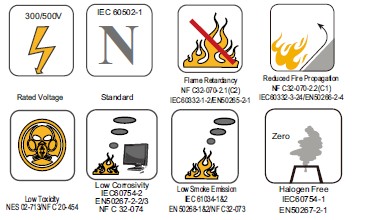

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

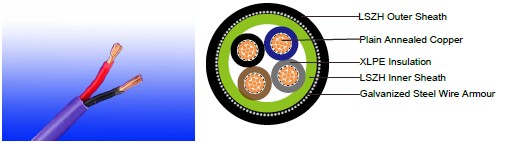

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner Sheath: LSZH Compound
Armouring: Galvanized Steel Wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation Colour as per BS7671

	Witd Eartd Conductor	Witdout Eartd Conductor
2Cores	-	Brown, Blue
3Cores	Yellow/Green, Brown, Blue	Brown, Gray, Black
4Cores	Yellow/Green, Brown, Gray, Black	Brown, Gray, Black, Blue
5Cores	Yellow/Green, Brown, Gray, Black, Blue	Brown, Gray, Black, Blue, Black
Above 5 Cores	Yellow/Green, Black Numbered	Black Numbered

Sheatd Colour: Black (otder colors upon request)

PHYSICAL AND THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C - +90°C
Temperature Range During Installation (Mobile State): -5°C - +50°C
Minimum Bending Radius: 10 X Overall Diameter

ELECTRICAL PROPERTIES

Dielectric test	2000 V r.m.s. x 5' (core/core)
Insulation resistance	≥1000 MΩ x km (at 20°C)
Short circuit temperature	250°C

CONSTRUCTION PARAMETERS

No. of Core X Cross Section	No./Nominal Diameter of Strands	Nominal Insulation Thickness	Diameter Under Armour	Armour Wire Diameter	Nominal Overall Diameter	Approx. Weight
	mm	mm	mm			kg/km
2x1.5	7/0.53	0.5	6.5	0.9	11.2	246
2x2.5	7/0.67	0.5	7.3	0.9	12	292
2x4	7/0.85	0.5	8.4	0.9	13.1	360
3x1.5	7/0.53	0.5	6.9	0.9	11.6	275
3x2.5	7/0.67	0.5	7.8	0.9	12.5	331
3x4	7/0.85	0.5	9	0.9	13.7	413
4x1.5	7/0.53	0.5	7.6	0.9	12.3	309
4x2.5	7/0.67	0.5	8.6	0.9	13.3	380
4x4	7/0.85	0.5	9.9	0.9	14.6	479
