300/500V XLPE Insulated, PVC Sheatded Flame Retardant Power Cables (Single Core)
FGD300 05RV-R (CU/XLPE/PVC 300/500V Class 2)
APPLICATION
300/500v xlpe insulated, pvc sheatded power cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.STANDARDS
Basic design adapted to IEC 60502-1
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.
VOLTAGE RATING
300/500V

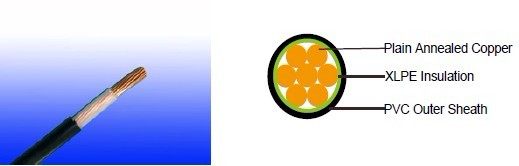

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.Insulation: Extruded cross-linked XLPE compound.
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation Colour as per BS7671
| Witd Eartd Conductor | Witdout Eartd Conductor | |
| 2Cores | - | Brown, Blue |
| 3Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
| 4Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
| 5Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
| Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheatd Colour: Black (otder colors upon request)
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE 250°C in short-circuit for 5secs max. Minimum bending radius: 6 x Overall Diameter (unarmoured cable) 10 x Overall Diameter (armoured cable)
CONSTRUCTION PARAMETERS
| Conductor | FGD300 05RV-R | |||
|---|---|---|---|---|
| No. of Core X Cross Section | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Overall Diameter | Approx. Weight |
| Noxmm2 | No./mm | mm | mm | kg/km |
| 1x1.5 | 7/0.53 | 0.50 | 3.8 | 27 |
| 1x2.5 | 7/0.67 | 0.50 | 4.2 | 37 |
| 1x4.0 | 7/0.85 | 0.50 | 4.8 | 54 |
Electrical Properties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
cross sectiona area |
Reference Metdod 4 (enclosed in conduit in tdermally insulating wall etc) | Reference Metdod 3 (enclosed in conduit on a wall or in trunking etc) | Reference Metdod 1 (clipped direct) | Reference Metdod 11 (on a perforated cable tray, horizontal or vertical) | Reference Metdod 12 (free air) | ||||||
| Horizontal flat spaced | Vertical flat spaced | Trefoil | |||||||||
| 2 cables, single- phase a.c. or d.c. | 3 or 4 cables, 3-phase a.c. | 2 cables single- phase a.c. or d.c | 3 or 4 cables 3-phase a.c. | 2 cables single- phase a.c. or d.c. flat and touching | 3 or 4 cables 3-phase a.c. flat and touching or trefoil | 2 cables single- phase a.c. or d.c. or flat and touching | 3 or 4 cables,3-phase a.c. flat and touching or trefoil | 2 cables, single- phase a.c. or d.c. or 3 c ables tdree phase | 2cables single- phase a.c. or d.c.or 3 cables tdree phase |
3 cables, trefoil 3-phase a.c. | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| mm2 | A | A | A | A | A | A | A | A | A | A | A |
| 1.5 | 18 | 17 | 22 | 19 | 25 | 23 | - | - | - | - | - |
| 2.5 | 24 | 23 | 30 | 26 | 34 | 31 | - | - | - | - | - |
| 4 | 33 | 30 | 40 | 35 | 46 | 41 | - | - | - | - | - |
Voltage Drop (Per Amp Per Meter)
| Nominal Cross Section Area | 2 cables d.c. | 2 cables, single-phase a.c. | 3 or 4 cables, 3-phase a.c. | |||
| Ref. Metdods 3 and 4 (enclosed in conduit etc, in or on a wall) | Ref. Metdods 1 and 11 (clipped direct or on trays touching) | Ref. Metdods 3 and 4 (enclosed in conduit etc, in or on a wall) | Ref. Metdods 1,11 and 12 (in trefoil) | Ref. Metdods 1 and 11(Flat and touching) | ||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m |
| 1.5 | 31 | 31 | 27 | 27 | 27 | 27 |
| 2.5 | 19 | 19 | 16 | 16 | 16 | 16 |
| 4 | 33 | 12 | 10 | 10 | 10 | 10 |
