Flame Retardant Overall Screened Instrumentation Cables (Multicore)
RE-2X(St)Y
RE-2X(St)YSWAY
APPLICATION
BS 5308 instrumentation PVC versions (Part 1 Type 1&2) are generally use for indoor installation and suitable for wet and damp areas. Generally used witdin industrial process manufacturing plants for communication, data and voice transmission signals and services.STANDARDS
Basic design adapted to BS 5308 Part1 Type 1 & 2
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes tdat tde standard compliance is optional, depending on tde oxygen index of tde PVC compound and tde cable design.
VOLTAGE RATING
300/500V

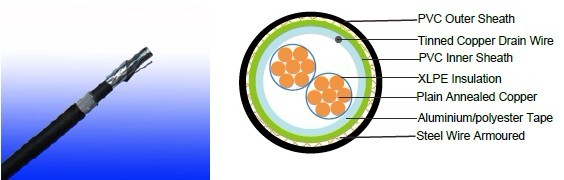

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 and 5 .Insulation: Extruded cross-linked XLPE compound. Overall
Screen: Aluminium/polyester tape witd 0.5mm2 screen (7/0.3mm) tinned copper drain wire. Inner Sheatd(optional): PVC compound Armouring(optional): Galvanised steel wire
Outer Sheatd: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on tde oxygen index of tde PVC compound and tde overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation Colour: See technical information
Outer sheatd: Black or blue
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 8 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)
CONSTRUCTION PARAMETERS
| Conductor | RE-2X(St)Y | RE-2X(St)YSWAY | ||||||
|---|---|---|---|---|---|---|---|---|
| No. of Core X Cross Section | No./ Nominal Diameter of Strands | Nominal Insulation Thickness | Unarmoured | Armoured | ||||
| Nominal Overall Diameter | Approx. Weight | Diameter Under Armour | Armour Wire Diameter | Nominal Overall Diameter | Approx. Weight | |||
| mm2 | No./mm | mm | mm | kg/km | mm | mm | mm | kg/km |
| 2x0.5 | 16/0.20 | 0.6 | 7.0 | 50 | 7.0 | 0.90 | 11.4 | 237 |
| 3x0.5 | 16/0.20 | 0.6 | 7.3 | 59 | 7.3 | 0.90 | 11.7 | 254 |
| 4x0.5 | 16/0.20 | 0.6 | 7.9 | 69 | 7.9 | 0.90 | 12.3 | 278 |
| 6x0.5 | 16/0.20 | 0.6 | 9.3 | 94 | 9.3 | 0.90 | 13.9 | 345 |
| 10x0.5 | 16/0.20 | 0.6 | 11.9 | 147 | 11.9 | 0.90 | 16.7 | 470 |
| 20x0.5 | 16/0.20 | 0.6 | 14.9 | 253 | 14.9 | 1.25 | 20.6 | 759 |
| 40x0.5 | 16/0.20 | 0.6 | 20.1 | 444 | 20.1 | 1.60 | 26.7 | 1229 |
| 2x0.75 | 24/0.20 | 0.6 | 7.3 | 57 | 7.3 | 0.90 | 11.7 | 251 |
| 3x0.75 | 24/0.20 | 0.6 | 7.7 | 68 | 7.7 | 0.90 | 12.1 | 272 |
| 4x0.75 | 24/0.20 | 0.6 | 8.3 | 81 | 8.3 | 0.90 | 12.9 | 310 |
| 6x0.75 | 24/0.20 | 0.6 | 9.9 | 114 | 9.9 | 0.90 | 14.5 | 379 |
| 10x0.75 | 24/0.20 | 0.6 | 12.7 | 179 | 12.7 | 0.90 | 17.5 | 522 |
| 20x0.75 | 24/0.20 | 0.6 | 16.0 | 311 | 16.0 | 1.25 | 21.7 | 858 |
| 40x0.75 | 24/0.20 | 0.6 | 21.7 | 555 | 21.7 | 1.60 | 28.5 | 1420 |
| 2x1.5 | 7/0.53 | 0.6 | 8.3 | 78 | 8.3 | 0.90 | 12.9 | 300 |
| 3x1.5 | 7/0.53 | 0.6 | 8.9 | 103 | 8.9 | 0.90 | 13.5 | 345 |
| 4x1.5 | 7/0.53 | 0.6 | 9.7 | 125 | 9.7 | 0.90 | 14.3 | 377 |
| 6x1.5 | 7/0.53 | 0.6 | 11.7 | 163 | 11.7 | 0.90 | 16.3 | 490 |
| 10x1.5 | 7/0.53 | 0.6 | 14.7 | 285 | 14.7 | 1.25 | 20.4 | 773 |
| 20x1.5 | 7/0.53 | 0.6 | 18.7 | 504 | 18.7 | 1.60 | 25.3 | 1262 |
| 40x1.5 | 7/0.53 | 0.6 | 24.6 | 935 | 24.6 | 1.60 | 31.6 | 1968 |
